RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRFC011-100RF ANT 892MHZ/1.9GHZ FLAT PATCH |
1,912 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -12dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
1462000001RF ANT 829MHZ/2.2GHZ CHIP SLD |
5,045 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Chip | 2 | - | -5dB | 4.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE |
|
1461530200RF ANT 2.4/5GHZ FLAT PATCH 200MM |
706 |
|
Datasheet |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.6dBi, 4dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
ANT-LPC-FPC-100RF ANT LTE CBRS FLEX ADHES UFL |
13,145 |
|
Datasheet |
FPC | Bag | Active | Cellular, Navigation | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | -3.7dB, -11.7dB, -3.6dB, -5.1dB, -5.8dB, -9.5dB | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.010" (0.20mm) | General Purpose |
|
FXP73.07.0100ARF ANT 2.4GHZ FLAT PATCH IPEX |
10,602 |
|
Datasheet |
Blue Diamond | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | - | 2.5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-916-JJB-HT-TRF ANT 916MHZ DOME SLD TH |
11,803 |
|
Datasheet |
JJB-HT | Strip | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | -12.3dBi | - | - | Solder | - | - | - | Through Hole | 0.480" (12.20mm) | ISM, LoRa, Sensor Networks, SigFox |
|
1461860050RF ANT 1.561/1.575GHZ FLAT 50MM |
5,377 |
|
Datasheet |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 3.15dBi, 4.25dBi, 5dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
1052630002RF ANT 850MHZ/900MHZ FLAT 150MM |
3,463 |
|
Datasheet |
105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -6.8dB, -7.5dB, -7.7dB, -8.5dB, -10.5dB, -11dB | 1.5dBi, 1.7dBi, 1.8dBi, 2.1dBi, 2.2dBi, 3dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|

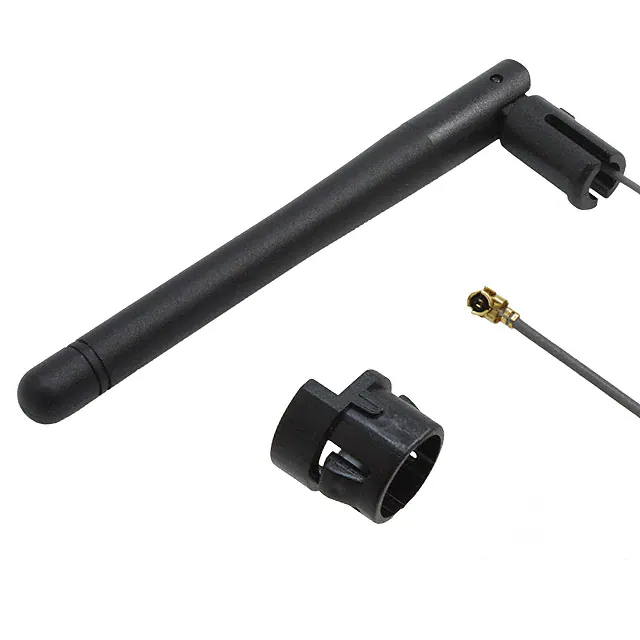

W1049B050RF ANT 2.4GHZ WHIP/TILT CONN MT |
408 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 127mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AH168M245001-TRF ANT BLUETOOTH/WLAN/ZIGBEE SMD |
4,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
PCS.06.ARF ANT 700MHZ/850MHZ CHIP SLD |
5,699 |
|
Datasheet |
Havok | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 7 | - | -7dB, -6dB | -0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
W1039B030ANT EXT 2.4-2.5GHZ 76MM U.FL |
4,268 |
|
Datasheet |
Stick Antenna | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Whip, Tilt | 2 | 2 | - | 1dBi, 2dBi | 2 W | Cable - 76mm | U.FL (UMCC), I-PEX MHF1 | IP20 | - | - | Connector Mount | 7.138" (181.30mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
P522304RF ANT 850MHZ/900MHZ CHIP SLD |
7,543 |
|
Datasheet |
Prestta™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | 2.5 | - | 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|
ANT-2.4-FPC-LH100UFANT 2.4 FPC 45X7 100MM CBL UFL |
1,988 |
|
Datasheet |
ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANTX100P001BWPEN3RF ANT 850MHZ/900MHZ FLAT PATCH |
8,547 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 3 | - | 4.2dBi, 5.1dBi, 3.9dBi, 5dBi, 4.5dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.037" (0.95mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3908B0100RF ANT 1.585GHZ FLAT PATCH ADH |
5,797 |
|
Datasheet |
GEMINI | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.56GHz ~ 1.61GHz | Flat Patch | 1 | - | -10dB | 0.3dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, Galileo, GLONASS, GPS |
|
W3538B0150RF ANT 850/900MHZ PCB TRAC 150MM |
5,569 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|
ANT-5GLFPC1-UFL-100RF ANT <960MHZ 5G FLEX ADHES UFL |
999 |
|
Datasheet |
FPC | Bag | Active | Cellular | Wide Band | 700MHz, 800MHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz | Flat Patch | 2 | 6.8, 3.7 | -2.5dB, -4.8dB | -3.2dBi, -3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.010" (0.20mm) | 5G, Cellular, LTE |
|
0479500011RF ANT 2.4/5GHZ PCB TRC CAB .61" |
1,356 |
|
Datasheet |
47950 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 2.27dBi, 4.9dBi | 2 W | Cable - 100mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-5GWWS6-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
1,134 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.1, 3.9 | - | 5.3dBi, 6dBi, 6dBi, 7.1dBi, 7dBi, 8.9dBi, 8.5dBi, 5.5dBi, 3.9dBi, 4.9dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 0.433" (11.00mm) | 5G, LTE |
