Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
244NQ045-1DIODE SCHOTTKY 45V PRM1-1 |
6,814 |
|
Datasheet |
- | HALF-PAK | Bulk | Active | Schottky | 45 V | - | 550 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | 10300pF @ 5V, 1MHz | - | - | Chassis Mount | PRM1-1 (Half Pak Module) | -55°C ~ 125°C |
|
LSIC2SD170B25DIODE SIL CARB 1.7KV 70A TO247-2 |
4,671 |
|
Datasheet |
- | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 70A | 1.8 V @ 25 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1700 V | 1860pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GB02SHT06-46DIODE SIL CARBIDE 600V 4A TO46 |
8,914 |
|
Datasheet |
- | TO-206AB, TO-46-3 Metal Can | Bulk | Active | SiC (Silicon Carbide) Schottky | 600 V | 4A | 1.6 V @ 1 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 600 V | 76pF @ 1V, 1MHz | - | - | Through Hole | TO-46 | -55°C ~ 225°C |
|
150KR60ADIODE GP REV 600V 150A DO205AA |
4,556 |
|
Datasheet |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 150A | 1.33 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|

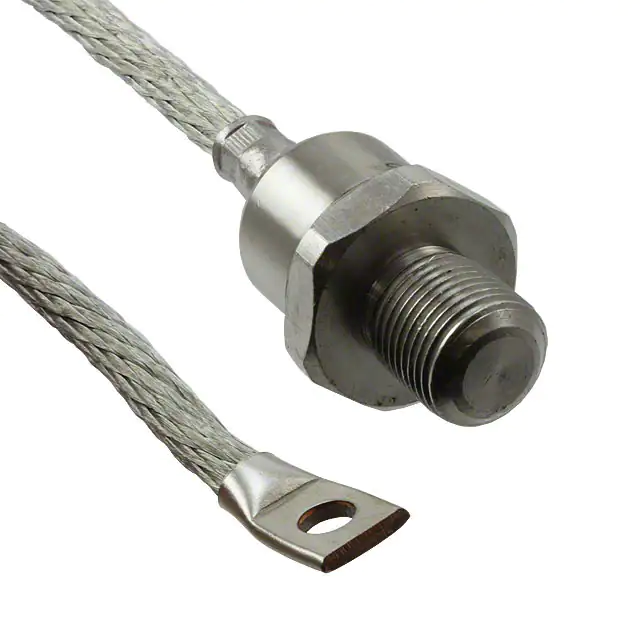

S300YRDIODE GP REV 1.6KV 300A DO9 |
2,041 |
|
Datasheet |
- | DO-205AB, DO-9, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 300A | 1.2 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-9 | -60°C ~ 180°C |
|
S380YDIODE GP 1.6KV 380A DO205AB DO9 |
1 |
|
Datasheet |
- | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1600 V | 380A | 1.2 V @ 380 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -60°C ~ 180°C |
|
D1600U45X122XPSA1DIODE GP 4.5KV 1560A D12026K-1 |
2,536 |
|
Datasheet |
- | DO-200AE | Tray | Active | Standard | 4500 V | 1560A | 4.3 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | - | 150 mA @ 4500 V | - | - | - | Chassis Mount | BG-D12026K-1 | 140°C (Max) |
|
D4600U45X172XPSA1DIODE GP 4.5KV 4450A D17226K-1 |
1 |
|
Datasheet |
- | DO-200AE | Tray | Active | Standard | 4500 V | 4450A | 2 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 mA @ 4500 V | - | - | - | Chassis Mount | BG-D17226K-1 | 140°C (Max) |
|
SDM1A40CSP-7DIODE SCHOTT 40V 1A X3-WLB1006-2 |
4,559 |
|
Datasheet |
- | 2-XDFN | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 560 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 40 V | 35pF @ 4V, 1MHz | - | - | Surface Mount | X3-WLB1006-2 | -55°C ~ 150°C |
|
FR1MDIODE GEN PURP 1000V 1A SMA |
50 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | - | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
|
|
FR1DDIODE GEN PURP 200V 1A SMA |
5,185 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 200 V | - | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
|
|
SL04XSL04/SOD123FL/SOD2 |
2,249 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBR130LSFXMBR130LSF/SOD123FL/SOD2 |
9,690 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SS1FL4XSS1FL4/SOD123FL/SOD2 |
7,704 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBR140ESFXMBR140ESF/SOD123FL/SOD2 |
7,452 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SS1FN6XSS1FN6/SOD123FL/SOD2 |
4,147 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SS1FH6XSS1FH6/SOD123FL/SOD2 |
4,381 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SS1FL3XSS1FL3/SOD123FL/SOD2 |
7,462 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBR120VLSFXMBR120VLSF/SOD123FL/SOD2 |
6,169 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SL02XSL02/SOD123FL/SOD2 |
6,460 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
