Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3B25AH/328SWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
G3B | Bulk | Obsolete | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Low Temperature Lubricant | - | -30°C ~ 85°C |
|
|
9533NCDKSWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Front Panel Sealing | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
|
3SS-WSP9-M6-RESWITCH |
0 |
|
- |
3S | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
|
PV2H240SS-M01SWITCH PB SPST-NO 2A 48V |
0 |
|
Datasheet |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
38GWSP8V2RTSWITCH PUSH SUBMINI SPDT,O-O,VB, |
0 |
|
Datasheet |
38G | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Sealed - Fully | - | -30°C ~ 85°C |
|
|
TP32W003050SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
TP33P018000SWITCH PUSH SPST-NO 0.5A 48V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 48 V | 48 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
8161SHZQE1SWITCH PUSHBUTTON SPDT 6A 120V |
0 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8168SHCBE9SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
2-1825097-4SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
TP32MW03000SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | Wire Wrap | - | Sealed | - | -30°C ~ 85°C |
|
|
301V1BEPUSHBUTTON SWITCH 300 |
0 |
|
- |
300 | Bulk | Active | Through Hole, Right Angle | Standard | SPST | Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
9433NCDBSWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|

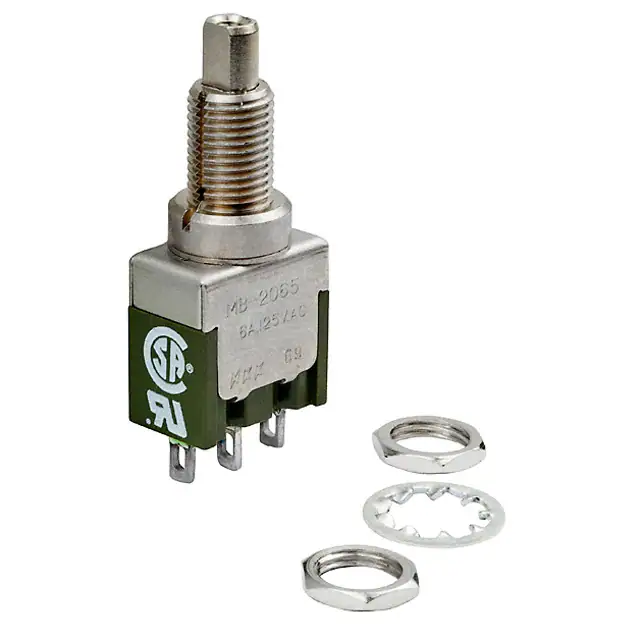

MB2065SS1W01/UCSWITCH PUSHBUTTON SPDT 6A 125V |
22 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
1825404-1SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
- |
MPA | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -20°C ~ 70°C |
|
|
SETL WH RD AU OASWITCH PUSH SPDT 0.01A 24V |
0 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | White | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
LP16OA1ASTWBSWITCH PUSH SPST-NO 0.1A 20V |
0 |
|
Datasheet |
LP16 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 20 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3 VDC | PC Pin | - | - | - | -5°C ~ 60°C |
|
LP16OA1BSTWBSWITCH PUSH SPST-NO 0.1A 20V |
0 |
|
Datasheet |
LP16 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 20 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3 VDC | PC Pin | - | - | - | -5°C ~ 60°C |
|
EP11SD1WPESWITCH PUSHBUTTON SPST-NO |
0 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | IP57 - Dust Protected, Waterproof | - | - | -30°C ~ 85°C |
|
|
TP32W003000SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
