Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700CSP7B60M1RESwitches |
0 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Solder, Quick Connect - 0.079" (2.0mm) | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
8534MZBE2SWITCH PUSH SPST-NC 0.4VA 20V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8534SZBE2SWITCH PUSH SPST-NC 0.4VA 20V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
AB15CWSUBMINIATURE PUSHBUTTON/PC |
0 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
104-0101-033PUSHBUTTON SWITCHES |
0 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

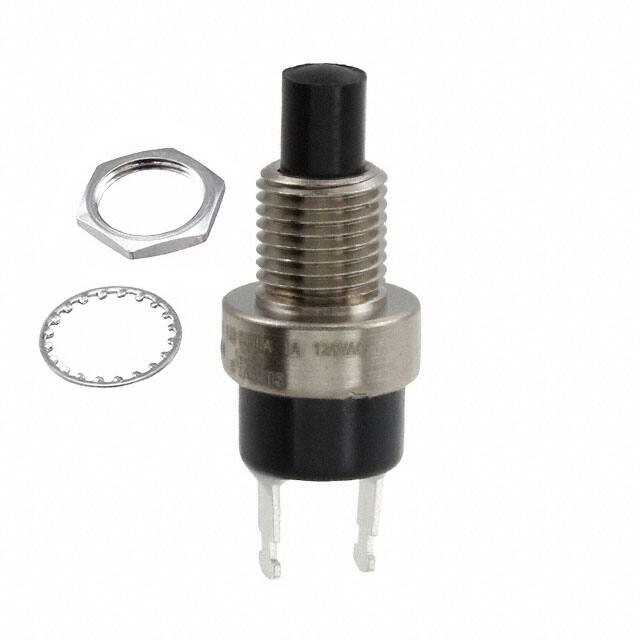

8534SZQE2SWITCH PUSH SPST-NC 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8531TCQE3SWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
1.10.001.151/0301SWITCH PUSH SPST-NC 0.7A 250V |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 700mA (AC) | 250 V | - | Round, Button | No Marking | Red | - | - | Screw Terminal | IP40 | - | Circular - 15.20mm Dia | -28°C ~ 85°C |
|
|
1.10.001.151/0104SWITCH PUSH SPST-NC 0.7A 250V |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 700mA (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Screw Terminal | IP40 | - | Circular - 15.20mm Dia | -28°C ~ 85°C |
|
|
1.10.001.161/0104MOMENTARY PUSHBUTTON OPAQUE BLAC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1.10.001.161/0301MOMENTARY PUSHBUTTON OPAQUE RED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
38DSP14BDM1QTSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
38D | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
38CSP71B10M7GTSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
38C | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
CTHS15CIC04ALARMSWITCH PUSH CAPACITIVE ILLUM SQ |
0 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Alarm Symbol | Black | LED, White | 3.2 VDC | PC Pin | - | - | - | - |
|
CTHS15CIC06ALARMSWITCH PUSH CAPACITIVE ILLUM SQ |
0 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Alarm Symbol | Black | LED, Blue | 3.2 VDC | PC Pin | - | - | - | - |
|
|
3S1-SP9-B8-M1-RESWITCH |
0 |
|
- |
3S | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Black | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
|
3S1-SP9-B5-M1-RESWITCH |
0 |
|
- |
3S | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Black | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
|
ULP22EEP1QSSCL1GRNREDSWITCH PUSHBUTTON DPDT 0.5A 250V |
0 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 200mA (AC), 500mA (DC) | 250 V | 25 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
TP32P00850042SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
.jpg)
|
GP11MSA1KESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
GP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
