Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E112SD1APESWITCH PUSHBUTTON SPDT |
0 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 70°C |
|
9232WWCDSWITCH PUSH SPST-NC 0.1A 30V |
0 |
|
- |
9000 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

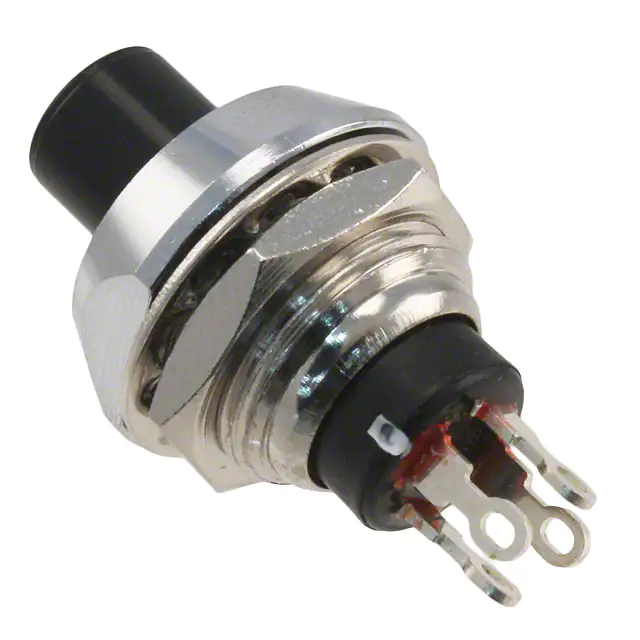

MSPF101BC0SWITCH PB DPST-NO/NC 500MA 125V |
0 |
|
Datasheet |
MSPF | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom, Off-Mom | 500mA (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|
|
LP11OA1NCSGBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Blue/Green | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP11OA1TCSGBSWITCH PB SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear | LED, Blue/Green | 3.1, 3.3 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
SF 4U 72 EESWITCH PUSHBUTTON |
0 |
|
- |
F | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
SCB15S10A-3CSWITCH PUSHBUTTON SPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15S10A-3FSWITCH PUSHBUTTON SPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15S10A-3GSWITCH PUSHBUTTON SPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15S10A-3HSWITCH PUSHBUTTON SPDT 10A 125V |
0 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Gray | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
E112SYWQESWITCH PUSH SPDT |
0 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
TP12LTZGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
3SS-WSP9-M7-KESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
3SS | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Sealed - Fully | - | -30°C ~ 85°C |
|
|
3SS-WSP9-M6-KESWITCH |
0 |
|
- |
3S | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
39-424 BLKSWITCH PUSH SPST-NO 0.15A 28V |
0 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Overtravel | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
|
8125SDV3BEPUSHBUTTON SWITCHES PUSHBUTTON |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
APB2MGRASWITCH PUSH DPST-NO 50MA 48V |
0 |
|
Datasheet |
APB | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
|
1241.1113.6096SWITCH PUSH SPST-NO 125MA 48V |
0 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Gray | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1113.7091SWITCH PUSH SPST-NO 125MA 48V |
0 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Yellow | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1112.7095SWITCH PUSH SPST-NO 125MA 48V |
0 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
