Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB5-AA3BB124V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH, 12 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 700mA (DC) | 220 V | 24 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
SW-PB5-AB3BR16V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH, 12 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 100mA (DC) | 220 V | 220 V | Square, Button | - | Red | LED, Red | 6 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
SW-PB5-AB3BR1110V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH, 12 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 100mA (DC) | 220 V | 220 V | Square, Button | - | Red | LED, Red | 110 VAC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
SW-PB5-AA3BY112V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH, 12 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 700mA (DC) | 220 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 12 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
SW-PB5-AA3BO124V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH, 12 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 700mA (DC) | 220 V | 24 V | Round, Button | - | Orange | LED, Orange | 24 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
SW-PB5-AB3BG12.8V-IP40-8INDUSTRIAL PUSHBUTTON SWITCH, 12 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 500mA (AC), 100mA (DC) | 220 V | 220 V | Square, Button | - | Green | LED, Green | 2.8 VAC/DC | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

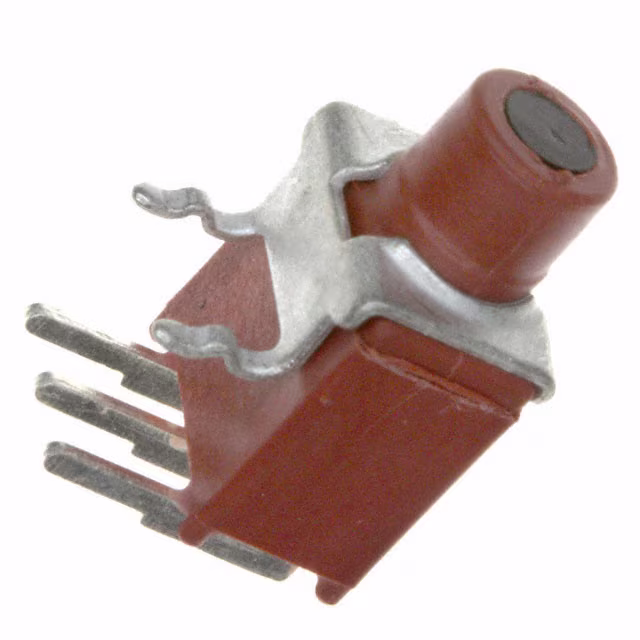

EP12FPD1AQESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
CTHS15CIC01ALARMSWITCH PUSH CAPACITIVE ILLUM SQ |
0 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Alarm Symbol | Black | LED, Red | 3.2 VDC | PC Pin | - | - | - | - |
|
CTHS15CIC01ARROWSWITCH PUSH CAPACITIVE ILLUM SQ |
0 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Arrow, Right | Black | LED, Red | 3.2 VDC | PC Pin | - | - | - | - |
|
|
810KMCBSWITCH PUSH SPDT 0.4VA 20V |
0 |
|
- |
800 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
RP8400B2M1CEBLKWHTGRNSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | White | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
8125SY4CBELinear IC's |
0 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
TP11SH8AVQESWITCH PUSH SPST-NO 1A 120V |
8 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
1.10.001.151/0205MOMENTARY PUSHBUTTON OPAQUE WHIT |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H8350ABBRPUSH BUTTON SWITCH |
0 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | On-Off | 12A (AC) | 250 V | - | Rectangular, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.30mm x 12.90mm | - |
|
|
ABN4B-YN SERIES MUSHROOM BUTTON YELLO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABN4GB-BN SERIES (30MM) BLACK JUMBO PU |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABN4GB-RN SERIES (30MM) RED JUMBO PUSH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
38FSP9B9M2RTSWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
38F | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
700DP7B20M6QESWITCH PUSHBUTTON DPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
