Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700DP7B21M6QESWITCH PUSHBUTTON DPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
ULP12OAM1QPMCL1REDGRNSWITCH PUSHBUTTON SPDT 0.5A 250V |
0 |
|
Datasheet |
ULP | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 200mA (AC), 500mA (DC) | 250 V | 25 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | - | Solder Lug | - | Tactile Feedback | Rectangular - 17.70mm x 15.80mm | -20°C ~ 70°C |
|
|
RP8300B2M1CEBLKGRNNILSwitches |
0 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
8532MCBE2SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
38CSP7B20V3RTSWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
38C | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
700CSP7B71VS2QESWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700C | Bulk | Active | Through Hole | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
9187-02PUSH BUTTON MOM SW RED |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
|
EP11SD1CGEPUSHBUTTON SWITCHES |
0 |
|
Datasheet |
EP | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | - | - | -30°C ~ 85°C |
|
|
RP8400B2M1CEBLKBLKREDGRNSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | Black | LED, Green/Red | 2, 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
103-2002-001Linear IC's |
0 |
|
- |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | - | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
RP8400B2M1CEBLKBLKGRNSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
RP8200B2M1CEBLKREDREDSWITCH PB SPST 0.1A 24V |
0 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | - | Red | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
TPA11CGPC6SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Blue | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
.jpg)
|
EP12SD1SAKESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
.jpg)
|
EP12FPD1SAKESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

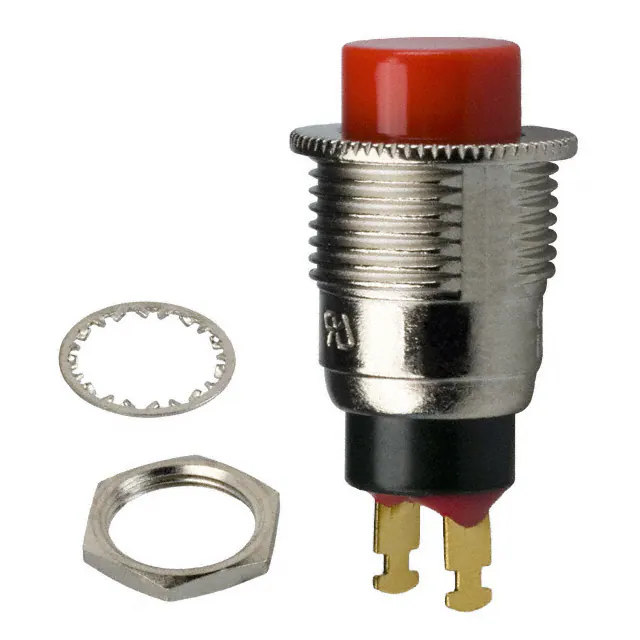

8532T1ZBE3SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
|
3SS-WSP9-M2-RESWITCH |
0 |
|
- |
3S | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
|
PV5S64012GSWITCH PUSH SPST-NO 2A 36V |
0 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
700DP7B20VS2QESWITCH PUSHBUTTON DPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
AB11BH-FBSWITCH PUSH SPST-NO 0.4VA 28V |
0 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
