Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700ADP7B21M7QESWITCH PUSHBUTTON DPDT 3A 120V |
0 |
|
Datasheet |
700A | Tray | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
38CSP7AP2M1QTSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
38C | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
.jpg)
|
GPB001PA06A1UBSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.20mm Dia | -20°C ~ 65°C |
|
|
RP8200B2M1CEBLKBLKYELSWITCH PB SPST 0.1A 24V |
0 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | - | Black | LED, Yellow | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
RP8200B2M1CEBLKBLUREDSWITCH PB SPST 0.1A 24V |
0 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | - | Blue | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
700CSP7B60VS3QEHSWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
700C | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
TP33WS83565SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
SMT TP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | - | Washable in solvent or degreaser | - | -40°C ~ 85°C |
|

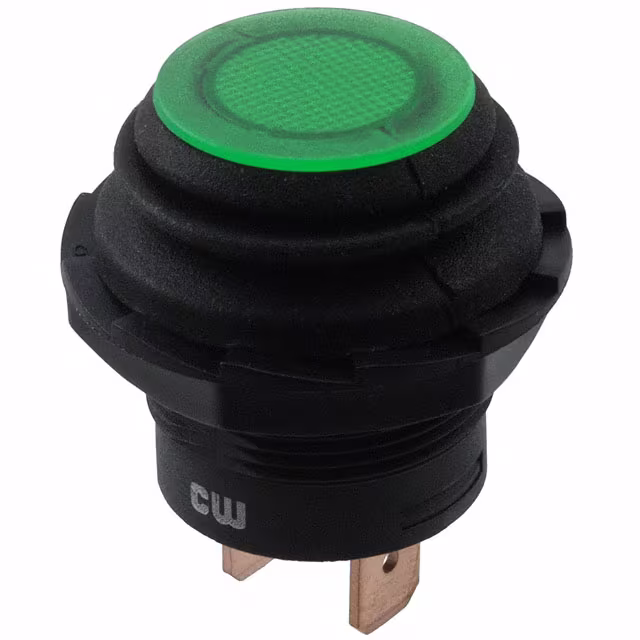

GPB553A201BGSWITCH PUSH SPST-NO 10A 14V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

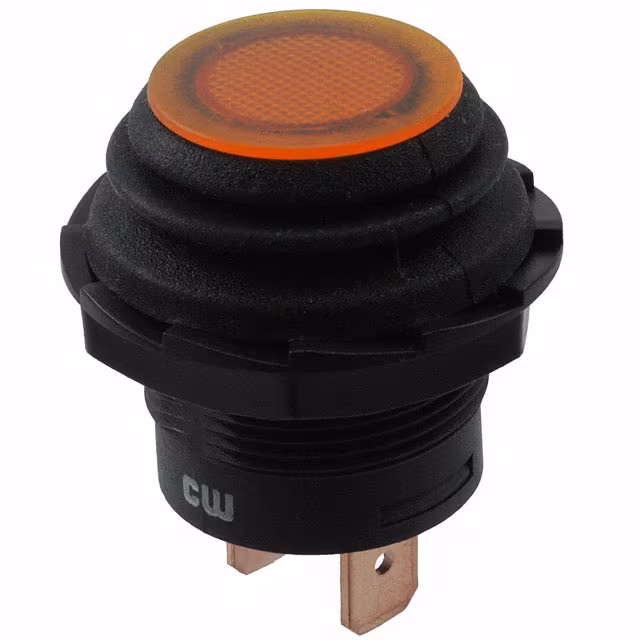

GPB553A201BASWITCH PUSH SPST-NO 10A 14V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Amber | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

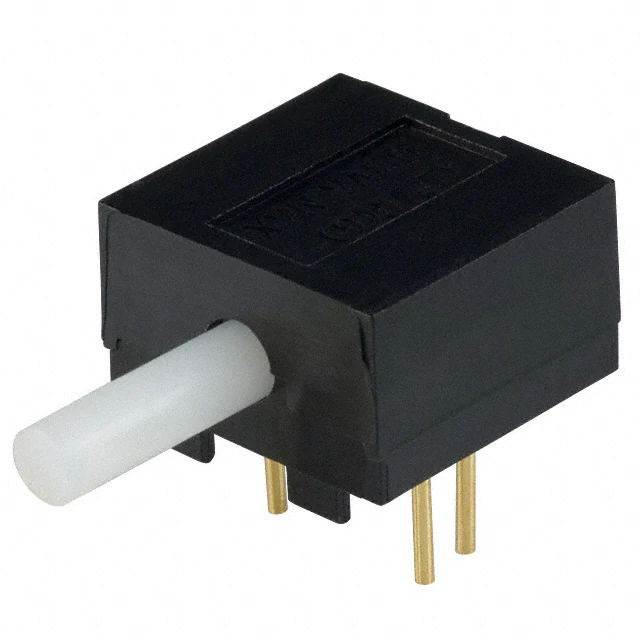

KM1202A08BESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
KM | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
FS5700DPLT2B2M1QEHSWITCH PUSHBUTTON DPDT 1A 9V |
0 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
|
700SP7B10M7QEC2BLKSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
700CSP7B60M2RESWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
1412N8C3PB SWITCH 1400N SNAP IN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1413N8C7PB SWITCH 1400N SNAP IN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LP11OA1TASRBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Blue/Red | 2.2, 3.5 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
LP11OA1NCSRBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Blue/Red | 2.2, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP11OA1TCSRBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Blue/Red | 2.2, 3.5 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
LP11OA1NASRBSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Blue/Red | 2.2, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
ULP12EEP1QLSCL1GRNBLUSWITCH PB SPDT 0.5A 25V |
0 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 500mA (DC) | 250 V | 25 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green | 2.1, 3.3 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
