Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTR2-01-L5SWITCH PUSH SPST-NO 10MA 12V |
0 |
|
Datasheet |
LTR | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
800AWSP8VS2QESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
800A | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
Y54D10191WH0XFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | LED, White | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
700ADP7B10M2QEHSwitches |
0 |
|
Datasheet |
700A | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B8M7QESWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800AWSP8M6RESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
800A | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

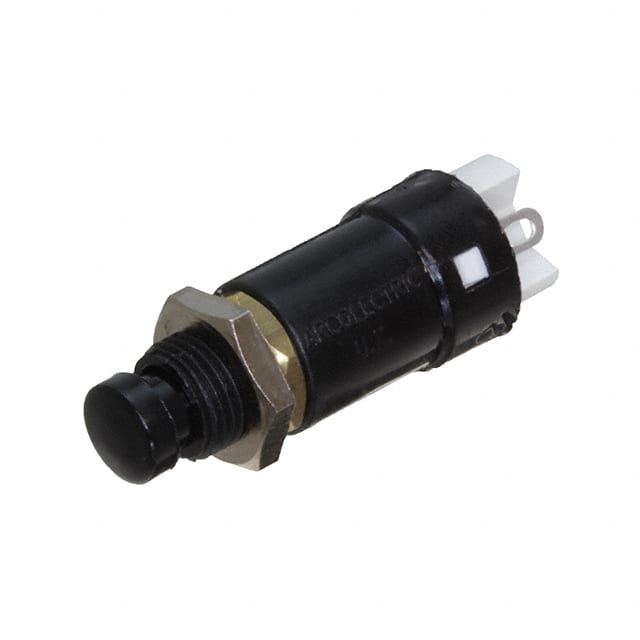

T0918SOAAASWITCH PB SP SPST-NC 500MA BLK |
24 |
|
Datasheet |
0918 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 500mA (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 7.10mm Dia | - |
|
REL BAR F7X17.5 NICKEL PLTDSWITCH PUSHBUTTON |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
700ASP7B10M6RECUTACT173SWITCH PB SPDT 0.4VA 20V |
0 |
|
Datasheet |
700A | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
MSP103CSWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
MSP3 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
|
700ASP7B10M6REHSwitches |
0 |
|
Datasheet |
700A | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
H201SWITCH PUSH SPST-NO 0.25A 28V |
0 |
|
- |
H-200 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | - | 250mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 15.87mm Dia | - |
|
|
H101SWITCH PUSH SPST-NO 0.25A 28V |
0 |
|
- |
H-100 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | - | 250mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 15.87mm Dia | - |
|
|
700SP7B11M51REHSWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
CFPB-1CC-3O1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Orange | LED, Orange | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
CFPB-1CC-3O2SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Orange | LED, Orange | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5B1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
CFPB-1CC-5B2SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5G1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5Y1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Yellow | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
