Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700SP7B11M7REC2BLKSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700SP7B11M7QEC2WHTSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP8B6VS2QEC2BLKSWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
LP15S1WHTGRN-NSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP15S1WHTRED-NSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Red | 1.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP15S1BLKGRNNSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Black | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
700ASP7B10M7QEHSwitches |
0 |
|
Datasheet |
700A | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
LP15R1WHTWHT-NSWITCH PB SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | - | White | LED, White | 2.8 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP8B10M6RESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700CSP7B60M6QEHSwitches |
0 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
700SP7B10M7RESWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800BWSP9SM6QESWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
800B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
Y54B20130000XFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
Y54D203614C1XFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
Y54D20161000XFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
Y54B20161000XFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|

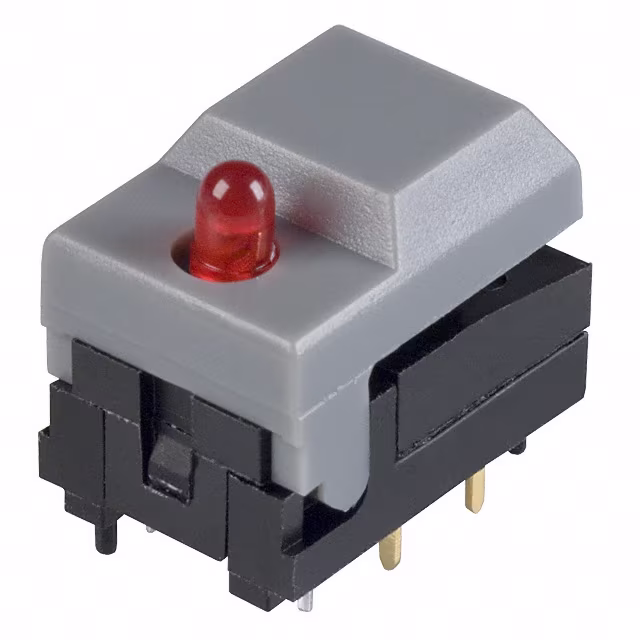

5501MGRYREDSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5511MWHTGRNSWITCH PUSH SPDT 0.03A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MBLUGRNSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Blue | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5511MBLKYELSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
