Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP8400B2M1CEBLKWHTNILSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
311050008XX |
0 |
|
- |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | - | Gold | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 65°C |
|
|
PB2L42D1A23SWITCH PB DPST 20A 125V |
0 |
|
Datasheet |
PB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | - | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|
|
5511MBLKBLUSWITCH PB SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | - | Black | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
CFPB-1CC-2R1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
800SP8B5M7QESWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
LTM2-01-L2SPST OFF-(ON)SILVER METAL CONTAC |
0 |
|
Datasheet |
LTM | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 48 V | Plunger for Cap | No Marking | - | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
CFPB-1CC-3O6SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Orange | LED, Orange | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
CFPB-1CC-3O9SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Orange | LED, Orange | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5B6SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
CFPB-1CC-5B9SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5Y6SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Yellow | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
CFPB-1CC-5Y9SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Yellow | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
700SP7B10M51QEHSWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

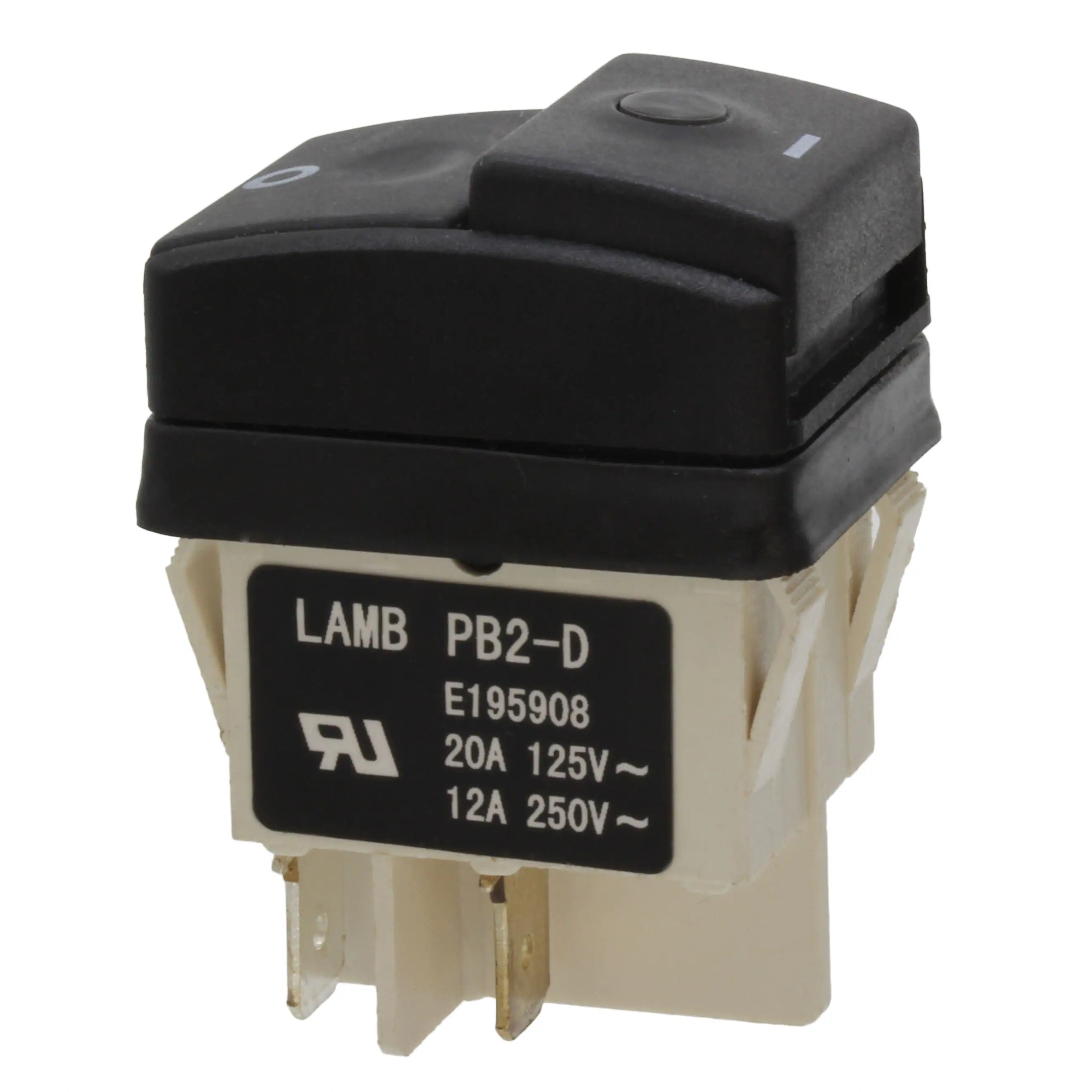

PB242D212R-207TSWITCH PUSHBUTTON DPST 20A 125V |
0 |
|
Datasheet |
PB2, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|
|
K12P BK 1 5N 1RSWITCH PUSH SPST-NC 0.1A 30V |
0 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
MSP103C0SWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
MSP3 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
|
700SP7B10M7CEHSwitches |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | - | - | - | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700SP7B11M7QEHSWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
PB241D1A21SWITCH PB SPST 20A 125V |
0 |
|
Datasheet |
PB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | - | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
