Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WBL2UOARBQSwitches |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | - | - | LED, Blue/Red | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B10VS2QESwitches |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
Y54K10191000ZFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
Y54K10151000ZFPLinear IC's |
0 |
|
Datasheet |
K12S | Bulk | Active | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | - | - | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
903SWITCH PUSH SPDT 0.25A 125V |
0 |
|
- |
903 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
|
913SWITCH PUSH SPDT 0.25A 125V |
0 |
|
- |
913 | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
KM1101RR02QESWITCH PUSH SPST-NO 0.25A 125V |
0 |
|
Datasheet |
KM | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 250mA (AC/DC) | 125 V | 125 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
LP4OA1RBATBSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
RP3508ABLKCLRBLUNSSWITCH PB SPST-NO 3A 125V |
0 |
|
Datasheet |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | - | Clear | LED, Blue | 3 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
|
700SP7B10VS3QEC1BSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
PB2LS42D1100SWITCH PB DPST 20A 125 |
0 |
|
- |
PB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | - | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|

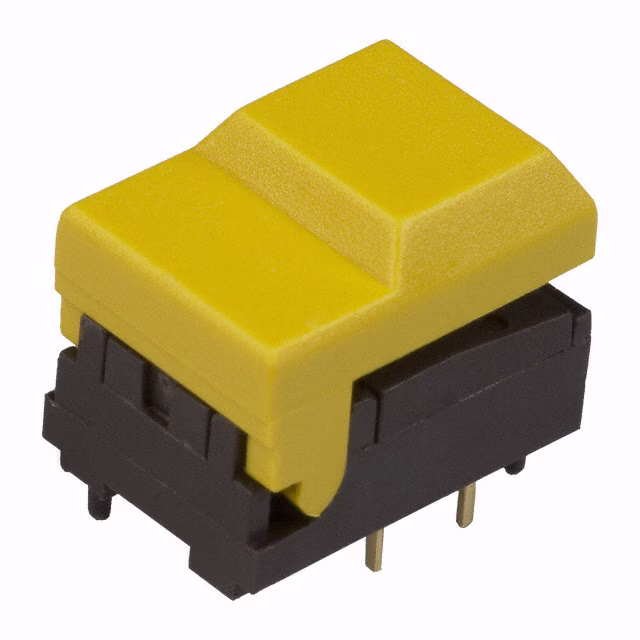

SER YE AU OASWITCH PUSH SPDT 0.01A 24V |
0 |
|
Datasheet |
DIGITAST | Bulk | Obsolete | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
800CSP1B5M1QESwitches |
0 |
|
Datasheet |
800C | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Plunger for Cap | - | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
ASP21TNCQSWITCH PB DPDT 3A 120V |
0 |
|
Datasheet |
ASP | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
|
ASP21TEBQSWITCH PB DPDT 3A 120V |
0 |
|
Datasheet |
ASP | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700ASP7B10M2QEHSwitches |
0 |
|
Datasheet |
700A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800AWSP9M61QESWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
800A | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
LP15R1WHTRED-NSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | No Marking | White | LED, Red | 1.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP15R1WHTGRN-NSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | No Marking | White | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP15R1REDRED-NSWITCH PB SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | - | Red | LED, Red | 1.6 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
