Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TM2-21-L2Switches |
0 |
|
- |
YM | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 48 V | Plunger for Cap | - | - | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
800SP8B5M1QEHSWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
CFPB-1CC-1G1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-1R1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-1R2SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-1W1SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-1W2SWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|

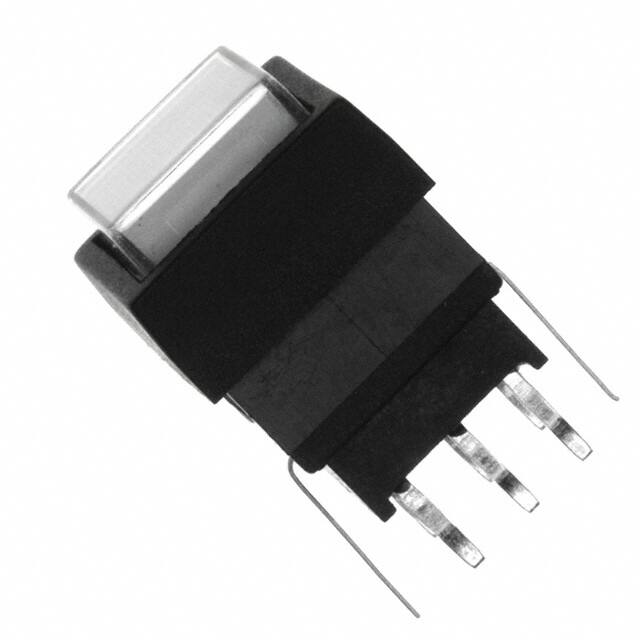

LP4EE1PBATYSWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
WBL2UOARGQR05CLRSWITCH PB DPDT 0.3A 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 300mA (DC) | - | 30 V | Round, Button, Domed | - | Clear | LED, Green/Red | 1.95, 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
LP4OA1PBBTBSWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP2S3TBBLU-NSWITCH PB SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | - | Clear | LED, Blue | 3.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP8B5M2REHSwitches |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
WBL4UEEGBQSWITCH PUSH 4PDT 300MA 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Blue/Green | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|

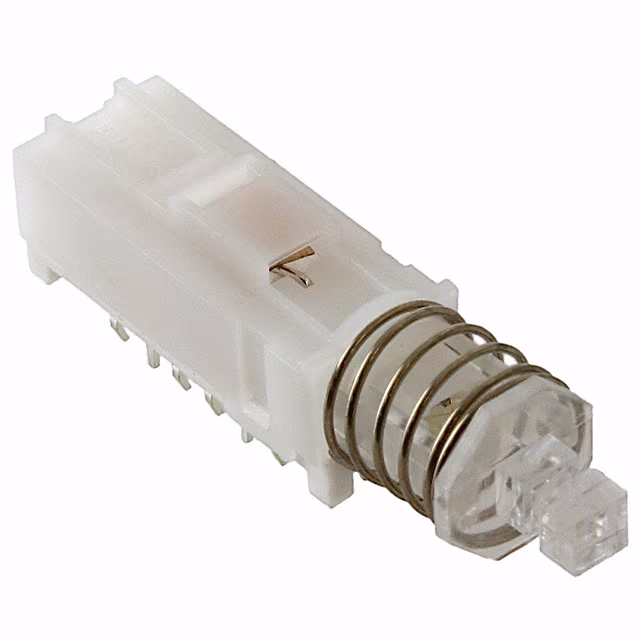

WBL4UEERBQSWITCH PUSH 4PDT 300MA 30V |
0 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Blue/Red | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B5VS2RESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
800SP9B6VS2RESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
LP4EE1PBAYYSWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B10VS2RESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
800SP8B10M6QESWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
ANP12F4BQESWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
ANP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
