Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2492673-7PUSH BUTTON EXTENDED ORANGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
800SP9B5VS2QESWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
800SP9B6VS2QESWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
PB241D212Z02TSWITCH PUSHBUTTON SPST 20A 125V |
0 |
|
Datasheet |
PB2, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 20A (AC) | 125 V | - | Square, Button, Dual | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C |
|
|
1571619-3SWITCH PUSHBUTTON SPST-NO 10MA |
0 |
|
Datasheet |
- | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 10 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
800SP9B6M7QESWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
PMS9P1B09M6RESWITCH PUSH SPST-NO 0.4VA 20V |
10 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
5511MGRNREDSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Green | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5501MWHTXSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

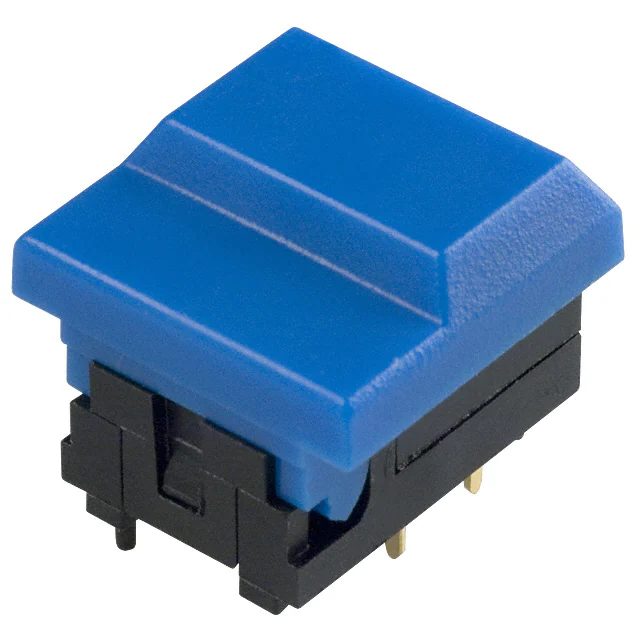

5511MBLUXSWITCH PUSH SPDT 0.03A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

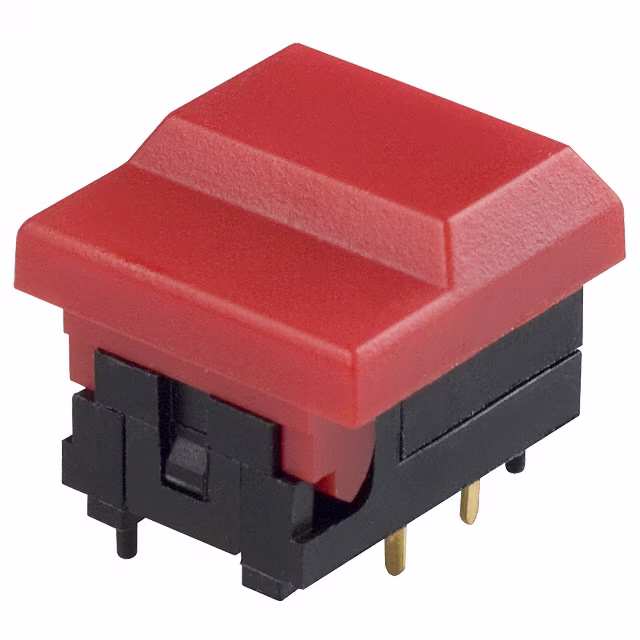

5511MREDXSWITCH PUSH SPDT 0.03A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501M4XSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501M6XSWITCH PUSHBUTTON SPDT 30MA 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 30mA (DC) | - | 12 V | Square, Button | No Marking | Orange | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
700SP7B10M3QEHSwitches |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
LP2S3WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
1-2492673-3ILLUM. PUSH BUTTON EXTENDED ORAN |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
800SP9B9VS2REHSWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B6M6CESWITCH PB SPST-NO 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
KFB-2ALA2GBBSWITCH PUSH DPST 10A 125V |
0 |
|
Datasheet |
KF | Box | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Green | Neon, Green | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
|
LP4EE1PBCTBSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
