Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-1SWITCH PUSH SPST-NO 1A 115V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
8532MCQE2SWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
SW-PB7-1Z-A-LRRG-H-3-G2AANTI-VANDAL PUSHBUTTON SWITCH, 1 |
17 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 5A (AC) | 250 V | - | Round, Button | No Marking | Silver | LED, Green/Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 55°C |
|
FHNDSBXSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

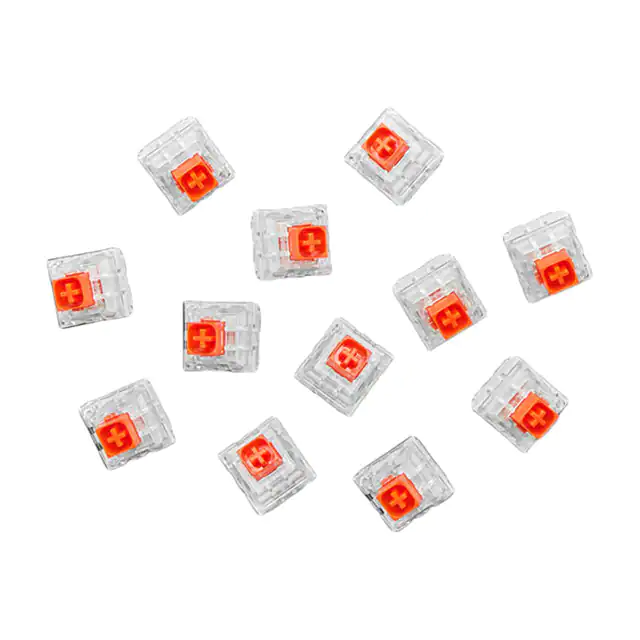

5122KAILH MECHANICAL KEY SWITCHES - |
16 |
|
Datasheet |
- | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Red | - | - | PC Pin | IP56 - Dust Protected, Water Resistant | - | - | -10°C ~ 70°C |
|
|
SW-PB2-2EZ-A-RB-3-L1APLASTIC WATERPROOF SWITCH, LATCH |
11 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 250 V | - | Round, Button | No Marking | Silver | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | Waterproof | - | - | -25°C ~ 55°C |
|
|
NE18 2U EE P 6AMPSWITCH PUSHBUTTON DPDT 6A 250V |
0 |
|
Datasheet |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
|
7074CSWITCH PUSH SPST-NO 15A 125V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

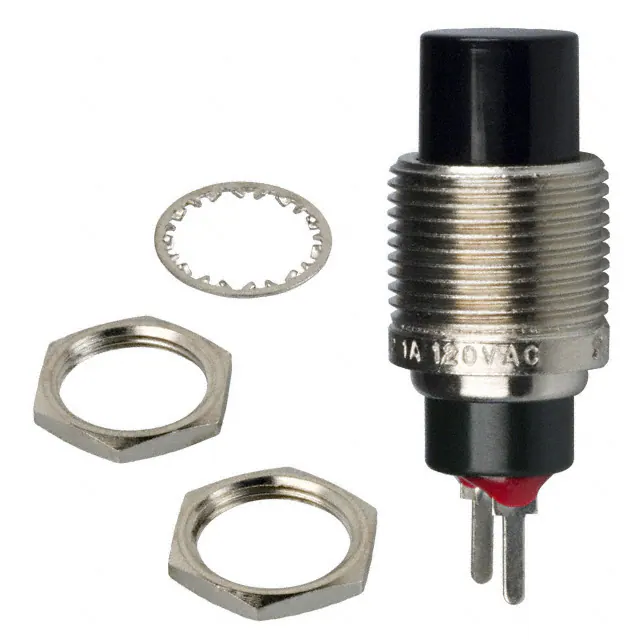

8531TCQE2SWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
1186SWITCH PUSHBUTTON SPST-NO YELLOW |
10 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | - | - | - | Round, Button, Domed | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 5 ~ 12 VDC | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
|
KP0215ANBKG03RGBPSWITCH PB MINI ILLUMINATED RGB |
0 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | - | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

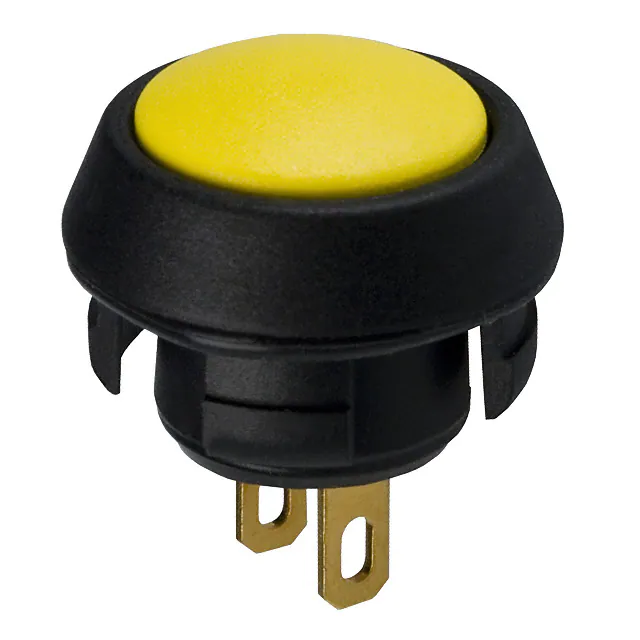

30-103SWITCH PUSH SPST-NO 0.15A 24V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Sealed - Fully | Circular - 15.20mm Dia | -40°C ~ 80°C |
|
A22NN-BGM-NYA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Yellow | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
ELUMOATHQ7C12SWITCH PUSH SPDT 0.25A 50V |
0 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Blue | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
|
SV4F23SS-331SWITCH PB SPST-NO 2A 36V |
25 |
|
Datasheet |
SV4 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Green | 3.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|
|
PVA6RE24241SWITCH PB SPST-NO 2A 36V |
0 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Clear | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
SV4F23SS-311SWITCH PB SPST-NO 2A 36V |
11 |
|
Datasheet |
SV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|

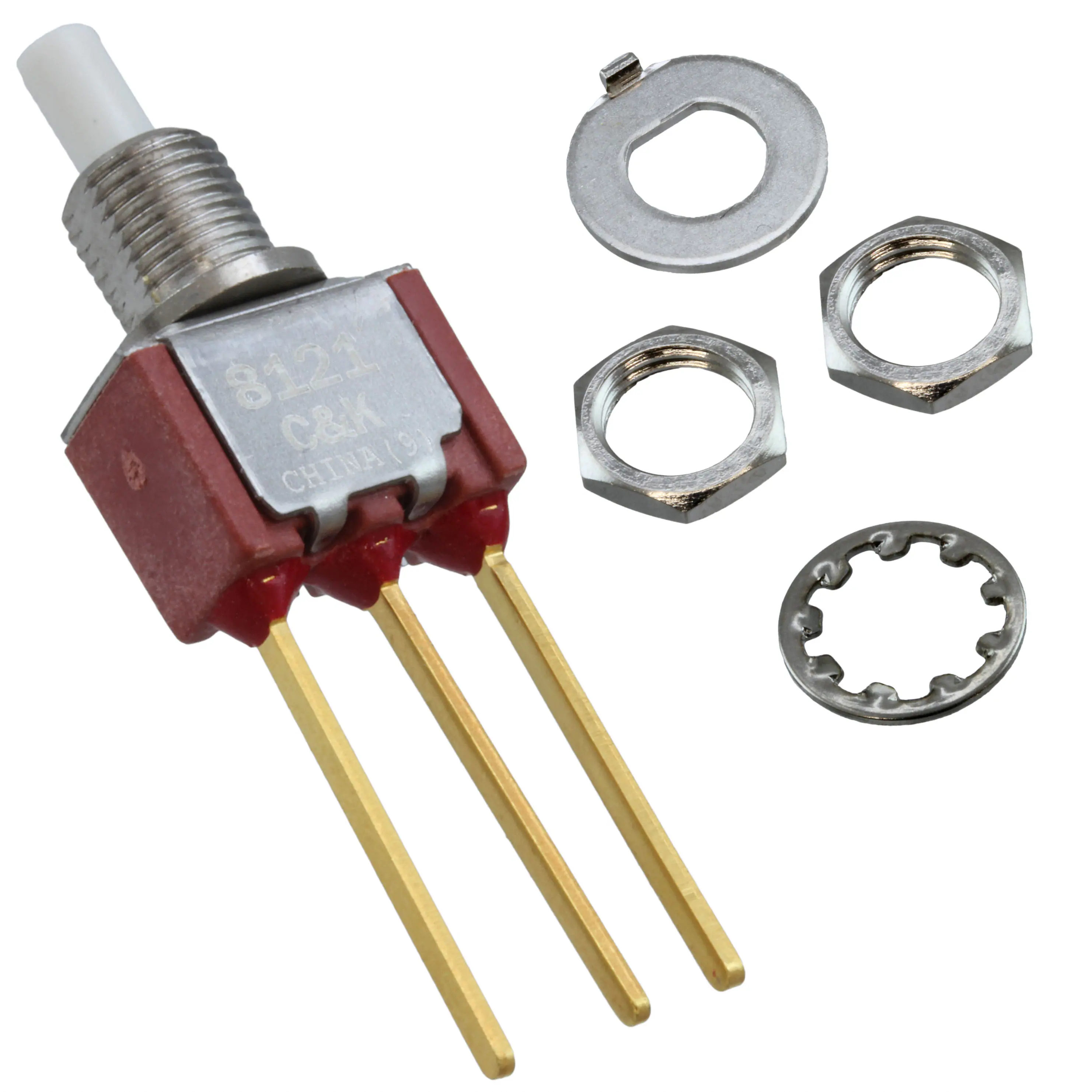

8121SHWGESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
AP2E200SZBESWITCH PUSH SPST-NO 0.125A 125V |
2 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
ULV4F23SSSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
