Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

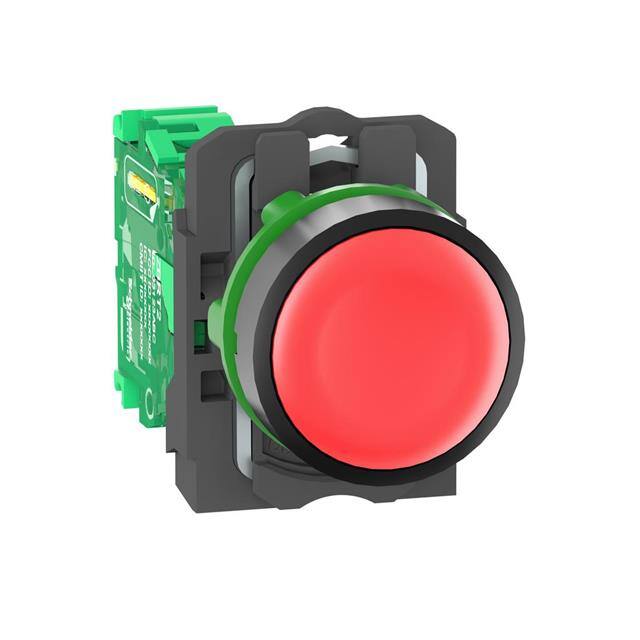

ZB5RTA4HARMONY XB5, WIRELESS AND BATTER |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

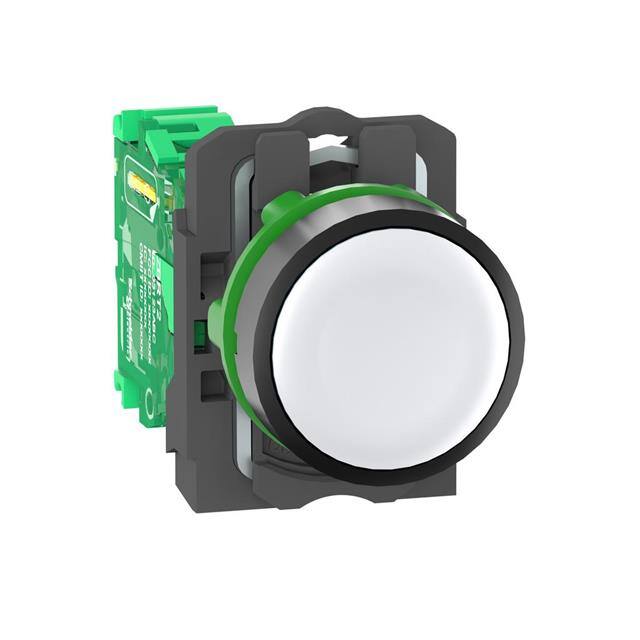

ZB5RTA1HARMONY XB5, WIRELESS AND BATTER |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | White | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
6034585RESET PUSHBUTTON |
2 |
|
Datasheet |
ER12 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 2A (DC) | - | 24 V | Round, Button | - | Blue | LED, Blue | 30 VAC/DC | Connector | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 70°C |
|
|
XB4BP381GEXHAZ LOC -PB GREEN W/BOOT W/LEGEN |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 75°C |
|
84-ASKS-C18-04A8SWITCH PB 0.2A 5V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
9001KR9BH13PUSH BUTTON 600VAC 10A 30MM T-K |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001KR9RH13PUSHBUTTON 600VAC 10A 30MM TYPE |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Mushroom | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
49SDPB5PUSH BUTTONS, 22MM MOMENTARY, ST |
4 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | - | - | - | - | - | Black | - | - | Screw Terminal | - | - | Circular - 22.30mm Dia | -20°C ~ 40°C |
|
84-ACKS-C12-04C1SWITCH PB 0.2A 5V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
84-ACKS-C17-04C4SWITCH PB 0.2A 5V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
84-ACKS-C19-04C6SWITCH PB 0.2A 5V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
84-ADKS-C17-04B5SWITCH PB 0.2A 5V CAPACITIVE |
10 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
84-ADKS-C12-04B2SWITCH PB 0.2A 5V CAPACITIVE |
10 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
84-ASKS-C10-04A2SWITCH PB 0.2A 5V CAPACITIVE |
10 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
84-ASKS-C14-04A5SWITCH PB 0.2A 5V CAPACITIVE |
10 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
84-ASKS-C11-04A3SWITCH PB 0.2A 5V CAPACITIVE |
10 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
84-ACKS-B15-04BESWITCH PB 0.2A 5V CAPACITIVE |
10 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
|
9001K2L38LGGH13PUSH BUTTON 600VAC 10A 30MM T-K |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 550mA (DC) | - | 125 V | Round, Button | - | Green | LED, Green | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001K1L1GH13PUSH BUTTON 600VAC 10A 30MM T-K |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC/DC) | - | - | Round, Button, Flush | - | Green | Incandescent, Green | 110 ~ 120 VAC | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
9001K3L38LGGH13PUSH BUTTON 600VAC 10A 30MM T-K |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 550mA (DC) | - | 125 V | Round, Button, Flush | - | Green | LED, Green | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
