Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
03-625.011SWITCH PB DPDT 10A 400V |
4 |
|
Datasheet |
03 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | -25°C ~ 55°C |
|
|
51-283.0252FACTUATOR, ILLUMINATIVE, 3 NC / 3 |
4 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 6PST-3NO/3NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
51-273.0252ACTUATOR, 18 MM, ILLUMINATIVE, |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 6PST-3NO/3NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
XB4BW13B522MM ILL EXTENDED PB/24V GREEN 1 |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | Incandescent, Green | 110 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB4FW34B5FLUSH CAPS ILL PB RED LED 24V 1N |
10 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB4FW34M5FLUSH CAPS ILL PB RED LED 230V 1 |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 230 ~ 240 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
03-618.011ACTUATOR, 41.2 MM X 21.2 MM, ILL |
4 |
|
Datasheet |
03 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | - | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | - |
|

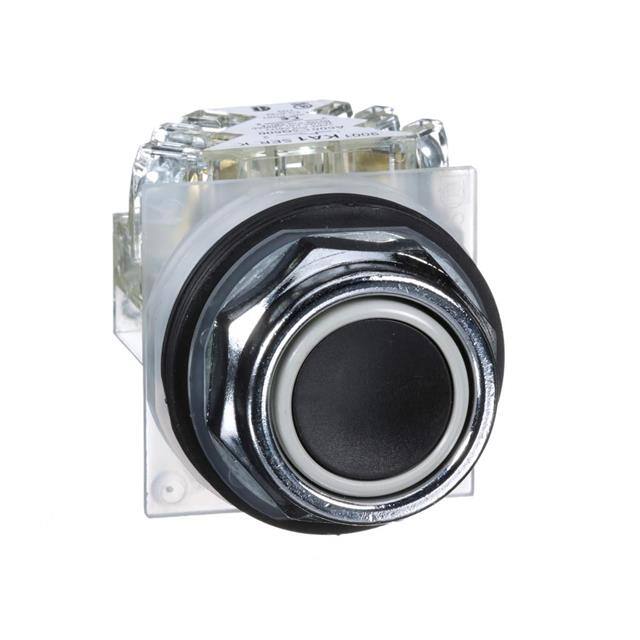

9001KR1BH1330MM PUSH BUTTON, TYPE K, PUSH B |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
51-154.0252ACTUATOR, 18 MM X 18 MM, ILLUMIN |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | - |
|
|
51-134.025ACTUATOR, 18 MM, ILLUMINATIVE, |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | - |
|
|
51-124.025ACTUATOR, 24 MM X 18 MM, ILLUMIN |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
03-628.011ACTUATOR, 21.2 MM X 41.2 MM, ILL |
5 |
|
Datasheet |
03 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | - | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | - |
|
|
51-284.0252ACTUATOR, 18 MM X 18 MM, ILLUMIN |
4 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

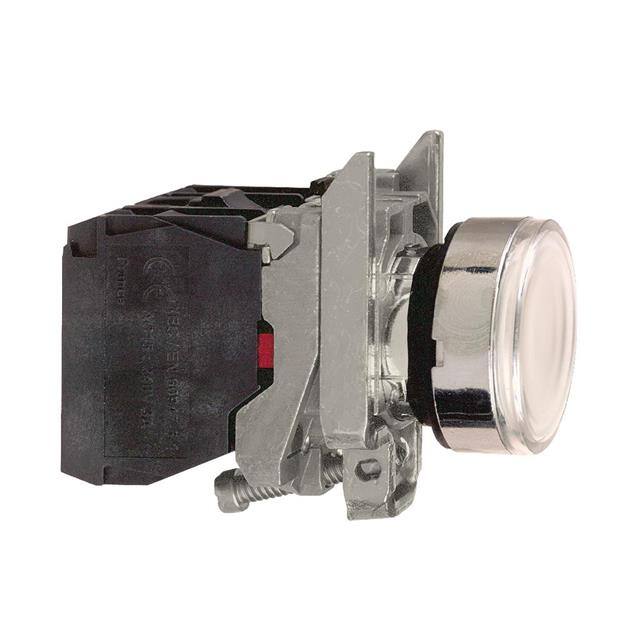

XB4BW3165HARMONY XB4, ILLUMINATED PUSH BU |
3 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 250 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 55°C |
|

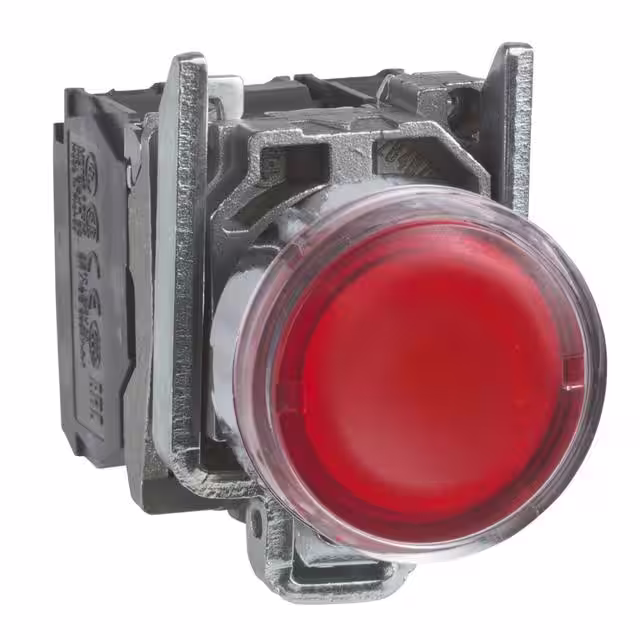

XB4BW3465HARMONY XB4, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 250 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 55°C |
|

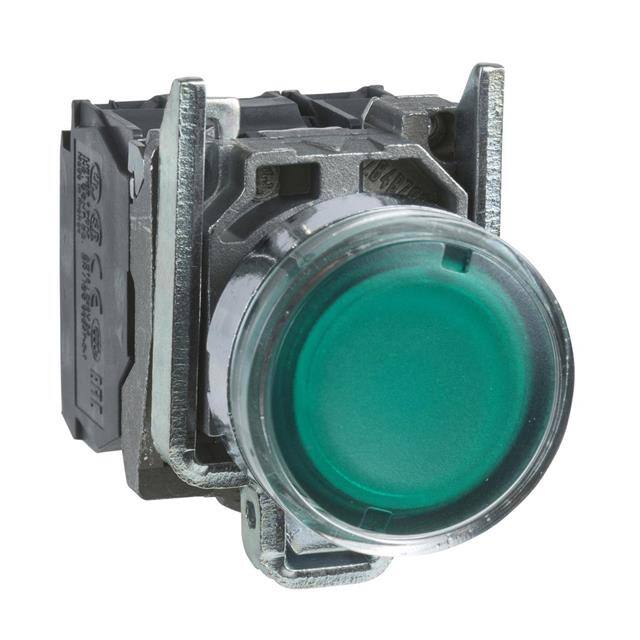

XB4BW3365HARMONY XB4, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 250 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 55°C |
|
ZB5RTA6HARMONY XB5, WIRELESS AND BATTER |
3 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Blue | - | - | Wireless | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
31-154.0252ACTUATOR, 16 MM, 18 MM X 18 MM, |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
31-134.0252ACTUATOR, 16 MM, 18 MM, ILLUMI |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
31-124.0252ACTUATOR, 16 MM, 24 MM X 18 MM, |
3 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
