Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51-154.0252FACTUATOR, ILLUMINATIVE, 4 NC / 4 |
4 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Rectangular - 27.20mm x 21.20mm | -25°C ~ 55°C |
|
|
31-264.0252ACTUATOR, 16 MM, 24 MM X 18 MM, |
9 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
31-284.0252ACTUATOR, 16 MM, 18 MM X 18 MM, |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
31-274.0252ACTUATOR, 16 MM, 18 MM, ILLUMI |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
03-620.011ACTUATOR, 41.2 MM X 21.2 MM, ILL |
11 |
|
Datasheet |
03 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | - | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | - |
|
|
51-284.0252FACTUATOR, ILLUMINATIVE, 4 NC / 4 |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 8PST-4NO/4NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
XALD351H29H7PUSHBUTTON ENCLOSURE OPEN-STOP-C |
4 |
|
Datasheet |
Harmony XALD | Box | Active | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Green, Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
9001KR24BH13PUSH BUTTON 600VAC 10A 30MM T-K |
2 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard | SPDT | On-Off | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
1241.3665PIEZO SW. NO 24MM RGB 5-28VDC |
10 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 24.30mm Dia | -40°C ~ 85°C |
|
XB5AW34B5HARMONY XB5, ILLUMINATED PUSH BU |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB5AW36B5HARMONY XB5, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB4BW34B5HARMONY XB4, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

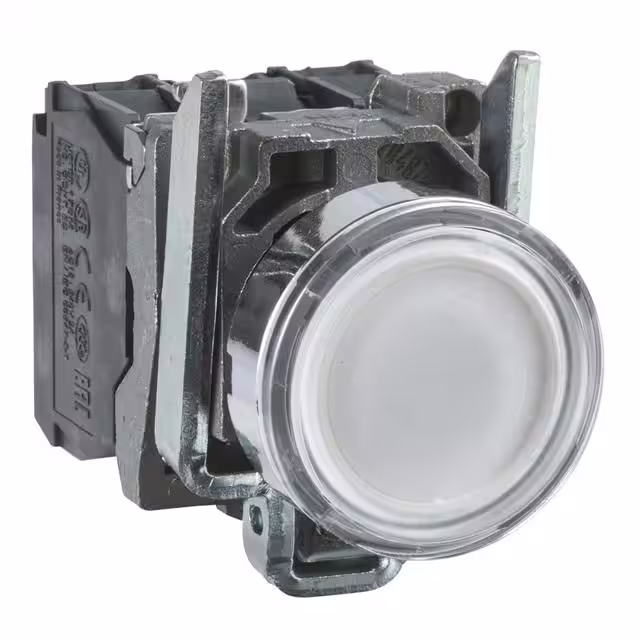

XB4BW31B5HARMONY XB4, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

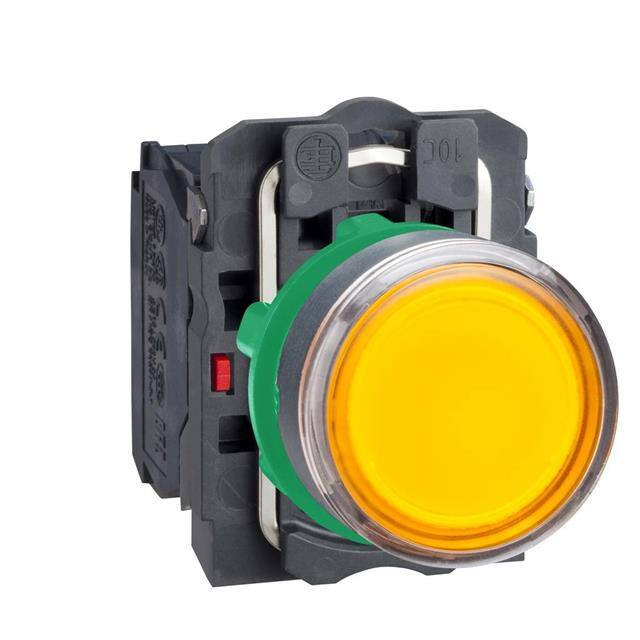

XB5AW35B5HARMONY XB5, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 24 VDC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB5AW36G5HARMONY XB5, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB4BW31G5HARMONY XB4, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB4BW35G5HARMONY XB4, ILLUMINATED PUSH BU |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 110 ~ 220 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

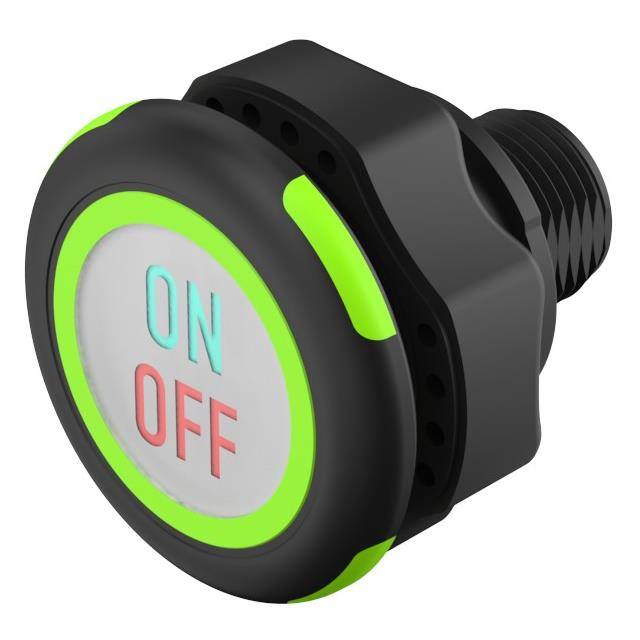

84-ASKS-C12-04A4SWITCH PB 0.2A 5V CAPACITIVE |
5 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
84-ASKS-C19-04A9SWITCH PB 0.2A 5V CAPACITIVE |
4 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
|
84-ASKS-C17-04A7SWITCH PB 0.2A 5V CAPACITIVE |
4 |
|
Datasheet |
84 | Box | Active | Panel Mount, Front | Capacitive, Illuminated | - | - | 200mA (DC) | - | 5 V | Round, Button, Flush | - | - | LED, Green/Red | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 22.50mm Dia | - |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
