Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K14-271.212092ILLUMINATED PUSHBUTTON, MAINTAIN |
5 |
|
Datasheet |
K14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Flush | - | Clear | LED, Clear | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
31-272.0252ACTUATOR, 16 MM, 18 MM, ILLUMI |
4 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
31-748.0292ACTUATOR, 16 MM, 18 MM, ILLUMI |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
31-718.0292ACTUATOR, 16 MM, 18 MM X 18 MM, |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
02-614.011SWITCH PB DPDT 10A 400V |
10 |
|
Datasheet |
02 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 29.20mm x 21.20mm | -25°C ~ 55°C |
|
XB7NW34B1HARMONY XB7, MONOLITHIC ILLUMINA |
9 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button | - | Red | LED, Red | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
51-714.0292ACTUATOR, 24 MM X 18 MM, ILLUMIN |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | - |
|
|
51-152.025FACTUATOR, ILLUMINATIVE, 2 NC / 2 |
7 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | - | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

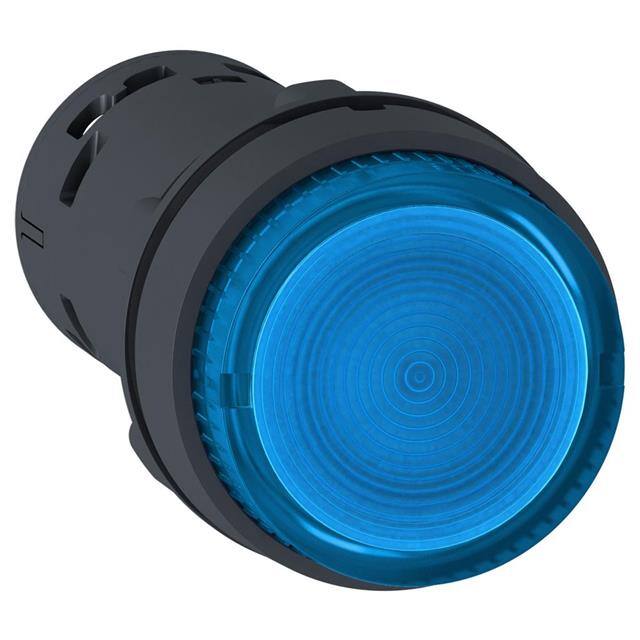

XB7NW36B1HARMONY XB7, MONOLITHIC ILLUMINA |
10 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button | - | Blue | LED, Blue | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
31-713.0292ACTUATOR, 16 MM, 24 MM X 18 MM, |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
02-613.011ACTUATOR, 21.2 MM X 29.2 MM, NON |
8 |
|
Datasheet |
02 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | - | - | - | - | Screw Terminal | IP40 | - | Rectangular - 29.20mm x 21.20mm | - |
|
|
14-133.0252ACTUATOR, ILLUMINATIVE, 3 NC / 3 |
5 |
|
Datasheet |
14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 6PST-3NO/3NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
84-6841.2B40SWITCH STOP LIGHT GREY, 2NC, ILL |
19 |
|
Datasheet |
84 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 5A (AC/DC) | 250 V | 250 V | Round, Button | - | Gray | LED, Red | - | Cable Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
K14-131.211071ILLUMINATED PUSHBUTTON, MOMENTAR |
5 |
|
Datasheet |
K14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Flush | - | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
K14-271.212130PUSHBUTTON, MOMENTARY, 250 V AC |
5 |
|
Datasheet |
K14 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Flush | - | Natural | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
3SU11530AB401BA0ILLUMINATED PUSHBUTTON, MOM, GRN |
2 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
51-707.0292ACTUATOR, 24 MM X 18 MM, ILLUMIN |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
14-273.0252ACTUATOR, ILLUMINATIVE, 3 NC / 3 |
5 |
|
Datasheet |
14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | - |
|
|
31-273.0252ACTUATOR, 16 MM, 18 MM, ILLUMI |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button (Not Included) | - | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
31-283.025SWITCH PB 6PST-3NO/3NC 5A 250V |
13 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | 6PST-3NO/3NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
