Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB6DW5B5BCOMPLETE ILLUMINATED PUSH BUTTON |
3 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Yellow | LED, Yellow | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

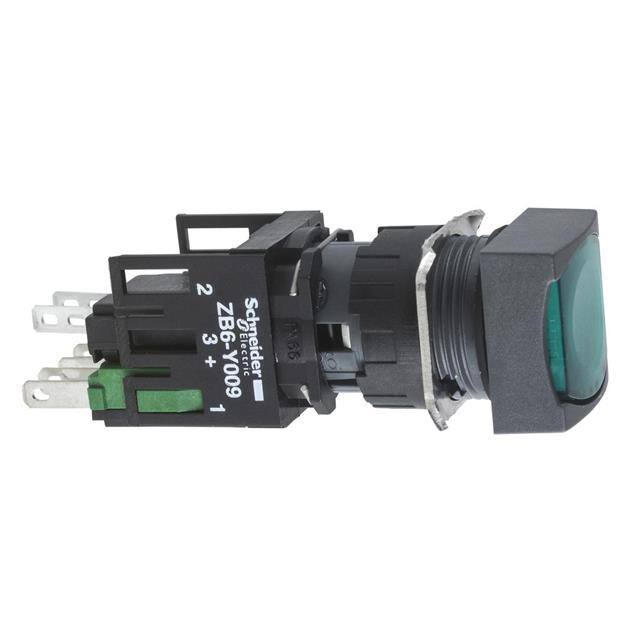

XB6CW3B5BCOMPLETE ILLUMINATED PUSH BUTTON |
2 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
51-747.0292ACTUATOR, 18 MM, ILLUMINATIVE, |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
SS119LBSRWSWITCH PB SPST N.O. 24A 26.4VDC |
20 |
|
Datasheet |
SS1 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-On | 24A (DC) | - | 26.4 V | Round, Button, Flush | - | Silver | LED, Red | 2 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 85°C |
|
|
84-6231.2B20STOP SWITCH, 22.3 MM, 32 MM, M |
5 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 65°C |
|
|
SS119LBSBWSWITCH PB SPST N.O. 24A 26.4VDC |
20 |
|
Datasheet |
SS1 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-On | 24A (DC) | - | 26.4 V | Round, Button, Flush | - | Silver | LED, Blue | 3.3 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 85°C |
|

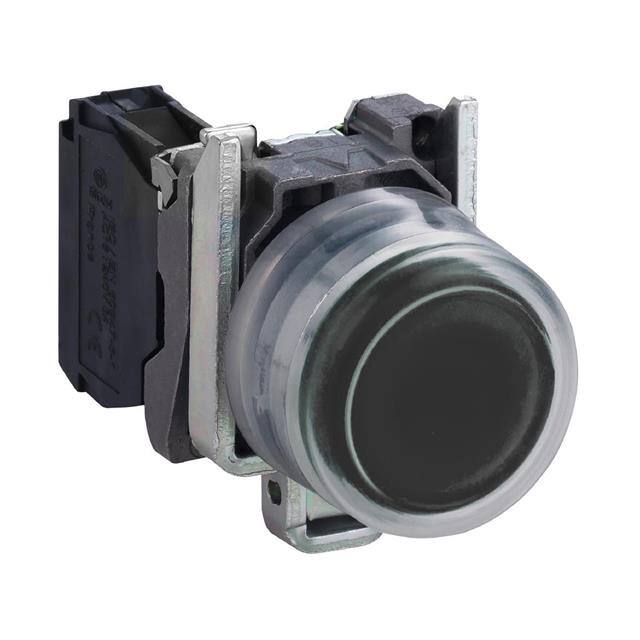

XB4BP21HARMONY XB4, PUSH BUTTON, METAL, |
3 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
03-611.011SWITCH PB SPDT 10A 400V |
10 |
|
Datasheet |
03 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 41.20mm x 21.20mm | -25°C ~ 55°C |
|

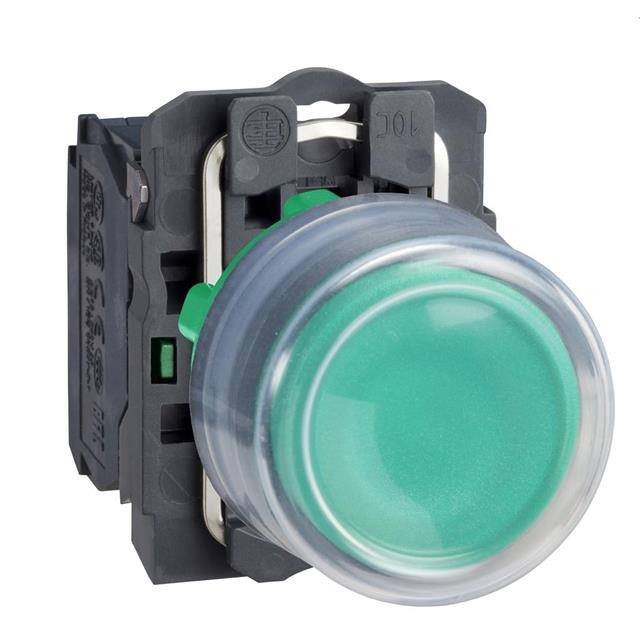

XB5AP31HARMONY XB5, PUSH BUTTON, PLASTI |
2 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
84-6831.2B20STOP SWITCH, 32 MM, MUSHROOM-HE |
7 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | 250 V | Round, Button, Mushroom | - | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | - |
|
|
51-706.0292ACTUATOR, 24 MM X 18 MM, ILLUMIN |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
14-747.0292ACTUATOR, ILLUMINATIVE, 1 NC / 1 |
5 |
|
Datasheet |
14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 30.50mm Dia | -25°C ~ 55°C |
|
|
31-706.0292ACTUATOR, 16 MM, 24 MM X 18 MM, |
4 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
K14-131.111061ILLUMINATED PUSHBUTTON, MOMENTAR |
5 |
|
Datasheet |
K14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
XALD101H29H7PUSHBUTTON ENCLOSURE START 1NO |
2 |
|
Datasheet |
Harmony XALD | Box | Active | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
82-6655.2114PUSHBUTTON, ILLUMINATED PUSHBUTT |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard, Illuminated | - | - | 500mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | - | Silver | LED, Red | 24 VAC/DC | Cable with Connector | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
22-223.014SWITCH PB DPST-NO 10A 400V |
8 |
|
Datasheet |
22 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 85°C |
|
|
SS119LBSGWSWITCH PB SPST N.O. 24A 26.4VDC |
20 |
|
Datasheet |
SS1 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-On | 24A (DC) | - | 26.4 V | Round, Button, Flush | - | Silver | LED, Green | 3.3 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 85°C |
|
|
31-710.0292ACTUATOR, 16 MM, 18 MM X 18 MM, |
5 |
|
Datasheet |
31 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Square, Button (Not Included) | - | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.20mm Dia | - |
|
|
CTK16LA1F1FG003CD201SWITCH PUSHBUTTON OFF - ON RGB |
20 |
|
Datasheet |
CTK | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
