Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02-618.011SWITCH PB SPDT 10A 400V |
10 |
|
Datasheet |
02 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Screw Terminal | IP40 | - | Rectangular - 29.20mm x 21.20mm | -25°C ~ 55°C |
|
|
K14-131.111071ILLUMINATED PUSHBUTTON, MOMENTAR |
5 |
|
Datasheet |
K14 | Bag | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Flush | - | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

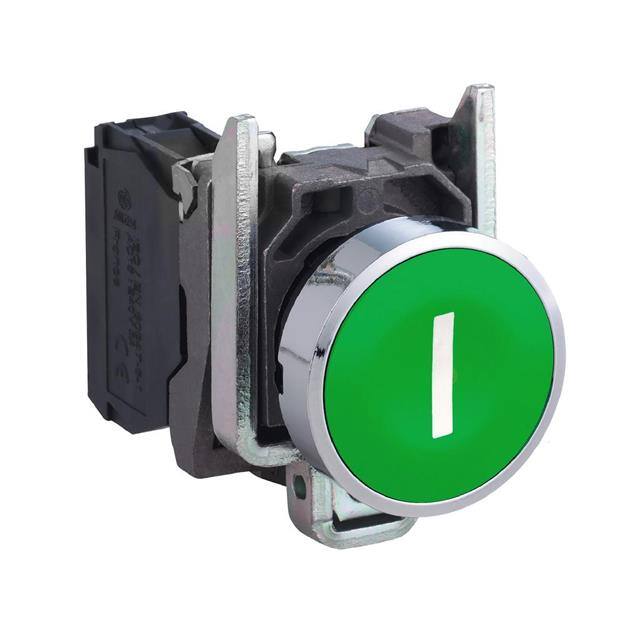

XB4BA3311HARMONY XB4, PUSH BUTTON, METAL, |
5 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

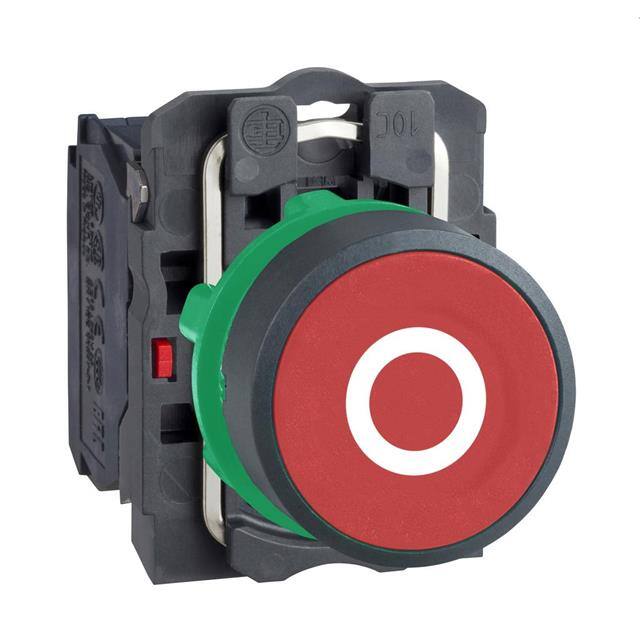

XB5AA4322HARMONY XB5, PUSH BUTTON, PLASTI |
3 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

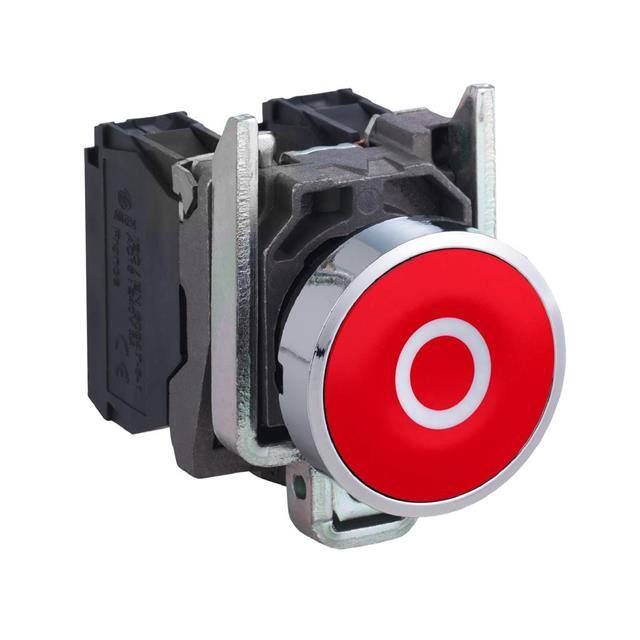

XB4BA4322HARMONY XB4, PUSH BUTTON, METAL, |
2 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
51-153.0224ACTUATOR, 24,5 MM, MUSHROOM-HEA |
5 |
|
Datasheet |
51 | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC/DC) | 250 V | 250 V | Round, Button, Mushroom | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
22-221.014SWITCH PB SPST-NO 10A 400V |
10 |
|
Datasheet |
22 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC) | 400 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 85°C |
|
XB5AA86102HARMONY XB5, PUSHS BUTTON RESET |
3 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Blue | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
SS119CBSNWSWITCH PB SPDT 10A 28VDC |
20 |
|
Datasheet |
SS1 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 10A (DC) | - | 28 V | Round, Button, Flush | - | Silver | LED, Blue/Red | 2.0, 3.3 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 85°C |
|
|
SS119CBSNAWSWITCH PB SPDT 10A 28VDC |
20 |
|
Datasheet |
SS1 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 10A (DC) | - | 28 V | Round, Button, Flush | - | Silver | LED, Blue/Red | 2.0, 3.3 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 85°C |
|
|
82-6451.1000.B005PUSHBUTTON, MOMENTARY, 22MM, ALU |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
84-6221.2B20STOP SWITCH, 22.3 MM, 32 MM, M |
5 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 65°C |
|
XB4BA3311522MM PUSH BUTTON, HARMONY XB4, M |
4 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
84-6821.2B20STOP SWITCH, 32 MM, MUSHROOM-HE |
5 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Gray | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 65°C |
|
|
3-140-093THS30 SWITCH MO NO 100MA AI RGB |
17 |
|
Datasheet |
THS | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Square, Button | - | Green | LED, Green | 3 VDC | Connector | - | - | - | -40°C ~ 85°C |
|
|
84-6340.0020STOP SWITCH, 22.3 MM, 32 MM, M |
2 |
|
Datasheet |
84 | Bag | Active | Panel Mount, Front | Standard | DPST-NC | On-Off | 3A (AC), 2A (DC) | 120 V | 24 V | Round, Button, Mushroom | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP20 | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
82-6951.1124.B002ILLUMINATED PUSHBUTTON, MOMENTAR |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
82-6751.1114.B015ILLUMINATED PUSHBUTTON, MOMENTAR |
5 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
82-6951.1154.B002ILLUMINATED PUSHBUTTON, MOMENTAR |
4 |
|
Datasheet |
82 | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|

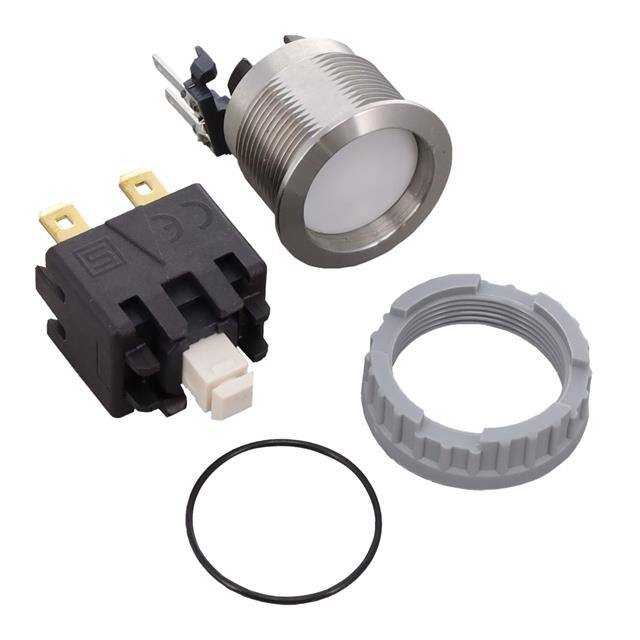

3-101-039SWITCH PUSHBUTTON DPST 16A 250V |
20 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
