Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB216KKW016DG-5JDG14SWITCH PUSHBUTTON SPDT 5A 125V |
18 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB216KKW016DG-4JDG11SWITCH PUSHBUTTON SPDT 5A 125V |
5 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Amber/Blue | 2.8, 2 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
82-6151.2133.B001SWITCH PB SPDT 5A 120V |
8 |
|
Datasheet |
82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -30°C ~ 70°C |
|
|
LB16SKG01-5D24-JDSWITCH PUSHBUTTON SPDT 0.4VA 28V |
5 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB225SKW036FSWITCH PUSHBUTTON DPDT 5A 125V |
11 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
51-483.036SWITCH PB DPST-NO/NC 0.1A 42V |
10 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 100mA (AC/DC) | 42 V | 42 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
MP0045/1E1RD012SSWITCH PB DPST ON-OFF ILLUM RED |
85 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MC19MCSRGSW CAPACITIVE SPST-NC 10MA 12V |
66 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -25°C ~ 55°C |
|
MC19MOSGRSW CAPACITIVE SPST-NO 10MA 12V |
65 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -25°C ~ 55°C |
|
|
LB15WKW01-5C24-JCSWITCH PUSHBUTTON SPDT 3A 125V |
10 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15WKW01-5F12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
10 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15WKW01-5D12-JDSWITCH PUSHBUTTON SPDT 3A 125V |
10 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

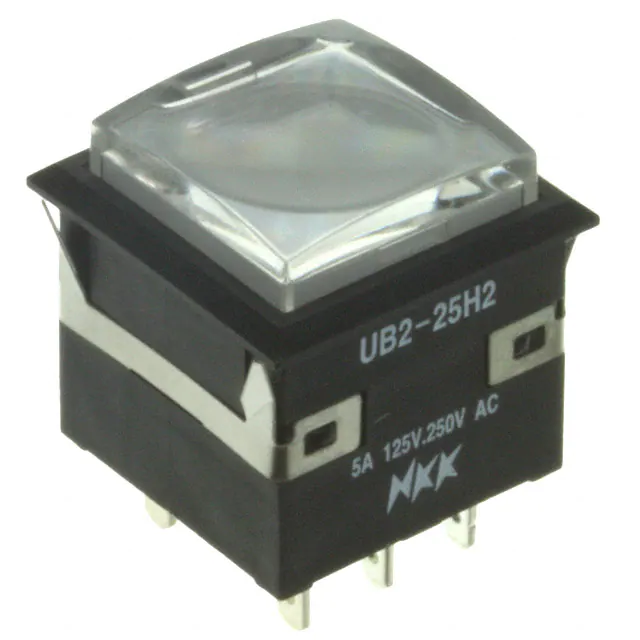

UB225KKW016F-1JBSWITCH PUSHBUTTON DPDT 5A 125V |
38 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
AH1NMRSXWA1SWITCH PB SPST NO + SPST NC 20A |
6 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
PV4F2Y0SS-325SWITCH PUSHBUTTON DPST 2A 24V |
63 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

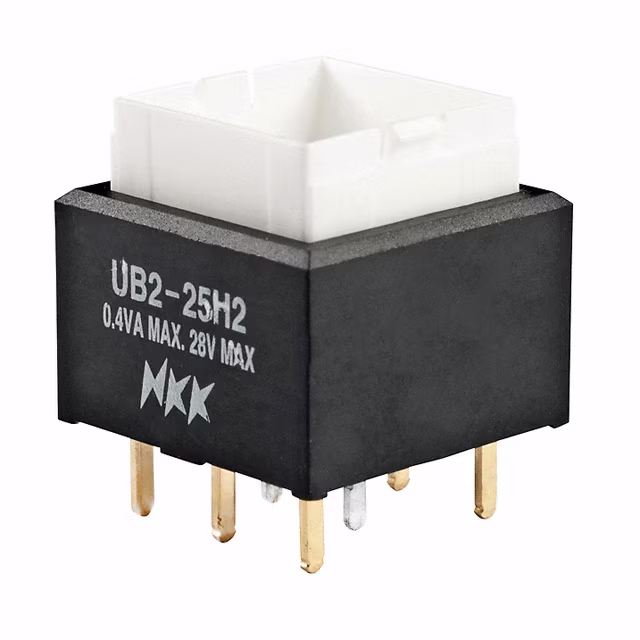

UB225SKG036BSWITCH PUSH DPDT 0.4VA 28V |
12 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, White | 3.3 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
AH1NBBR12WA1SWITCH PB SPST NO + SPST NC 20A |
10 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBB12WA1SWITCH PB SPST NO + SPST NC 20A |
9 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
MP0045/1E2RD012SSWITCH PB DPST ON-OFF ILLUM RED |
78 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

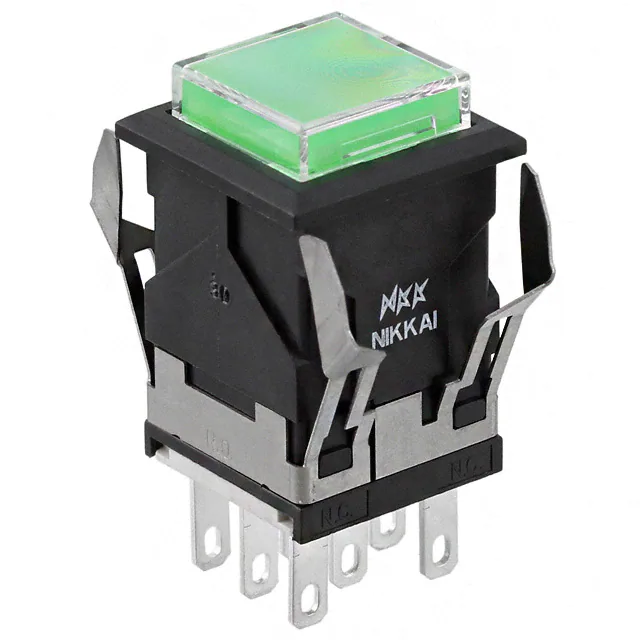

LB26SKW01-5F24-JFSWITCH PUSHBUTTON DPDT 3A 125V |
70 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
