Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26SKW036B-JBSWITCH PUSHBUTTON DPDT 5A 125V |
32 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 2.9 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
1301.9565SWITCH PUSH SPST-NO 50MA 24V |
87 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
YB16WCKW01-5F12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
3 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

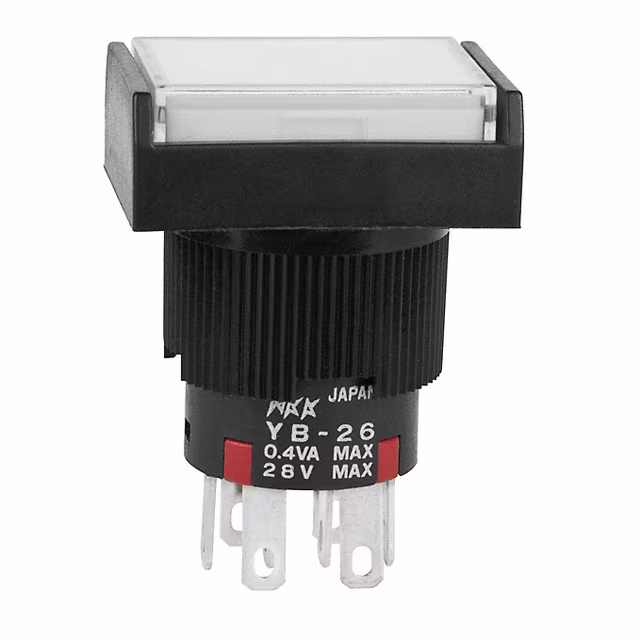

YB26RKG01-2CF24-JBSWITCH PUSH DPDT 0.4VA 28V |
6 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

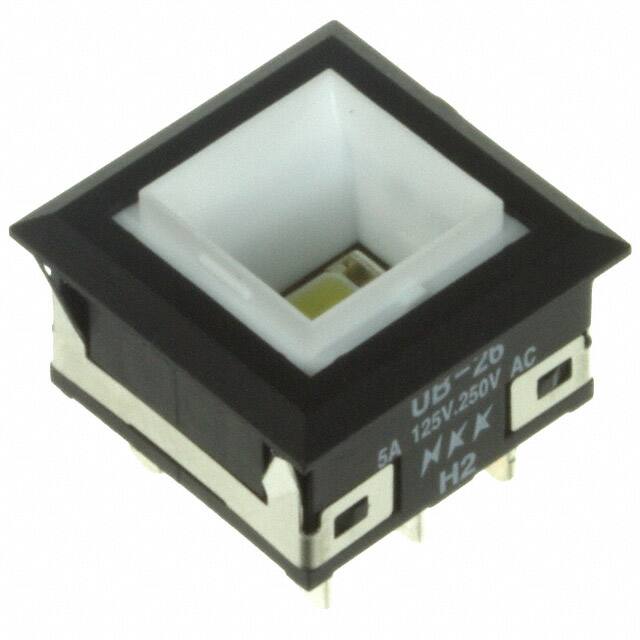

UB26KKW016BSWITCH PUSHBUTTON DPDT 5A 125V |
8 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, White | 2.9 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
3-145-891MSM22 SWITCH MO NX SPDT 100MA |
7 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
YB26RKG01-5F12-JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
10 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

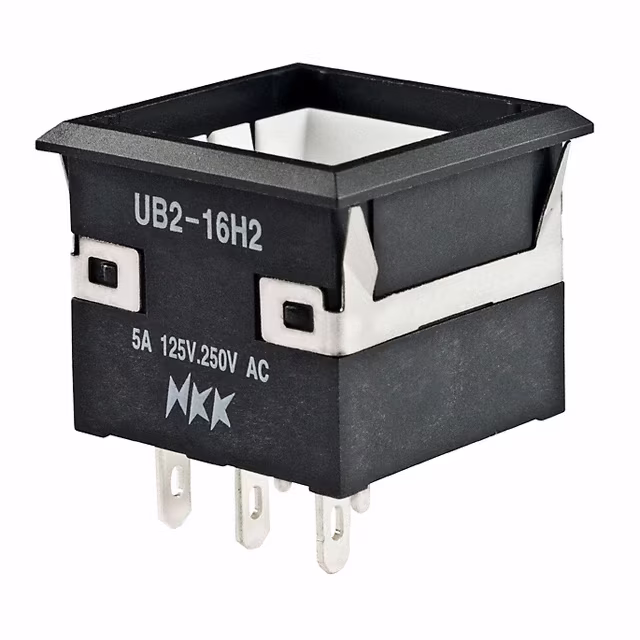

UB216KKW016GSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Blue | 2.9 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
YB16WSKG01-5F24-JFSWITCH PUSH SPDT 0.4VA 28V |
20 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

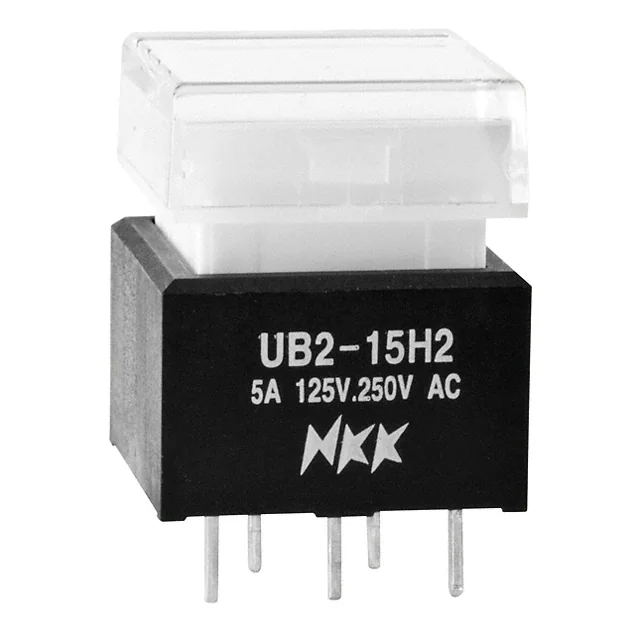

UB215SKW036G-3JBSWITCH PUSHBUTTON SPDT 5A 125V |
28 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 2.9 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|

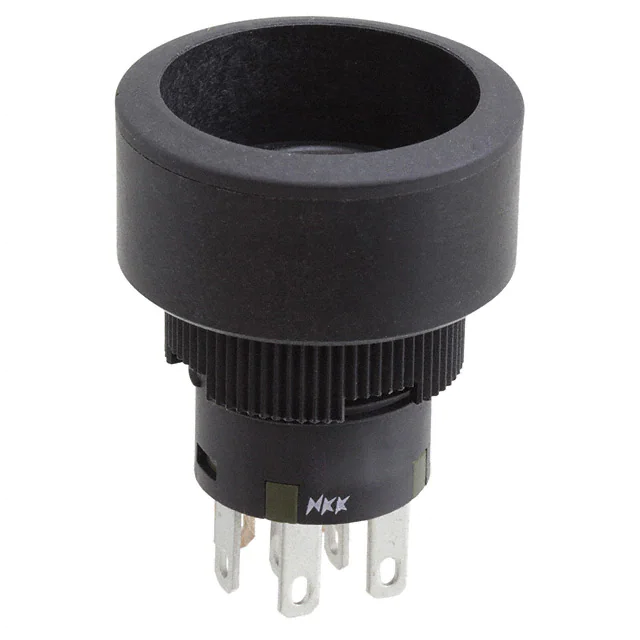

YB226CWCKW01SWITCH PUSHBUTTON DPDT 3A 125V |
95 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB15WRKG01-6B-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
14 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
31-475.036SWITCH PB SPST-NO 0.1A 42V |
10 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
31-485.036SWITCH PB SPST-NO 0.1A 42V |
10 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
31-422.036SWITCH PB SPST-NC 0.1A 42V |
10 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 100mA (AC/DC) | 42 V | 42 V | Rectangular, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
3-145-742MSM22 SWITCH MO NX SPDT 100MA RI |
20 |
|
- |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
3-145-747MSM22 SWITCH MO NX SPDT 100MA RI |
15 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Green | 5 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
3-145-749MSM22 SWITCH MO NX SPDT 5A RI 0B |
10 |
|
Datasheet |
MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 5 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
3-145-746MSMII-22 SWITCH, MOMENTARY SWITC |
19 |
|
Datasheet |
MSM II | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | - | Silver | LED, Red | 5 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -30°C ~ 85°C |
|
|
YB16WCKG01-6B-JBSWITCH PUSH SPDT 0.4VA 28V |
50 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
