Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB215SKG036CF-5JCF14SWITCH PUSHBUTTON SPDT 0.4VA 28V |
10 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB215KKG016CF-5JCF13SWITCH PUSHBUTTON SPDT 0.4VA 28V |
10 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB215SKG036CF-5JCF11SWITCH PUSHBUTTON SPDT 0.4VA 28V |
10 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
AH1NBSMR24WA1SWITCH PB SPST NO + SPST NC 20A |
10 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBSMB24WA1SWITCH PB SPST NO + SPST NC 20A |
10 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBSMR12WA1SWITCH PB SPST NO + SPST NC 20A |
8 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBSMB12WA1SWITCH PB SPST NO + SPST NC 20A |
8 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBSMG24WA1SWITCH PB SPST NO + SPST NC 20A |
8 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NGSMW24WA1SWITCH PB SPST NO + SPST NC 20A |
10 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, White | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NGSMW12WA1SWITCH PB SPST NO + SPST NC 20A |
10 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, White | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
51-422.036SWITCH PB DPST-NC 0.1A 42V |
10 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Standard | DPST-NC | On-Mom | 100mA (AC/DC) | 42 V | 42 V | Rectangular, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
51-433.036SWITCH PB DPST-NO/NC 0.1A 42V |
9 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
51-131.022SWITCH PB DPST-NO/NC 5A 250V |
6 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
DH401NBSR12SWITCH PB SPST-NO/NC 2A 125VAC |
15 |
|
Datasheet |
DH40 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 40.00mm Dia | -25°C ~ 70°C |
|
|
UB216KKW016CF-5JCF14SWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

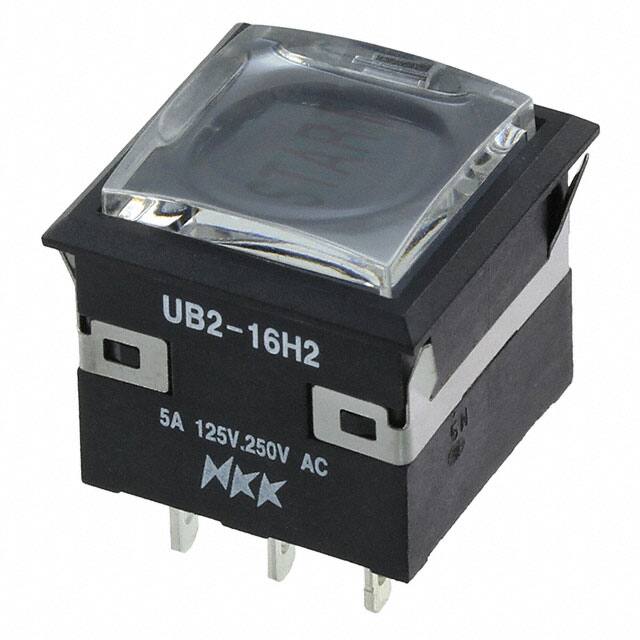

UB216KKW016CF-4JCF13SWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB216KKW016CF-5JCF13SWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
14-472.036SWITCH PB DPST-NC 0.1A 42V |
10 |
|
Datasheet |
14 | Bulk | Active | Panel Mount, Front | Standard | DPST-NC | On-Off | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | PC Pin, Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
3-151-231MSMII-30 SWITCH, MOMENTARY SWITC |
28 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LB26WKW01-5D24-JDSWITCH PUSHBUTTON DPDT 3A 125V |
1 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
