Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E913SWITCH PUSH SPDT 0.25A 28V |
124 |
|
Datasheet |
E900 | Bulk | Active | Free Hanging | Standard | SPDT | On-Mom | 250mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
ATP16DL1000B4SA04GSWITCH ANTIVANDAL 16MM DOME RING |
1,429 |
|
Datasheet |
ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
ULV7F2G11341SWITCH PUSHBUTTON DPDT 3A 250V |
108 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Black | LED, Blue | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
PA301SWITCH PUSH SPST 20A 125V |
459 |
|
Datasheet |
P | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST | On-Off | 20A (AC) | 125 V | - | Round, Plunger, Metal | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
SV8FW3SS-3G1SWITCH PB SPST 2A 36V |
180 |
|
Datasheet |
SV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.0, 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
1977740-2SWITCH PUSHBUTTON SPDT 3A 125V |
109 |
|
Datasheet |
Blue | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Tactile/Audible Feedback | - | -20°C ~ 80°C |
|
|
SV8FW3SS-601SWITCH PB SPST 2A 36V |
150 |
|
Datasheet |
SV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, White | 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|

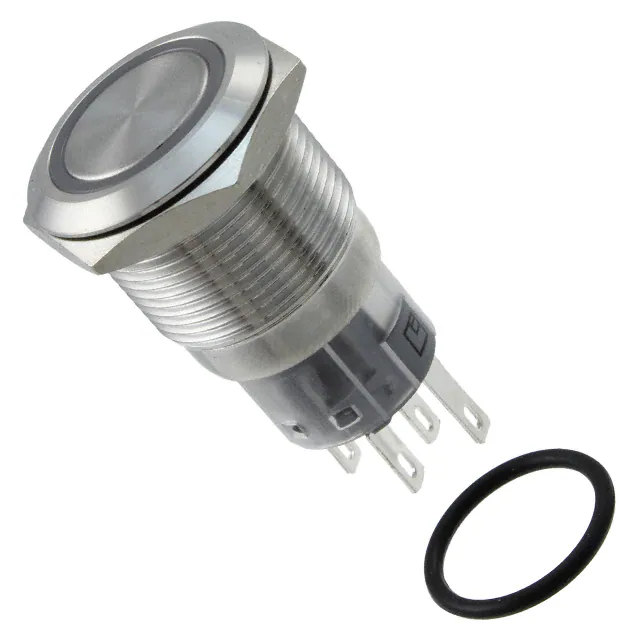

PV4F2B0SS-331SWITCH PUSHBUTTON SPDT 2A 24V |
210 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
AV2210E124Q04SWITCH PUSHBUTTON SPDT 3A 250V |
255 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|

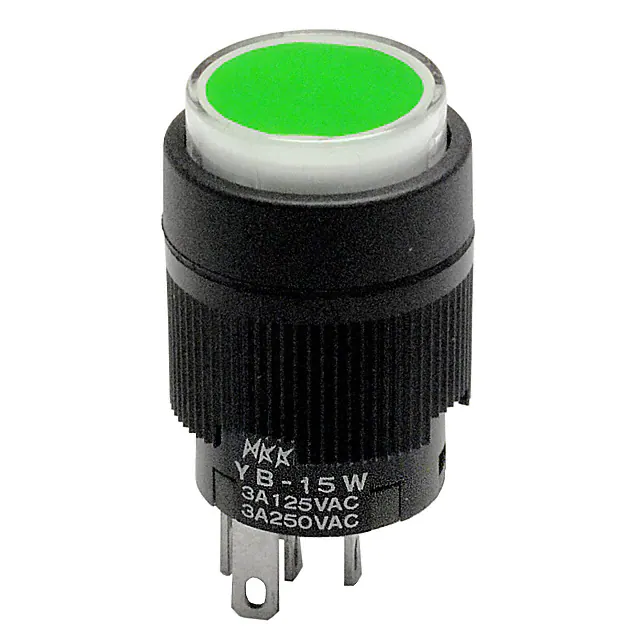

YB15CKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
3 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
AV2210E712Q04SWITCH PUSHBUTTON SPDT 3A 250V |
342 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
EP913S14SWITCH PUSH SPDT 0.25A 125V |
105 |
|
Datasheet |
EP913 | Bulk | Active | Free Hanging | Standard | SPDT | On-Mom, Off-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | - |
|
19-139.015SWITCH PB SPST-NO 0.1A 42V |
248 |
|
Datasheet |
19 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 800mA (AC) | 50 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|

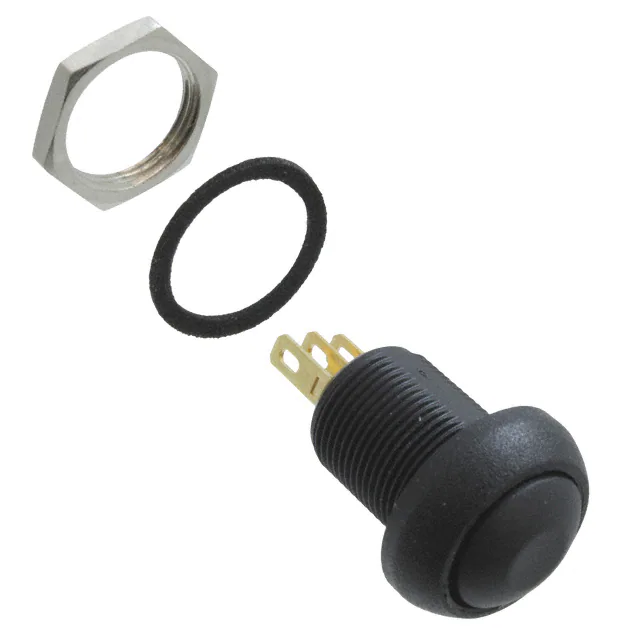

IMR7Z422SWITCH PUSHBUTTON SPDT 3A 28V |
2,575 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
PV7F2Y0SS-345SWITCH PUSHBUTTON SPDT 2A 48V |
340 |
|
Datasheet |
PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|

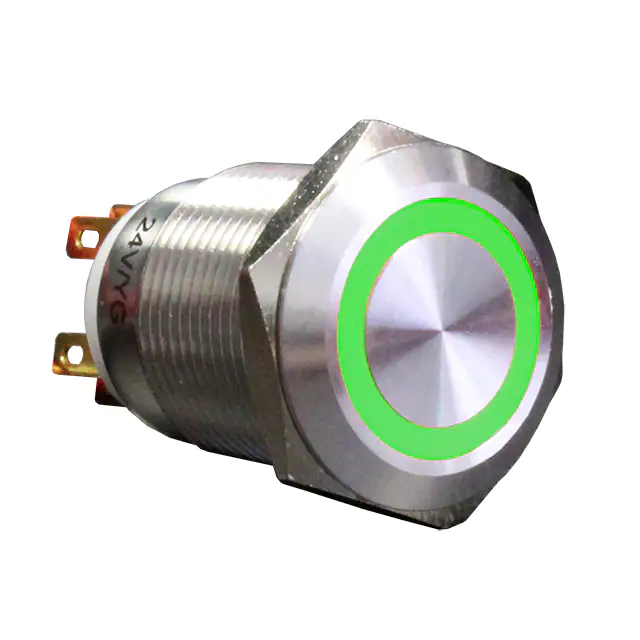

AH1NBSG24SWITCH PB DPST-NO/NC 1A 125V |
120 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
ILR3FAD2SWITCH PUSHBUTTON SPST-NO 2A 24V |
250 |
|
Datasheet |
IL | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
18-237.035SWITCH PB SPST-NO 0.1A 42V |
121 |
|
Datasheet |
18 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
|
ATP16SL1612M4SA04GSWITCH ANTIVANDAL 16MM STD RING |
385 |
|
Datasheet |
ATP16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
1241.5003SWITCH PUSH SPST-NO 100MA 42V |
134 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect, Female - .250" (6.3mm) on Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.30mm Dia | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
