Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP2S-27S-W-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Square - 16.20mm x 16.20mm | -15°C ~ 60°C |
|
LP2W-16S-229-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 2 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
LP2W-16S-809-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|

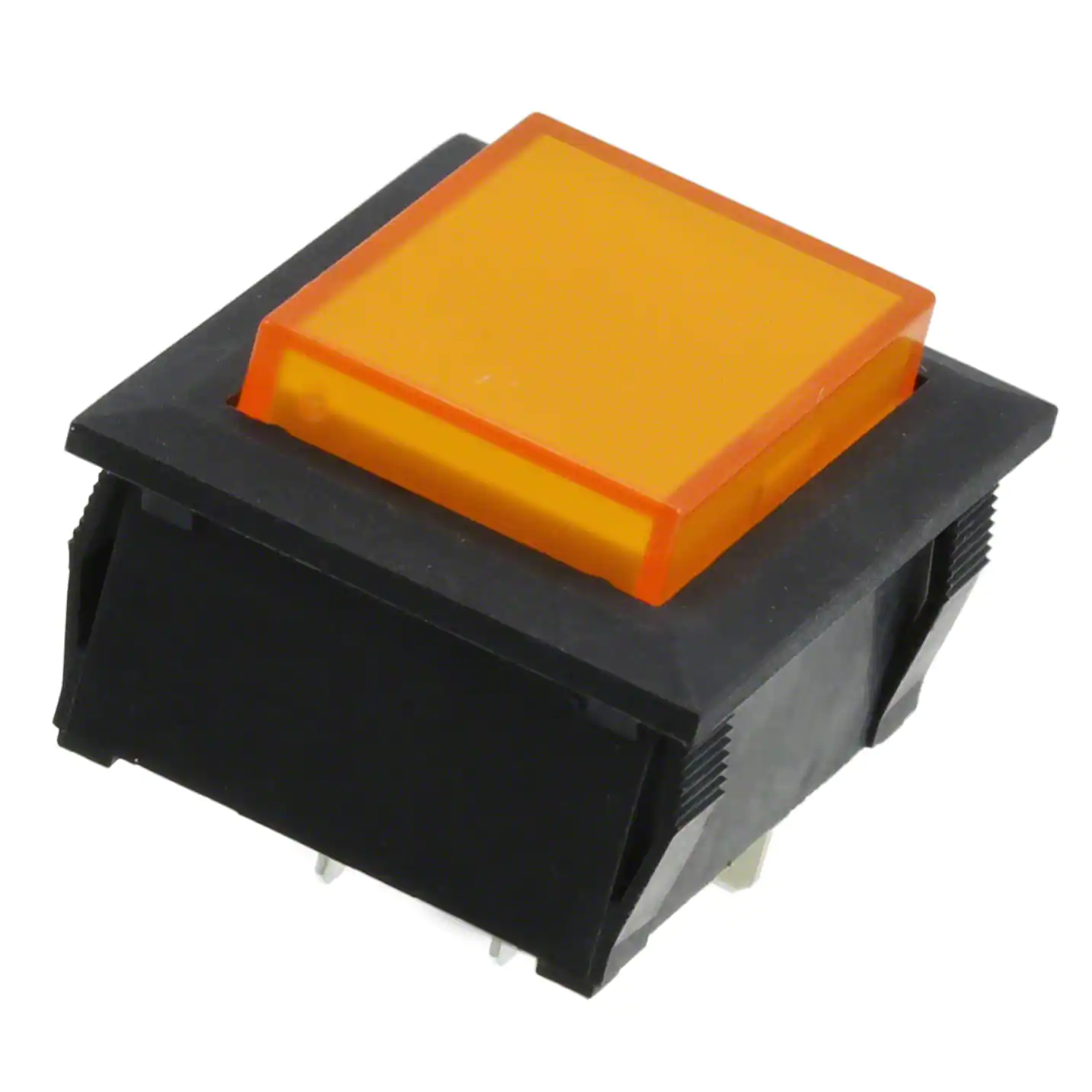

LP2W-16S-889-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
LP2W-16S-K-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
LP2W-16S-R-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|

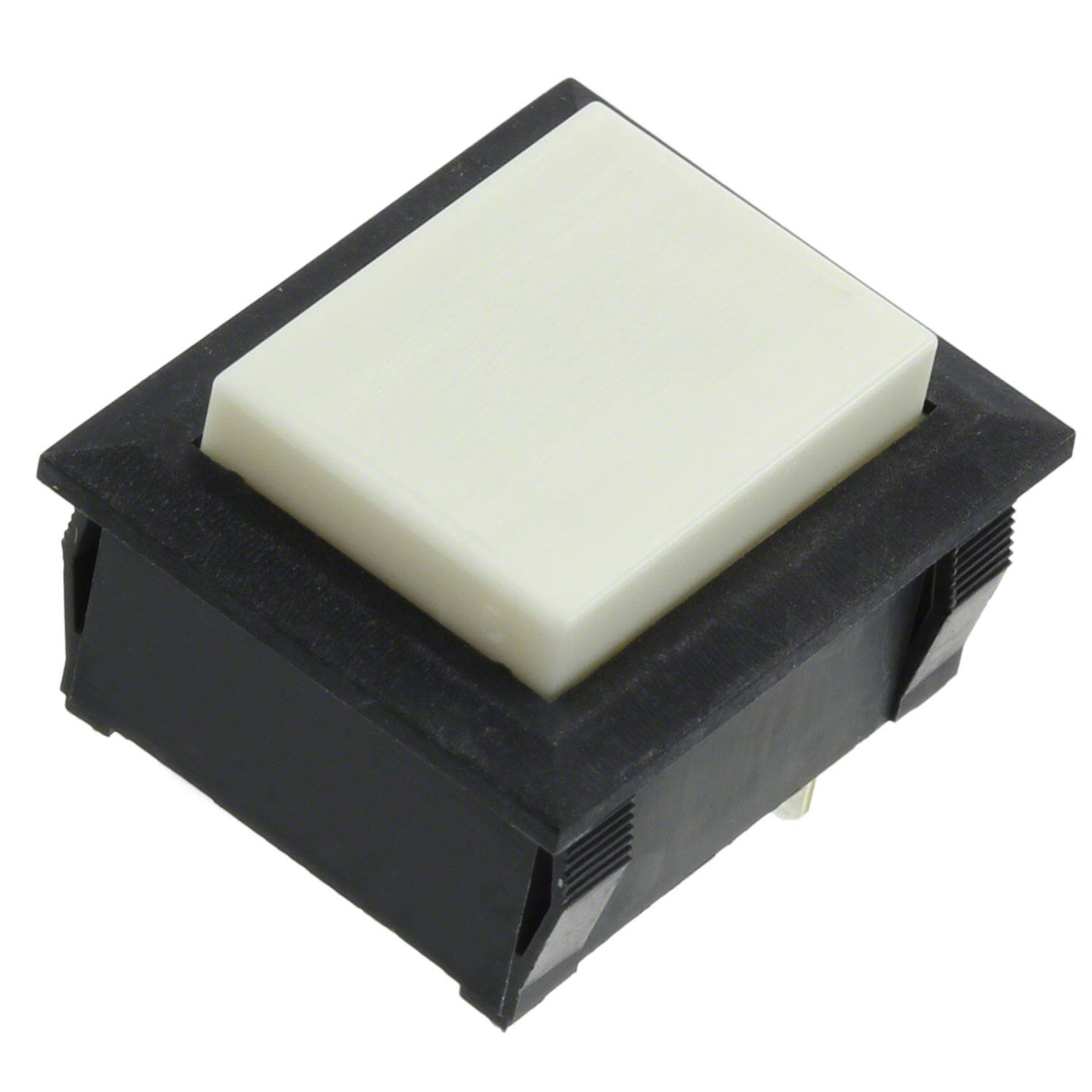

LP2W-16S-W-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
|
LP2W-17S-229-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | LED, Red | 2 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
|
LP2W-17S-R-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|

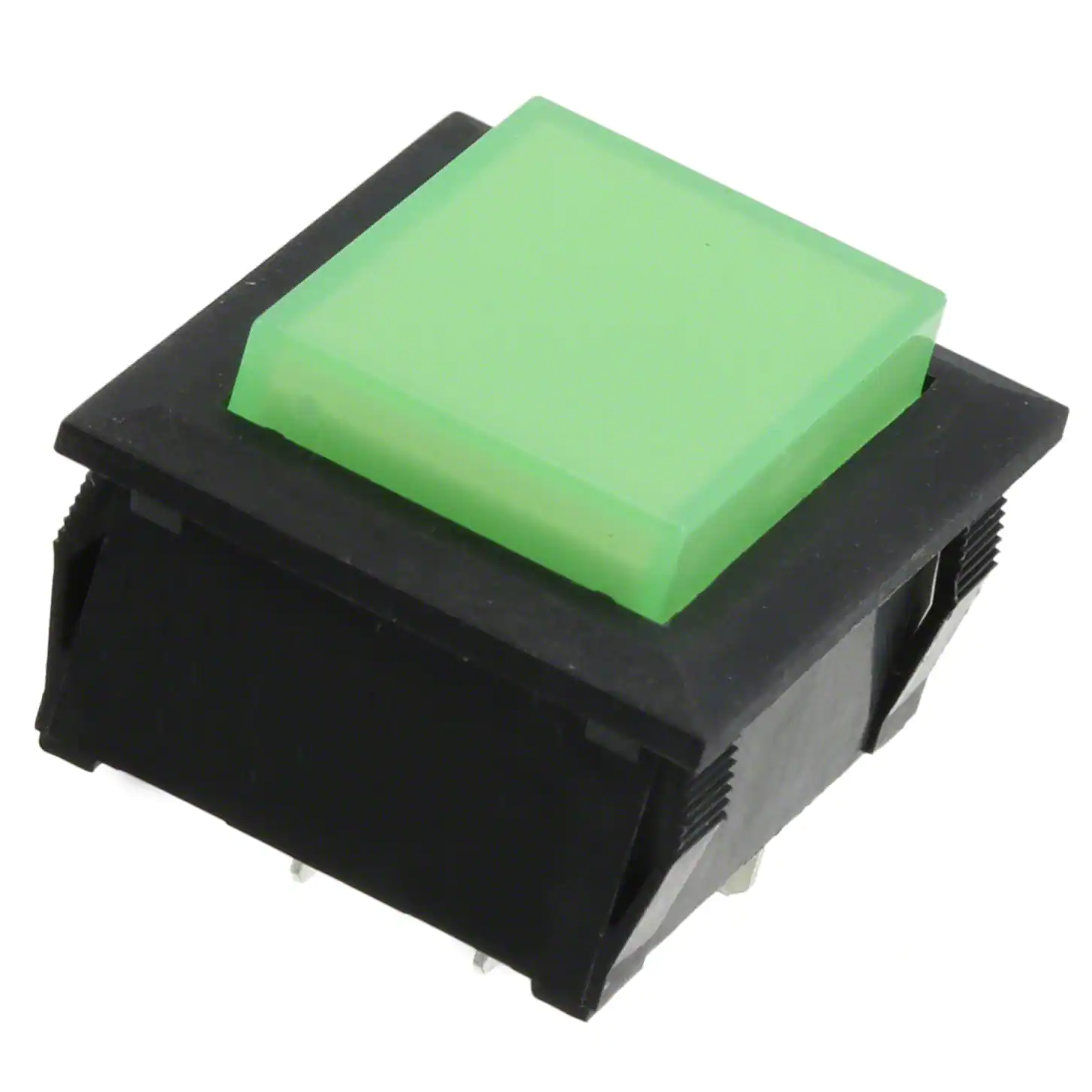

LP2W-26S-559-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
|
LP2W-26S-W-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
|
LP2W-27S-809-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | Solder Lug | - | - | Rectangular - 19.20mm x 16.20mm | -15°C ~ 60°C |
|
9631CDBSWITCH PUSH SPST 0.1A 30V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1241.2903.000SWITCH PUSH SPST-NO 100MA 42V RD |
0 |
|
Datasheet |
PSE HI 22 | Bulk | Obsolete | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 21.15mm Dia | -20°C ~ 60°C |
|
1241.2913.025SWITCH PUSH SPST-NO 100MA 42V BU |
0 |
|
Datasheet |
PSE HI 22 | Bulk | Obsolete | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Blue | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Braille Actuator | Circular - 21.15mm Dia | -20°C ~ 60°C |
|
|
AML21JBA2ABSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Full Guard Bezel | Square - 19.05mm x 19.05mm | - |
|
|
1825207-2SWITCH PUSH 4PST-2NO/2NC 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 5A (AC/DC) | 250 V | 24 V | Round, Button, Mushroom | No Marking | Red | LED, Red | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 50°C |
|
|
3-1437567-0SWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MPA | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
|
1571733-1SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TSP | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
SM0446/2/INS/BKSWITCH PUSHBUTTON DPDT 2A 250V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 2A (AC) | 250 V | - | Round, Button, Mushroom | No Marking | Black | - | - | Solder Lug | - | Push-Pull | Circular - 12.00mm Dia | -20°C ~ 70°C |
