Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM0446/2/INS/BLSWITCH PUSHBUTTON DPDT 2A 250V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 2A (AC) | 250 V | - | Round, Button, Mushroom | No Marking | Blue | - | - | Solder Lug | - | Push-Pull | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
KB26RKW01B-5F24-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP1S-16G-229-ZSWITCH PUSHBUTTON SPDT 50MA 48V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|

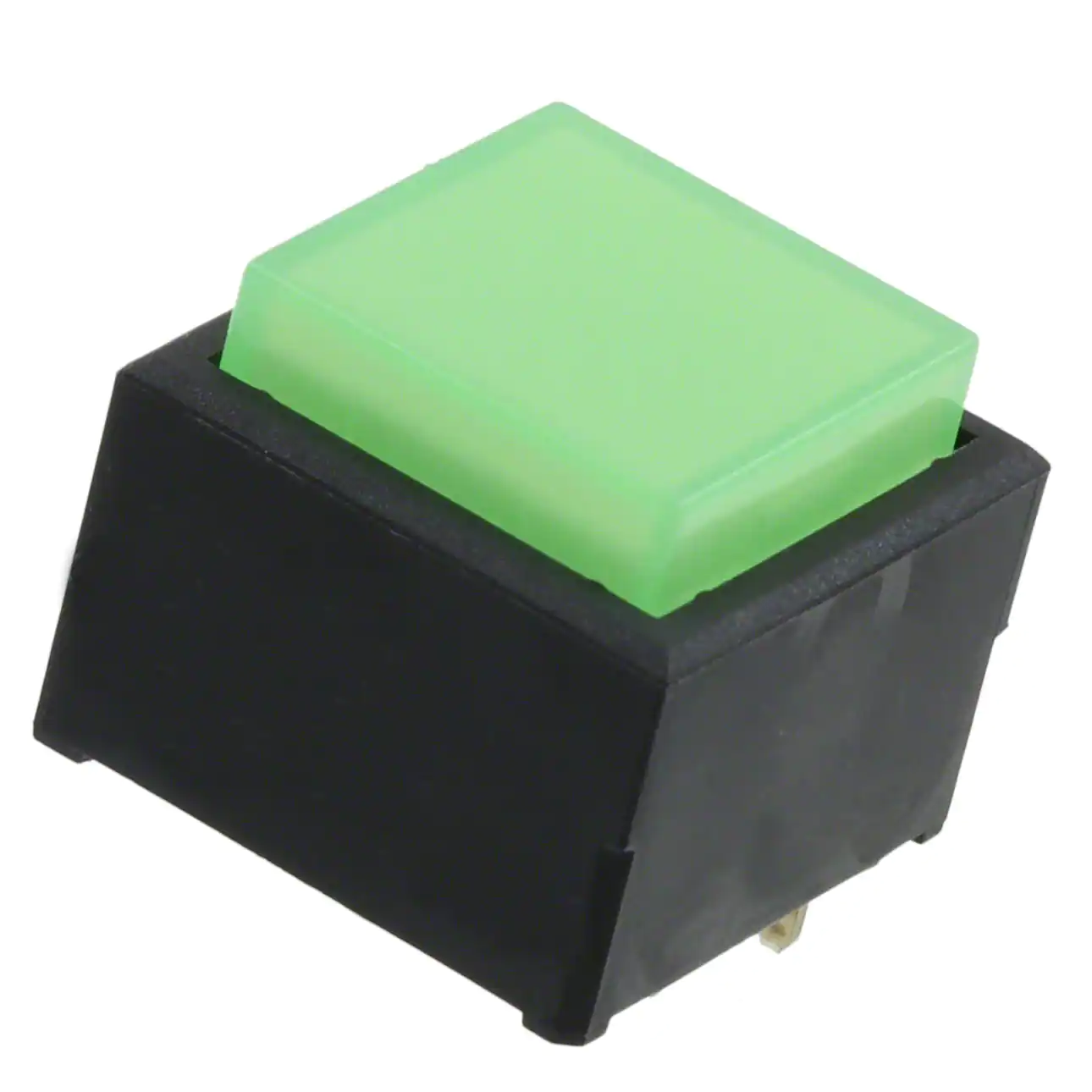

LP1S-16G-559-ZSWITCH PUSHBUTTON SPDT 50MA 48V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
|
A22NN-RNA-NAA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RNA-NBA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RNM-NBA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NL-RPA-TAA-G100-AESWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 200 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TAA-G100-AESWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 200 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TRA-G100-RDSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 100 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TWA-G100-WESWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 200 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TWA-G100-WESWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 200 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TYA-G100-YCSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TYA-G100-YESWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 200 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NN-RPA-NAA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Blue | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RPM-NAA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Blue | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RPA-NBA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RPM-NBA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RPA-NBA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A22NN-RPM-NBA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
