Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1241.7236.1124000SWITCH PUSHBUTTON DPST 12A 250V |
0 |
|
- |
MSM LA CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
1241.7236.1125000SWITCH PUSHBUTTON DPST 12A 250V |
0 |
|
- |
MSM LA CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
RK-2RK-2 REMOTE BLUE PB ACCY KIT |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A22R-TA01ASWITCH PUSH SPST-NC 10A 120V |
0 |
|
- |
A22R | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC) | 120 V | - | Round, Button | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
KB15RKW01B-12-FFPB ON(ON) SPDT 1A 250VAC 30VDC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LP1S-27S-R-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
LP1W-26S-809-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
|
LP1W-26S-R-ZSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | PC Pin | - | - | - | -15°C ~ 60°C |
|
13AL-060-0010-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-060-0020-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
13AL-060-0030-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-060-0040-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Orange | LED, Orange | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-090-0000-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-090-0010-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-090-0040-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Orange | LED, Orange | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
13AL-110-0000-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-110-0010-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
13AL-110-0020-XSWITCH PUSH SPST-NO 0.005A 5V |
0 |
|
- |
13AL | Tray | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
MSP103CG-ZSWITCH PUSH SPST-NO 25MA 20V |
0 |
|
Datasheet |
MSP | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 25mA (DC) | - | 20 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|

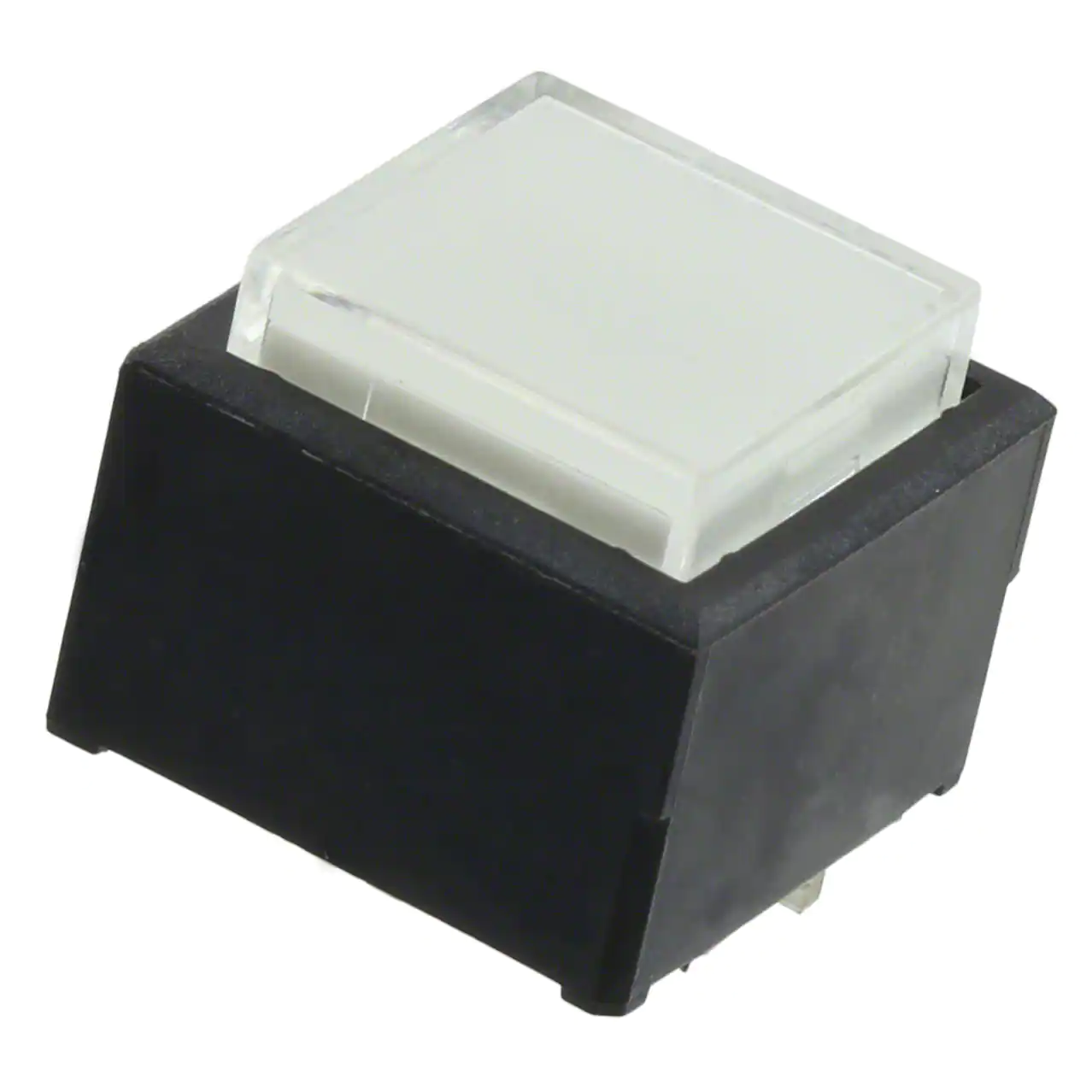

LP1S-16S-209-ZSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Red | 2 VDC | PC Pin | - | - | - | -15°C ~ 60°C |
