Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8P3011-ZSWITCH PUSHBUTTON 3PDT 6A 125V |
0 |
|
Datasheet |
8P | Bulk | Obsolete | Panel Mount, Rear | Standard | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
8P3021-ZSWITCH PUSHBUTTON 3PDT 6A 125V |
0 |
|
Datasheet |
8P | Bulk | Obsolete | Panel Mount, Rear | Standard | 3PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
8P4021-ZSWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
8P | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | Splash Proof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
15PB1SWITCH PUSHBUTTON SPDT 5A 115V |
0 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 5A (AC/DC) | 115 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | - | - |
|
|
15PB22SWITCH PUSHBUTTON DPDT 5A 115V |
0 |
|
Datasheet |
PB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 5A (AC/DC) | 115 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | - | - |
|
|
4PB11-T2SWITCH PUSH SPDTX4 5A 250V |
0 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 4 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Turret | - | - | - | - |
|
|
MML21EA3AAKSWITCH PUSHBUTTON BLACK SPDT |
0 |
|
- |
MML21 | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
MML21KA2BAKSWITCH PUSHBUTTON SPDT 0.25A 30V |
0 |
|
- |
MML21 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (DC) | - | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.20mm x 10.24mm | -18°C ~ 65°C |
|
|
MML21KA3ADKSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
- |
MML21 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 1A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | Rectangular - 15.20mm x 10.24mm | -18°C ~ 65°C |
|
|
MML21KA3BAKXXLKSWITCH PUSHBUTTON SPDT 0.25A 30V |
0 |
|
- |
MML21 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (DC) | - | 30 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | Rectangular - 15.20mm x 10.24mm | -18°C ~ 65°C |
|
|
MML23KA3AC05K-001SWITCH PUSHBUTTON BLACK DPDT |
0 |
|
- |
MML23 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
MML31KK2ACKLGSWITCH PUSH DPST-NO 6A 125V |
0 |
|
- |
MML31 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 6A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 15.20mm x 10.24mm | -18°C ~ 65°C |
|
|
AML32FBM7ADSWITCH PUSH DPST-NO 10A 125V |
0 |
|
Datasheet |
AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Green | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|

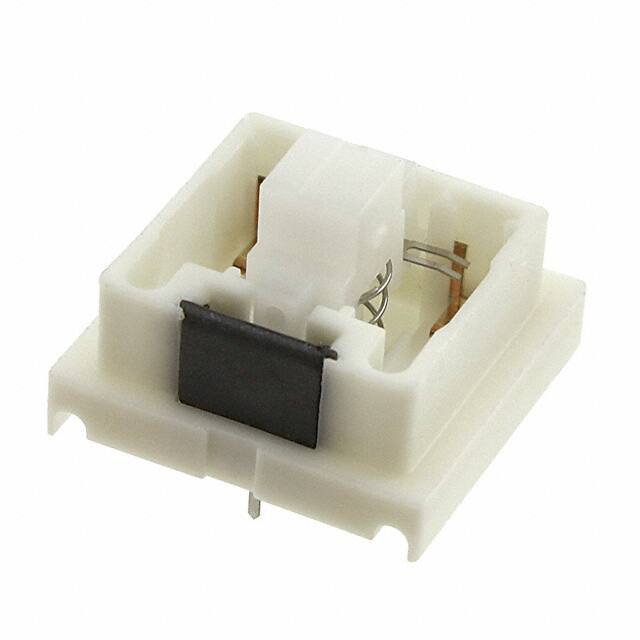

3.13.002.922/0000SWITCH PUSH SPST-NO 0.1A 42V |
0 |
|
Datasheet |
RS76 | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Plunger for Cap | No Marking | White | - | - | PC Pin | IP40 | - | - | -25°C ~ 70°C |
|

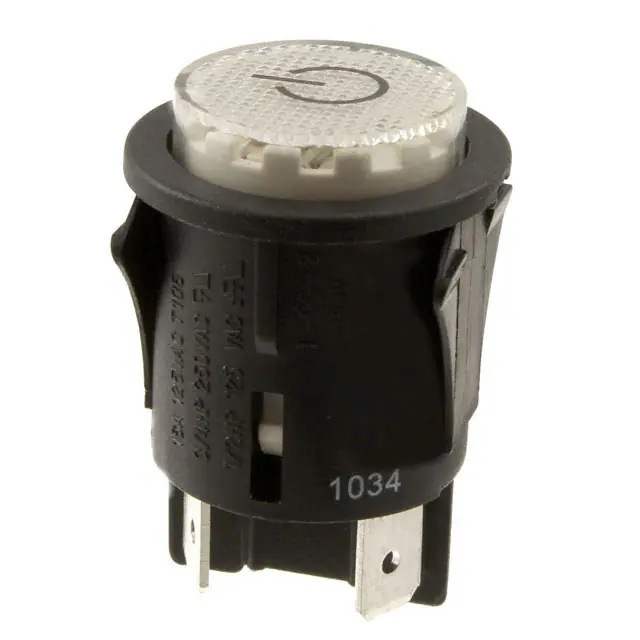

PR142C1011-107SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
- |
PR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Clear | Neon, Clear | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|

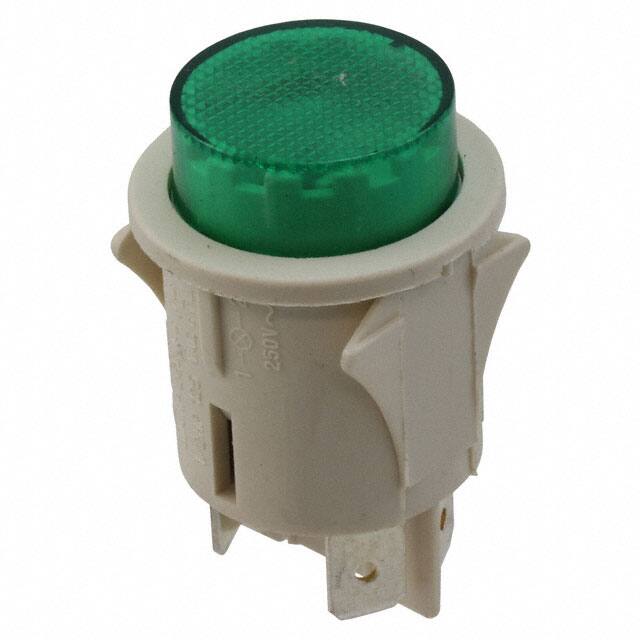

PR142C3000-136SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
- |
PR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PR142C1000-107/ACC-F03-1SWITCH PUSHBUTTON DPST 16A 125V |
0 |
|
- |
PR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Clear | Neon, Clear | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | PVC Cap and Frame | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
8121J95V3LE33SWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Red | LED, Red | 2.1 VDC | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8121J95V3LE55SWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.1 VDC | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8121J95V3LE66SWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
