Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5130310001SWITCH PUSHBUTTON DPST 3A 125V |
0 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.19mm x 22.10mm | - |
|
|
5541231311SWITCH PUSHBUTTON DPDT 7A 125V |
0 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.35mm x 19.18mm | - |
|

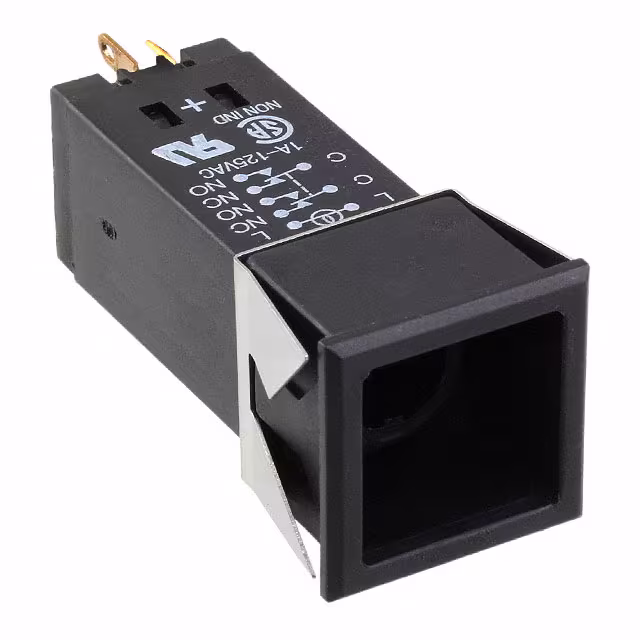

5542121211SWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.18mm x 19.18mm | - |
|
|
5542221311SWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.35mm x 19.18mm | - |
|
|
2PB32-T2SWITCH PUSH 2XSPDT 1A 30V |
0 |
|
Datasheet |
PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Turret | - | - | - | -55°C ~ 85°C |
|
|
2PB455-TSWITCH PUSH 2XSPDT 1A 30V |
0 |
|
Datasheet |
PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Silver | - | - | Solder Turret | - | - | - | -55°C ~ 85°C |
|
|
2PB589SWITCH PUSH 2XSPDT |
0 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | - | - | - | Round, Plunger | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
|
3PB11-H58SWITCH PUSH 3XSPDT 5A 250V |
0 |
|
Datasheet |
PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 3 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.058" (Round) | - | - | - | -55°C ~ 85°C |
|
|
AML21CBE2DC-001ELECT CONTROL PUSHBUTTON SWITCH |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
AML21CBE2DD-001ELECT CONTROL PUSHBUTTON SWITCH |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21KBA2ABSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Full Guard Bezel | Rectangular - 28.98mm x 19.05mm | - |
|
|
AML21KBA2AC-005ELECT CONTROL PUSHBUTTON SWITCH |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
AML21LBE2ADSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Full Guard Bezel | Rectangular - 28.98mm x 19.05mm | - |
|
|
AML21MBA3ADSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | PC Pin | - | Full Guard Bezel | Rectangular - 28.98mm x 19.05mm | - |
|
|
AML21MBE2CDSWITCH PUSHBUTTON 4PDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Full Guard Bezel | Rectangular - 28.98mm x 19.05mm | - |
|
|
AML22CBB3ADSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 2.4 VDC | PC Pin | - | - | Square - 19.05mm x 19.05mm | - |
|
8Y4011-ZSWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
8Y | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
8Y4021-ZSWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
8Y | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
8N1012-ZSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
8N | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
8P1022-ZSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
8P | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Splash Proof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
