Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

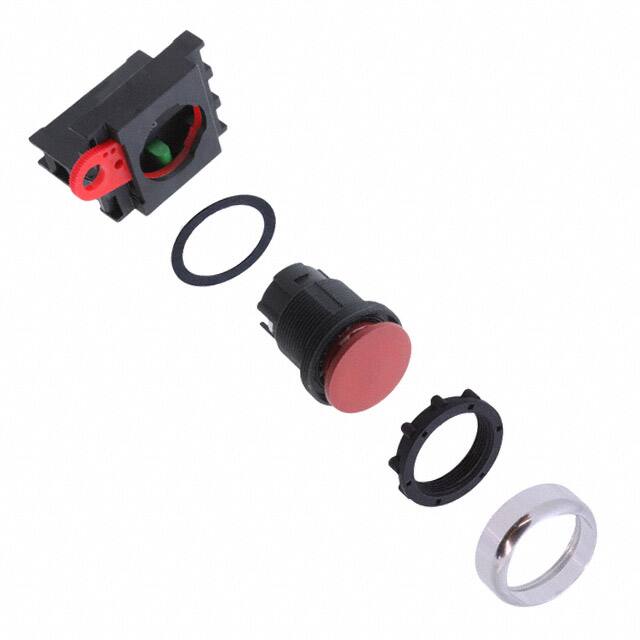

A22R-FR-10ASWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22R | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC) | 120 V | - | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
A22R-TR-10ASWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22R | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|

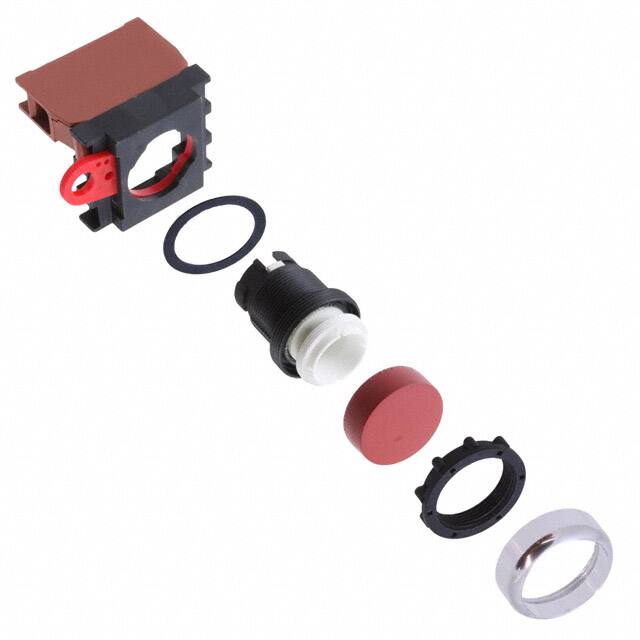

A22R-TR-01ASWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22R | Bulk | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
A22RL-TG-24A-10ASWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22RL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC) | 120 V | - | Round, Button | No Marking | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 50°C |
|
MB2061SS1A01-CASWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

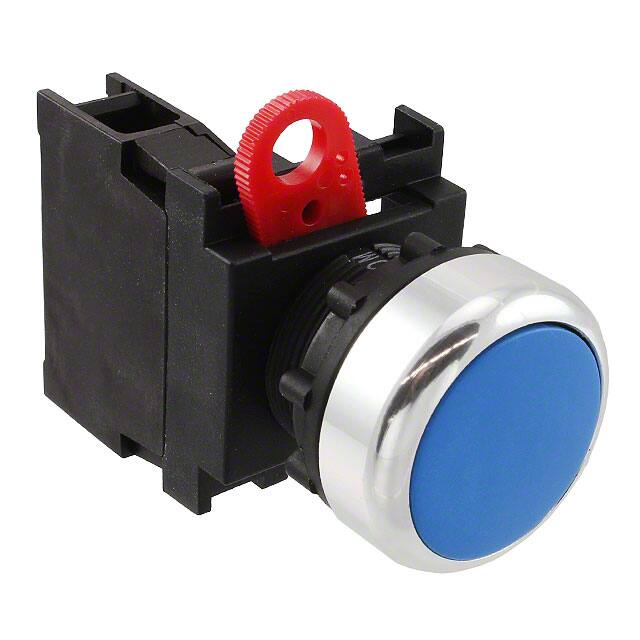

A22R-FA-10MSWITCH PUSH SPST-NO 10A 120V |
0 |
|
Datasheet |
A22R | Tray | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC) | 120 V | - | Round, Button, Flush | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
A22R-TB-01MSWITCH PUSH SPST-NC 10A 120V |
0 |
|
Datasheet |
A22R | Tray | Obsolete | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
AML21CBE2AASWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21EBA2ACSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML21FBA2ABSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML21FBA3BASWITCH PUSHBUTTON SPDT 0.1A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML22CBB2ACSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

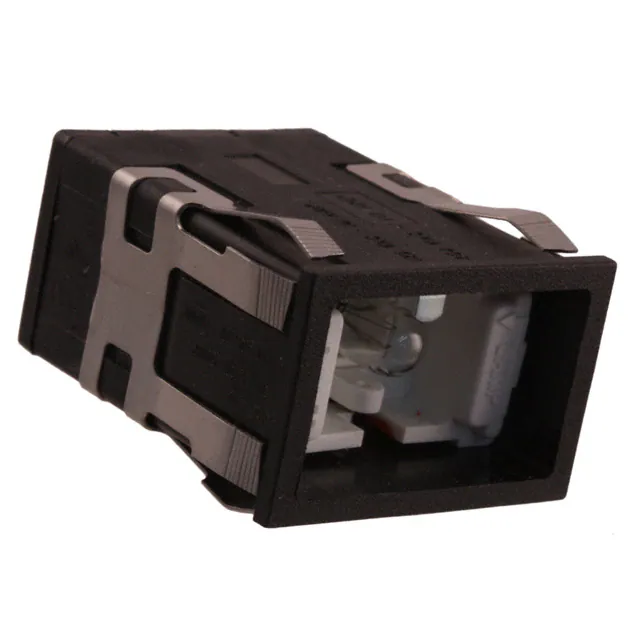

AML31FBE4ADSWITCH PUSH DPST-NO 10A 125V |
0 |
|
Datasheet |
AML31 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
|
TSPD11CGRA2SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TSP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
TPA21FFGPC004SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

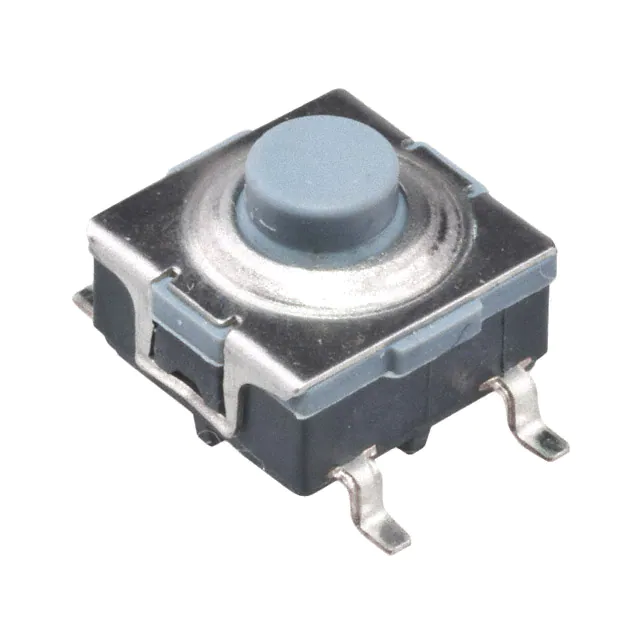

PWR70Q1SSWITCH PUSH SPST-NO 2A 125V |
0 |
|
Datasheet |
PWR | Tray | Obsolete | Surface Mount | Standard | SPST-NO | Off-Mom | 2A (AC) | 125 V | - | Round, Button, Rubber | No Marking | Blue | - | - | Gull Wing | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -20°C ~ 85°C |
|
|
PWR70Q2SSWITCH PUSH SPST-NO 5A 12V |
0 |
|
Datasheet |
PWR | Tray | Obsolete | Surface Mount | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 12 V | Round, Button, Rubber | No Marking | Blue | - | - | Gull Wing | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -20°C ~ 85°C |
|
GC-539-0001SWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
GC-539 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 1A (AC), 3A (DC) | 125 V | 14 V | Plunger for Cap | No Marking | - | - | - | Socketable | - | - | - | - |
|
GPB553A201BWSWITCH PUSH SPST-NO 10A 14V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
GPB553A201BUSWITCH PUSH SPST-NO 10A 14V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
