Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVA6RP24141SWITCH PB SPST-NO 2A 36V |
407 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Black | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
UB15SKW035F-FBLOW PROFILE PUSHBUTTON/ILLUMINAT |
4 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

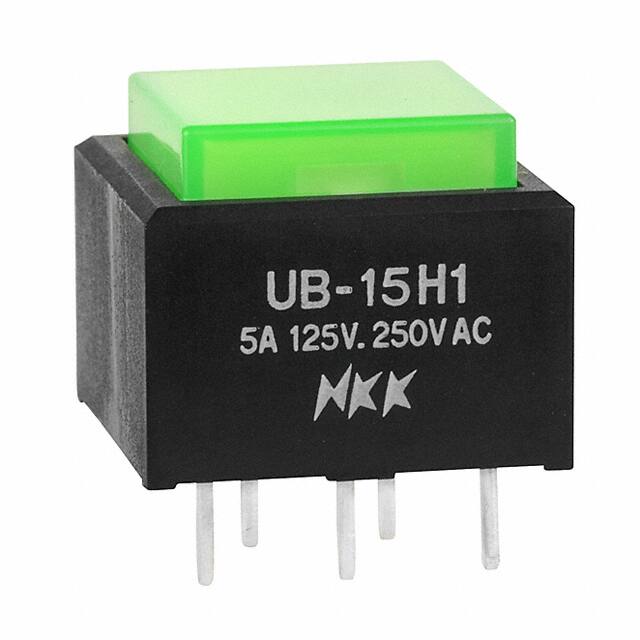

UB15SKW035F-FJSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKW035D-DDSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKW035D-DJSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

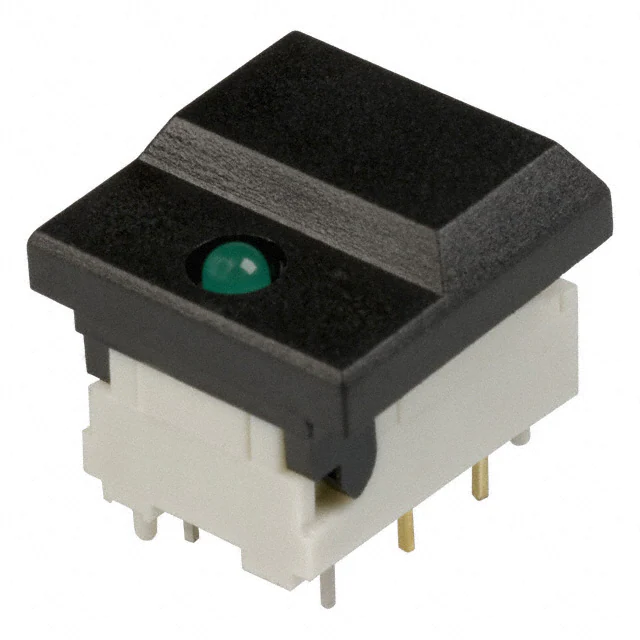

SETL BK GN 7.62 AU EESWITCH PUSH SPDT 0.01A 24V |
106 |
|
Datasheet |
DIGITAST | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
W22DPB-ERFG-01/1022MM DPB EXTRD-B FLSHGN-T NCNO |
192 |
|
Datasheet |
22 | Bag | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 2.5A (DC) | 72 V | 28 V | Round, Button, Dual | No Marking | Red, Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.50mm Dia | -40°C ~ 55°C |
|
|
MB2011LD3W01-BCSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
2-1825097-2SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
MB2011LD3W01-CHSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Gray | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
SA-1B-DC-3-GL-PSWITCH PB ENGINE START GRN |
480 |
|
Datasheet |
SA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50A (DC) | - | 12 V | Round, Button | Engine Start Symbol | Green | LED, Green | 12 VDC | Screw Terminal | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
SA-1B-DC-3-UL-PSWITCH PB ENGINE START BLU |
169 |
|
Datasheet |
SA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50A (DC) | - | 12 V | Round, Button | Engine Start Symbol | Blue | LED, Blue | 12 VDC | Screw Terminal | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
SA-1B-DC-3-RL-PSWITCH PB ENGINE START RED |
131 |
|
Datasheet |
SA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50A (DC) | - | 12 V | Round, Button | Engine Start Symbol | Red | LED, Red | 12 VDC | Screw Terminal | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
|
YB15RKW01/CULSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB15CKW01/CULSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

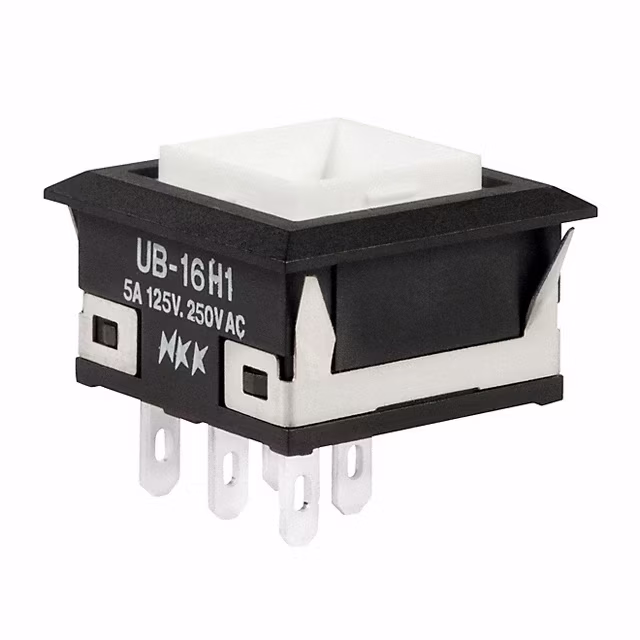

UB16KKW015CSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
M6P-AMS2-RPB-MOM-DPDT-RED |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | Panel Mount, Front | Standard | DPDT | On-On | 2A (AC), 400mA (DC) | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
M6P-AMS2-YPB-MOM-DPDT-YELLOW |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | Panel Mount, Front | Standard | DPDT | On-On | 2A (AC), 400mA (DC) | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
NS22-DM-1A01B22mm PUSH BUTTON |
1,990 |
|
Datasheet |
NS22 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO + SPST-NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 250 V | 250 V | Rectangular, Button, Flush | - | Red, Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
UB15KKG015C-CJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
