Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP0115ACBKG03RGBP-2SJBSWITCH PB MINI ILLUMINATED RGB |
0 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0115ACBKG03RGBP-3FJBSWITCH PB MINI ILLUMINATED RGB |
0 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0115ACBKG03RGBP-3SJBSWITCH PB MINI ILLUMINATED RGB |
0 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
A9PS26-0013SWITCH PUSH DPST-NO 0.1A 28V |
212 |
|
Datasheet |
A9PS | Bulk | Last Time Buy | Through Hole, Right Angle, Vertical | Standard | DPST-NO | Off-Mom | 100mA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP64 - Dust Tight, Water Resistant | Sealed - Flux Protection | - | -20°C ~ 80°C |
|
|
MB2411E1W01-HBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
2-1571990-7SWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
TSP | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15AA5G30-FASWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15AA5G30-FBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15AA5G30-HCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
M2B15AA5G30-HASWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
MB2011SA2W31-BASWITCH PUSHBUTTON SPDT 6A 125V |
1,140 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
UB15NBKG01N-BSWITCH PUSH SPDT 0.4VA 28V |
8 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
MB2065SS2W30-CASWITCH PUSHBUTTON SPDT 6A 125V |
322 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2411E1W13-HASWITCH PUSHBUTTON SPDT 3A 125V |
119 |
|
Datasheet |
MB2400 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2411E1W13-HCSWITCH PUSHBUTTON SPDT 3A 125V |
119 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
KP0215ACBKG03RGBP-2SJBSWITCH PB MINI ILLUMINATED RGB |
1 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0215ASBKG03RGBP-2SJBSWITCH PB MINI ILLUMINATED RGB |
0 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile/Audible Feedback | - | -25°C ~ 50°C |
|

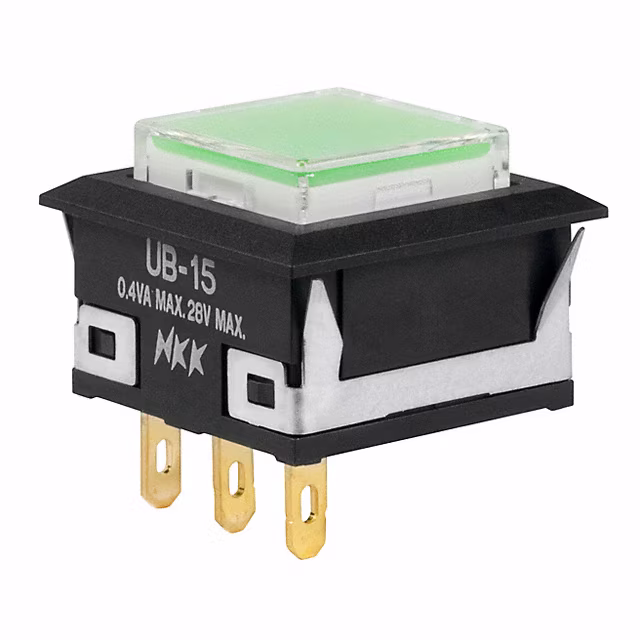

UB15KKG01N-JFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
UB15KKG01N-JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
TPB11FGRAES0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
