Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

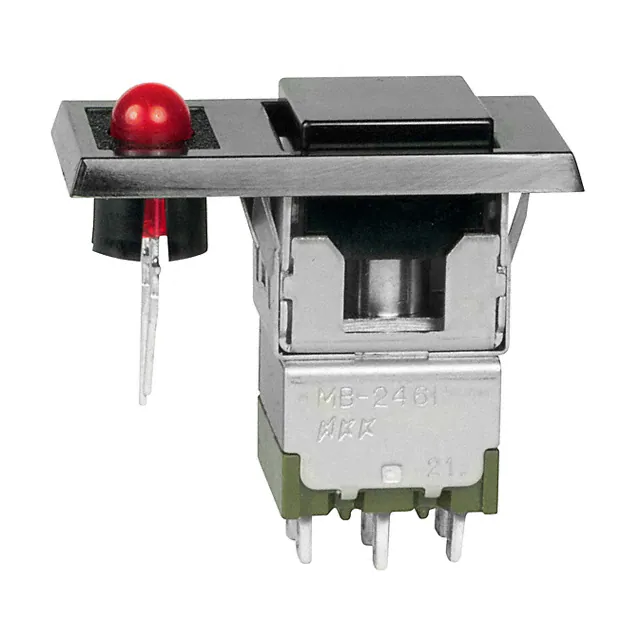

MB2461JW01-A-2A-CSWITCH PUSHBUTTON DPDT 3A 125V |
204 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 13.10mm | -30°C ~ 85°C |
|
MB2011SS1W03-BCSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SS4W01-CAMINIATURE PUSHBUTTON/MULTI-FUNCT |
0 |
|
Datasheet |
MB2000 | Tray | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SS4W01-CCMINIATURE PUSHBUTTON/MULTI-FUNCT |
0 |
|
Datasheet |
MB2000 | Tray | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SS4W01-CFBUSHING MOUNT MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Green | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
EB2065-A-J32ACSWITCH PUSHBUTTON SPDT 3A 125V |
158 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|

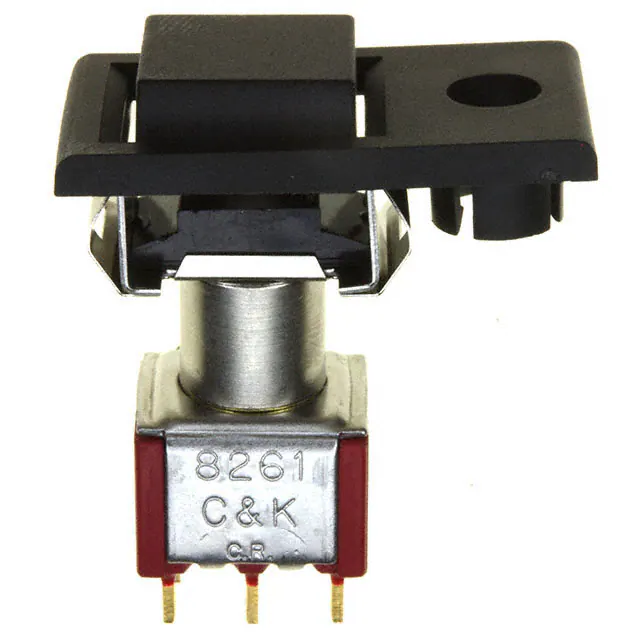

8261J82ZGE22SWITCH PUSHBUTTON DPDT 6A 120V |
157 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
UB15SKG035F-JJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKG035C-JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15SKG035C-CJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
MB2061SS1W03/U-BCSWITCH PUSHBUTTON DPDT 6A 125V |
148 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SB3G03-DASWITCH PUSH SPDT 0.4VA 28V |
1 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
SA-1B-DC-3-RLSWITCH PB ENGINE START RED |
673 |
|
Datasheet |
SA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50A (DC) | - | 12 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Screw Terminal | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|
K16-382-B-24VDC16MM SWITCH PUSH SQARE DPDT BLUE |
173 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | Blue | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
UB15KKW015F-JBSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB15KKW015F-JJSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

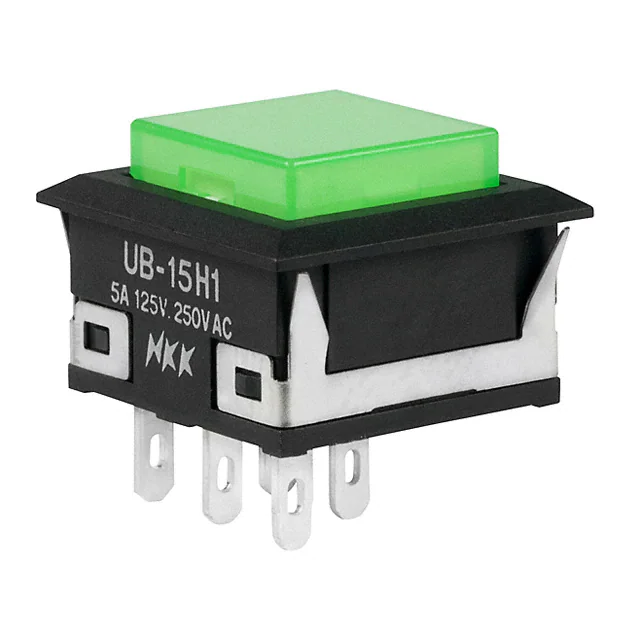

UB15KKW015F-FBSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB15KKW015F-FJSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
M22FP-MSF01-E30-GFLAT PB-MOM-1B-LED-GREEN |
750 |
|
Datasheet |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 12 ~ 30 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
MB2011SD3W01-BBSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
