Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA3B-M1C5-Y16MM PUSHBUTTON YELLOW |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Rectangular, Button | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA2B-M1C5-B16MM PUSHBUTTON BLACK |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
LA2B-M1C5-R16MM PUSHBUTTON RED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
TP21FFGRA0SWITCH PUSH 2XSPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT x 2 | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
QPM1B5M9-TSWITCH PB SPST-NO 10A 250VAC |
0 |
|
Datasheet |
Q | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Blue | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
QPM1B4M9-TSWITCH PB SPST-NO 10A 250VAC |
0 |
|
Datasheet |
Q | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Green | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
QPM1B3M9-TSWITCH PB SPST-NO 10A 250VAC |
0 |
|
Datasheet |
Q | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Amber | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
QPM1B7M9-TSWITCH PB SPST-NO 10A 250VAC |
0 |
|
Datasheet |
Q | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | White | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

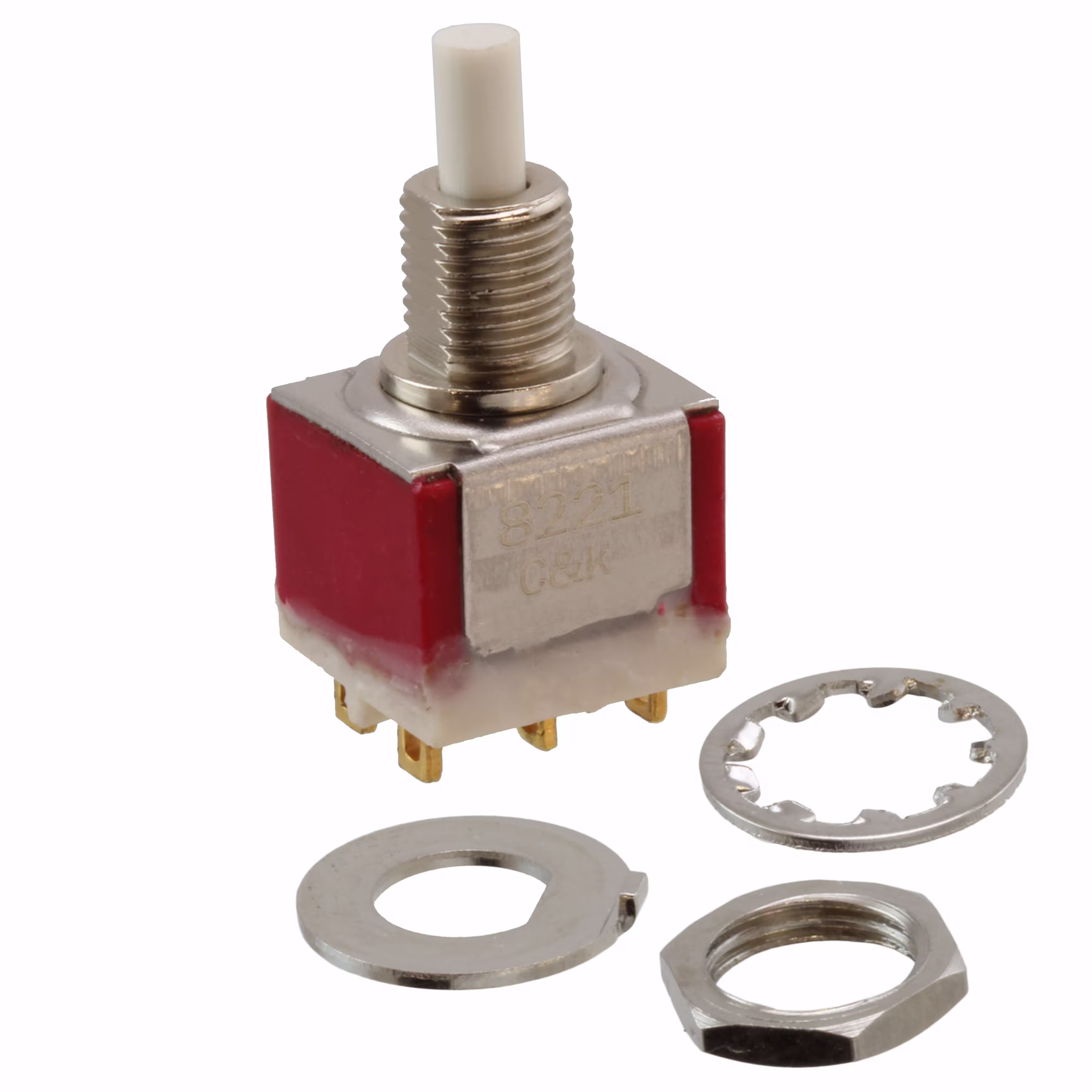

8221SHZGISWITCH PUSHBUTTON DPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
172-CBLSWITCH PUSH BUTTON |
0 |
|
- |
172 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round, Button | - | Black | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
3-145-593MSM-30 SWITCH |
0 |
|
- |
MSM II | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LB15RKG01-BJSTANDARD SIZE SNAP-IN PUSHBUTTON |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
AV19401ZBESWITCH PUSH SPST 0.4VA 20V |
0 |
|
- |
AV | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 85°C |
|
|
PV4F2B0SSG-324SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Orange | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4F2B0SSG-354SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Yellow | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4F2B0SSG-334SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV4F2B0SSG-344SWITCH PB SPDT 2A 24V |
0 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
ULV7FWG11315SWITCH PB DPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
ULV8FM3SS315SWITCH PB SPDT 3A 125V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
ULV8FM3SS311SWITCH PB SPDT 3A 125V |
0 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
