Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULV7FPB11345SWITCH PB SPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Black | LED, Blue | 24 VDC | Wire Leads with Connector | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
ULV7FW3SS345Switches |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
YB16CKW01-1CF02-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
- |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
8221J82ZGE22SWITCH PUSHBUTTON DPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
UB215SKG036CF-2BSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed | - | -25°C ~ 50°C |
|
|
EB2085-C-J33ACSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
ULV4FP3SS3G5Switches |
0 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green/Red | 24 VDC | Wire Leads with Connector | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
ULV7FWGSS355SWITCH PB DPDT 3A 125V |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Yellow | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
PA951SWITCH PUSH BUTTON |
0 |
|
- |
P | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST | On-Off | 15A (AC) | 125 V | - | Round, Plunger, Metal | - | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
P16OAR1HREDREDSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | No Marking | Red | LED, Red | 6 VDC | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
PVHC7F2B11314ANTI-VANDAL, 20A, SPST, OFF-(ON) |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9435CDKBPUSHBUTTON SWITCH 9100 METAL |
0 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
LASOAV11HGRNWHTSWITCH PUSHBUTTON SPDT 8A 125V |
0 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | White | LED, Green | 6 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
D16EER12GGRNGRNSWITCH PUSHBUTTON DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Green | Neon, Green | 220 VAC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EES22FREDREDSWITCH PUSHBUTTON DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button, Flush | No Marking | Red | Neon, Red | 110 VAC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EET12FGRNGRNSWITCH PUSHBUTTON DPDT 8A 125V |
0 |
|
Datasheet |
D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button | No Marking | Green | Neon, Green | 110 VAC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
LASOAV120REDSWITCH PUSHBUTTON DPDT 8A 125V |
0 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|

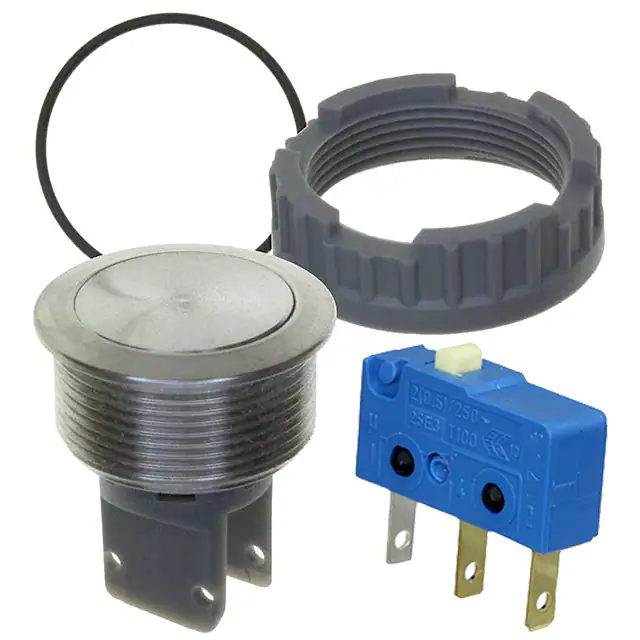

1241.6631.1110000SWITCH PUSHBUTTON SPDT 100MA 30V |
0 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
1241.6631.1130000SWITCH PUSHBUTTON SPDT 10A 250V |
0 |
|
Datasheet |
MSM | Tray | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
MSPM101CS1SWITCH PUSHBUTTON SPST-NO 100MA |
0 |
|
Datasheet |
MSPM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Audible Click | Circular - 6.35mm Dia | -10°C ~ 80°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
