Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS1-223BSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
PS | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
PS72-200GSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
PS | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
YB16RKW01-1F12-JFSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
MBN12SS2W30-CCBRACKET PC MOUNT MINIATURE PUSHB |
0 |
|
- |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
P16EES11HYELWHTSWITCH PB SPDT 8A 125V |
0 |
|
Datasheet |
P16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | - | White | LED, Yellow | 6 VDC | Solder, Quick Connect - 0.079" (2.0mm) | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
170-B-CBLSWITCH PUSH BUTTON |
0 |
|
- |
170 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
AL1H-M11-GRCT LED PB SPDT IP40 |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Rectangular, Button | - | Green | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
AL1H-M11JW10MM RECT MOM LED PB SPDT |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Rectangular, Button | - | White | LED, White | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
AL1H-M11-RRCT LED PB SPDT IP4 |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Rectangular, Button | - | Red | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
AL1H-M11-ARCT LED PB SPDT IP4 |
0 |
|
Datasheet |
A2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 24 V | Rectangular, Button | - | Amber | LED, Amber | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
30-601 BLK-EWSWITCH PUSH SPST-NO 0.15A 5V |
0 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 5 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | Epoxy Sealed Terminals | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
UB16KKG015C-ABSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB25SKW035C-ABSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

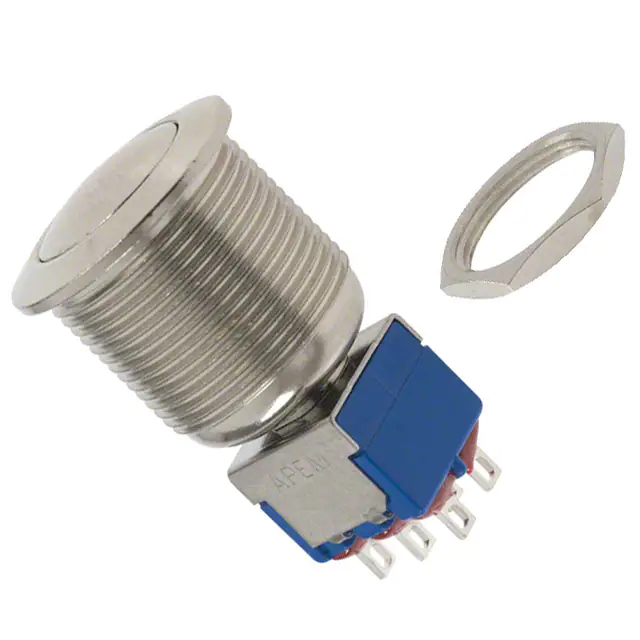

AV19820KMZQSWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
AV | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 6A (AC) | 125 V | - | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1G01-EBLARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1G01-EALARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1G01-EFLARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Green | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SB1G01-ECLARGE BUSHING MINIATURE PUSHBUTT |
0 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
ULV7FWBSS3G4Switches |
0 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
PNP8S3D2WW2GELinear IC's |
0 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Round, Button, Domed | - | Red | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
