Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPA-730B-001DSENSOR 1PSID 0.12" 14BIT 14SOIC |
94 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | 1PSI (6.89kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NPA-730N-030ASENSOR 30PSIA 14BIT 14SOIC |
106 |
|
Datasheet |
NPA-730 | 14-SOIC Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | - | No Port | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NPA-730B-015ASENSOR 15PSIA 0.12" 14BIT 14SOIC |
70 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NPA-730B-030ASENSOR 30PSIA 0.12" 14BIT 14SOIC |
54 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NPA-730B-005DSENSOR 5PSID 0.12" 14BIT 14SOIC |
30 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | 5PSI (34.47kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
ELVH-100G-HAND-C-PSA4SENSOR 100.08PSIG 0.19" 14BIT |
75 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Gauge | 100PSI (689.48kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 200PSI (1379kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-015D-HAND-C-P2A4SENSOR 14.94PSID 0.19" 14BIT |
28 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Differential | -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 30.02PSI (207kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-L02D-HRRD-C-NSA4SENSOR 0.07PSID 0.06" 14BIT 8DIP |
13 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | 0.07PSI (0.5kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 9.72PSI (67kPa) | 0°C ~ 50°C | - | - | Through Hole | 8-DIP |
|
SSCDRNN160MDAA5SENSOR 2.32PSID 0.08" 4.5V 8DIP |
67 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Active | Board Mount | Differential | ±2.32PSI (±16kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ELVH-L10D-HRRH-I-N5A4SENSOR 0.36PSID 0.06" 14BIT |
10 |
|
Datasheet |
ELV | 4-SIP, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|
HSCMRRN015PD2A3SENSOR 15PSID 0.08" 12BIT 8SMD |
68 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±60PSI (±413.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SEN0343SENSOR 0.07PSID 0.12" |
13 |
|
Datasheet |
- | Module | Bulk | Active | - | Differential | ±0.07PSI (±0.5kPa) | Digital | - | ±1.5% | 3.3V ~ 5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | - | - | -40°C ~ 85°C | - | - | - | - |
|
CP201-SM04-RSENSOR 0.87PSID 0.08" 16BIT |
45 |
|
Datasheet |
CP | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential, Gauge | 0.04PSI ~ 0.36PSI (0.25kPa ~ 2.5kPa), 0.29PSI ~ 0.87PSI (2kPa ~ 6kPa) | I2C, SPI | 16 b | ±0.05% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 36.26PSI (250kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-030G-HAND-I-NAA5SENSOR 30.02PSIG 0.19" |
12 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Gauge | 30PSI (206.84kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 60.05PSI (414kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|

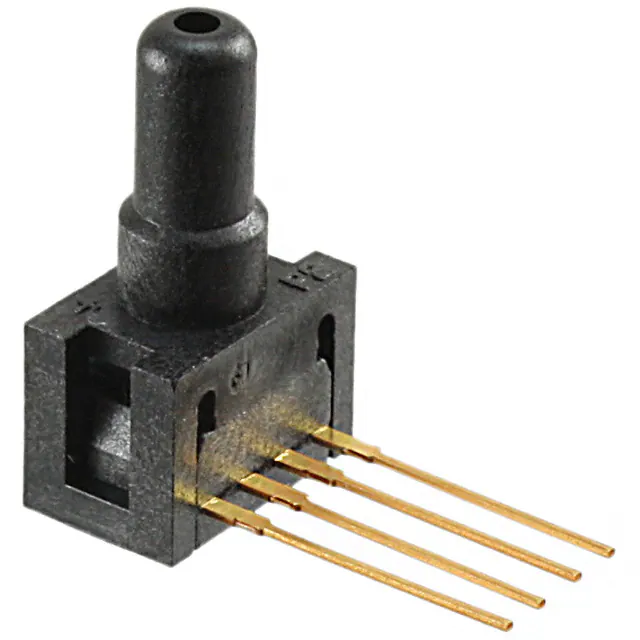

24PCGFA6GSENSOR 250PSIC 0.2" .212V |
27 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
NSCSSNN100PAUNVSENSOR 100PSIA .063V 4SIP |
68 |
|
Datasheet |
TruStability® NSC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 63 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NPC-1210-015A-3-SSENSOR 15PSIA 0.13" 0.1V |
15 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
1 PSI-D-CGRADE-MVSENSOR 1PSID 0.19" .018V |
28 |
|
Datasheet |
AXCX | 6-SIP Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
NSCSHHN001PDUNVSENSOR 1PSID 0.16" .065V 4SIP |
98 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
TBFLPNS030PGUCVSENSOR 30PSIG .02625V 6SMD |
25 |
|
Datasheet |
TBF | 6-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 26.25mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 115PSI (792.9kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
