Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS20-G2CF8-00SENSOR 2844.67PSIG G3/8" .02A |
26 |
|
Datasheet |
TPS20 | Cylinder, Threaded | Box | Active | Industrial Automation | Gauge | 2844.67PSI (19613.3kPa) | Analog Current | 4 ~ 20 mA | ±0.3% | 15V ~ 35V | Male - G3/8" (9.525mm) PF | Threaded | - | DIN | 8534.01PSI (58839.90kPa) | -10°C ~ 70°C | - | - | - | - |
|
PT40-5000PSIG-1-1-2-7High Accuracy Fixed Range Pressu |
40 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 5000PSI (34473.79kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 10000PSI (68947.57kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-200PSIG-1-1-2-7High Accuracy Fixed Range Pressu |
35 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 600PSI (4136.85kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-10000PSIG-1-2-2-7High Accuracy Fixed Range Pressu |
29 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 10000PSI (68947.57kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 20000PSI (137895.15kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-200PSIG-1-1-2-25High Accuracy Fixed Range Pressu |
35 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 600PSI (4136.85kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-10000PSIG-1-2-2-25High Accuracy Fixed Range Pressu |
29 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 10000PSI (68947.57kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 20000PSI (137895.15kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-5000PSIG-2-1-2-7High Accuracy Fixed Range Pressu |
40 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 5000PSI (34473.79kPa) | Analog Current | 4 ~ 20 mA | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 10000PSI (68947.57kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-200PSIG-2-1-2-7High Accuracy Fixed Range Pressu |
35 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | Analog Current | 4 ~ 20 mA | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 600PSI (4136.85kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-10000PSIG-2-2-2-7High Accuracy Fixed Range Pressu |
29 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 10000PSI (68947.57kPa) | Analog Voltage | 0 V ~ 5 V | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 20000PSI (137895.15kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-5000PSIG-2-1-2-25High Accuracy Fixed Range Pressu |
40 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 5000PSI (34473.79kPa) | Analog Current | 4 ~ 20 mA | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 10000PSI (68947.57kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-200PSIG-2-1-2-25High Accuracy Fixed Range Pressu |
35 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 200PSI (1378.95kPa) | Analog Current | 4 ~ 20 mA | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 600PSI (4136.85kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
PT40-10000PSIG-2-2-2-25High Accuracy Fixed Range Pressu |
29 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 10000PSI (68947.57kPa) | Analog Voltage | 0 V ~ 5 V | ±0.125% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 20000PSI (137895.15kPa) | -20°C ~ 80°C | - | - | - | - |
|
2SMPP03SENSOR 7.25PSIC 0.1" .042V |
99 |
|
Datasheet |
2SMPP | 6-SMD Module | Tube | Active | Board Mount | Compound | ±7.25PSI (±50kPa) | Analog Voltage | -43 mV ~ 42 mV | ±0.5% | - | Male - 0.1" (2.59mm) Tube | Barbless | - | Gull Wing | -11.6PSI ~ 17.4PSI (-80kPa ~ 120kPa) | -10°C ~ 100°C | - | - | Surface Mount | - |
|

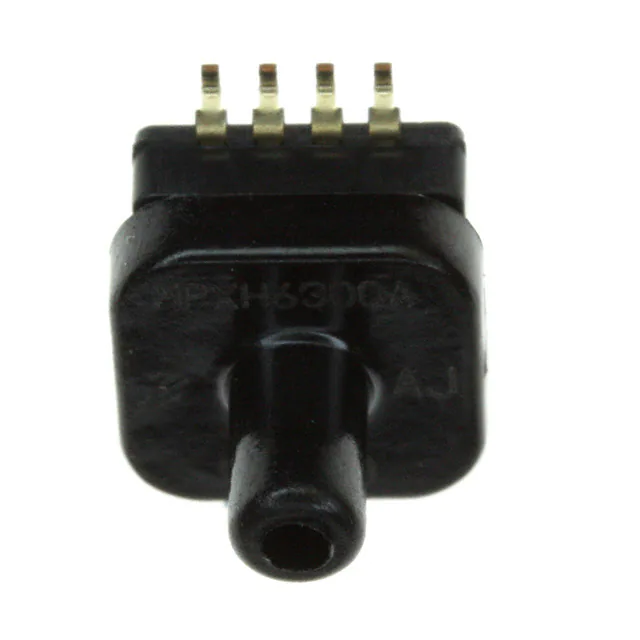

MPXH6300AC6T1SENSOR 44.09PSIA 0.13" 4.9V SSOP |
117 |
|
Datasheet |
MPXH6300A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.9PSI ~ 44.09PSI (20kPa ~ 304kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.74V ~ 5.46V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 174.05PSI (1200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPX2100APSENSOR 14.5PSIA 0.19" .04V |
73 |
|
Datasheet |
MPX2100 | 4-SIP Module | Tray | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX2050DSENSOR 7.25PSID .04V |
20 |
|
Datasheet |
MPX2050 | 4-SIP Module | Tray | Active | Board Mount | Differential | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX2200DPSENSOR 29.01PSID 0.19" .04V |
25 |
|
Datasheet |
MPX2200 | 4-SIP Module | Tray | Active | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±0.25% | 10V ~ 16V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPXV5010DPSENSOR 1.45PSID 0.13" 4.7V 8SOP |
32 |
|
Datasheet |
MPXV5010 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
NBPLANN150PAUNVSENSOR 150PSIA 0.11" .13V |
7 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 130 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | - | SMD (SMT) Tab | 240PSI (1654.74kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ABP2DSNT150PGAA5XXSENSOR 150PSIG 0.107" 4.5V 6DIP |
83 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Top Port | Box | Active | - | Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.107" (2.72mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 240PSI (1654.74kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
