Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXA4250AC6USENSOR 36.26PSIA 0.13" 4.9V |
40 |
|
Datasheet |
MPXA4250A | 8-SMD, Gull Wing, Top Port | Tube | Not For New Designs | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.85V ~ 5.35V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ABP2LNNT400KA2A3XXSENSOR 58.02PSIA 14BIT 6SMT |
64 |
|
- |
ABP2 | 6-SMD, No Lead | Box | Active | - | Absolute | 58.02PSI (400kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
BPS120-AD01P0-2DGSENSOR 1PSID 0.087" 13BIT 8SMD |
45 |
|
Datasheet |
BPS120 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | Board Mount | Differential | 1PSI (6.89kPa) | Digital - I2C | 13 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
NPA-700B-001DSENSOR 1PSID 0.12" 14BIT |
137 |
|
Datasheet |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 1PSI (6.89kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
NSCDRRN001PDUNVSENSOR 1PSID 0.08" .065V 8DIP |
7 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SDP610-125PASENSOR 0.018PSID 0.2" 16BIT 3SIP |
79 |
|
Datasheet |
SDP600 | 3-SIP Module | Tray | Not For New Designs | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | I2C | 16 b | ±3% | 3V ~ 3.6V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C | - | - | Through Hole | 3-SIP |
|
ELVH-030A-HRNJ-I-NAA5SENSOR 30.02PSIA 0.06" |
25 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Side Port | Tray | Active | - | Absolute | 30PSI (206.84kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | J Lead | 60.05PSI (414kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
HSCDANN150PASA5SENSOR 150PSIA 0.19" 12BIT 8DIP |
100 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
15 PSI-D-HGRADE-MVSENSOR 15PSID 0.19" .09V |
54 |
|
Datasheet |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCSAAN010NDAA5SENSOR 0.36PSID 0.19" 4.5V 4SIP |
30 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
10 INCH-D1-MV-MINISENSOR 0.36PSID 0.08" .02V |
10 |
|
Datasheet |
MDCX | 4-SIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
26PCAFA6DSENSOR 1PSID 0.2" .0167V |
13 |
|
Datasheet |
26PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
100 PSI-D-4V-ASCXSENSOR 100PSID 0.19" 4.75V 4SIP |
5 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±150PSI (±1034.21kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
SDP2000-LSENSOR 0.508PSID 0.2" 4V MODULE |
2 |
|
Datasheet |
SDP2000 | Module | Tray | Not For New Designs | Board Mount | Differential | -0.015PSI ~ 0.508PSI (-0.1kPa ~ 3.5kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.2% | 4.75V ~ 5.25V | Male - 0.2" (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -10°C ~ 60°C | - | - | - | Module |
|
1 INCH-D-4VSENSOR 0.04PSID 0.19" 4.25V |
25 |
|
Datasheet |
ADCA | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
89BSD-028BA-ASENSOR 406.11PSIA 5/16" 24BIT |
16 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 406.11PSI (2800kPa) | I2C | 24 b | ±0.3% | 1.8V ~ 3.6V | Male - 5/16" (7.94mm) UNEF | Threaded | - | Cable with Connector | 812.21PSI (5600kPa) | -40°C ~ 85°C | - | - | - | - |
|
PQ7834SENSOR 145.0PSI 1/4" |
7 |
|
Datasheet |
- | Module | Box | Active | - | Vacuum | 14.5PSI ~ 145.0PSI (100kPa ~ 1000kPa) | PNP- NC/NO | - | ±0.5% | 18V ~ 32V | Female - 1/4" (6.35mm) G | Threaded | - | Connector | 435.11PSI (3000kPa) | 0°C ~ 70°C | - | - | - | - |
|
19C015PA4KSENSOR 15PSIA 1/8"NPT 0.1V |
19 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
19C030PA4KSENSOR 30PSIA 1/8"NPT 0.1V |
15 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|

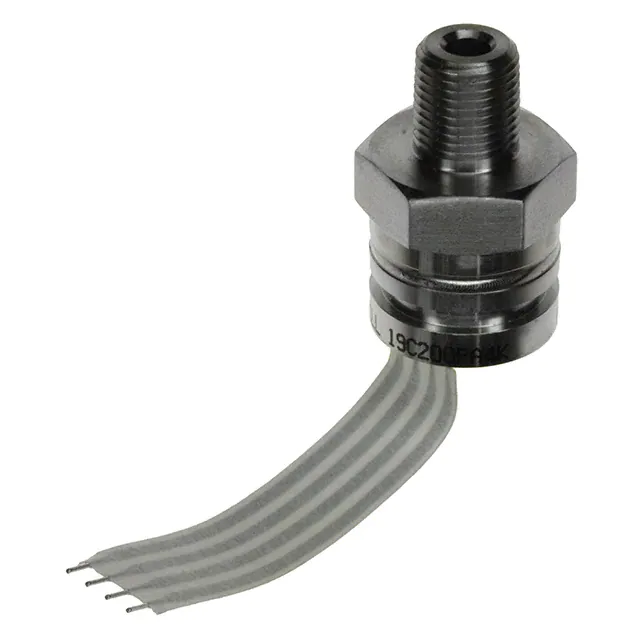

19C200PA4KSENSOR 200PSIA 1/8"NPT 0.1V |
12 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
