Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM156LARGE 25VDC/0.25A RECTANGULAR P |
12 |
|
Datasheet |
- | Module | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Wire Leads | - | -10°C ~ 70°C | - | - | - | - |
|
MPVZ5004GW7USENSOR 0.57PSIG 0.22" 4.9V |
14 |
|
Datasheet |
MPVZ5004G | 8-DIP Module | Tube | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | Male - 0.22" (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Through Hole | - |
|
MPXV5004GC6USENSOR 0.57PSIG 0.13" 4.9V |
45 |
|
Datasheet |
MPXV5004 | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | - | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | - |
|
ABP2LANT001PG2A3XXSENSOR 1PSIG 0.11" 14BIT 6SMT |
24 |
|
- |
ABP2 | 6-SMD, No Lead, Top Port | Box | Active | - | Vented Gauge | 1PSI (6.89kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
MPXA6115AC7USENSOR 16.68PSIA 0.13" 4.7V 8DIP |
15 |
|
Datasheet |
MPXA6115A | 8-DIP (0.550", 13.97mm), Top Port | Tube | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
|
ABP2LANT010BG2A3XXSENSOR 145PSIG 0.11" 14BIT 6SMT |
52 |
|
- |
ABP2 | 6-SMD, No Lead, Top Port | Box | Active | - | Vented Gauge | 145.04PSI (1000kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
|
ABP2LANG004BG2A3XXSENSOR 58.02PSIG 0.11" 14BIT SMT |
39 |
|
- |
ABP2 | 6-SMD, No Lead, Top Port | Box | Active | - | Gauge | 58.02PSI (400kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.79mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|

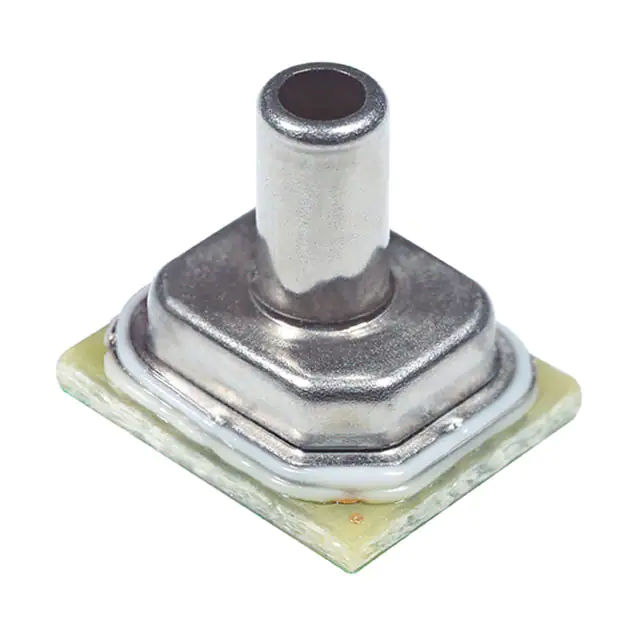

ABP2LSNT010BG2A3XXSENSOR 145PSIG 0.11" 14BIT 6SMD |
38 |
|
- |
ABP2 | 6-SMD Module, No Lead | Tube | Active | - | Vented Gauge | 145.04PSI (1000kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
ABP2DRRT001PDAA3XXSENSOR 1PSID 0.063" 2.97V 6DIP |
34 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Dual Ports, Same Side | Tube | Active | - | Differential | -1PSI ~ 1PSI (-6.89kPa ~ 6.89kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.063" (1.6mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
ABP2DANT001PGAA5XXSENSOR 1PSIG 0.108" 4.5V 6DIP |
28 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Top Port | Box | Active | - | Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.108" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
|
VN-BAROABS PRESSURE 350 TO 100 MBAR |
82 |
|
Datasheet |
VN | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | - | 5.08PSI ~ 15.95PSI (35kPa ~ 110kPa) | I2C, SPI | 24 b | ±0.05% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | - | -20°C ~ 85°C | - | - | Surface Mount | - |
|
BLC-L20D-U2SENSOR 0.72PSIG 0.12" .038V |
20 |
|
Datasheet |
BLC | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.72PSI (±4.98kPa) | Analog Voltage | 0 mV ~ 38 mV | ±0.5% | 0.9V ~ 1.8V | Male - 0.12" (3mm) Tube | Barbless | - | Gull Wing | 7.25PSI (50kPa) | -25°C ~ 85°C | - | - | Surface Mount | - |
|
|
ND015DSENSOR 15PSID 0.08" 16BIT |
98 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 15PSI (103.42kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 35PSI (241.32kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
ND005D-SM02-RSENSOR 5PSID 0.08" 16BIT |
10 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | 0.5PSI ~ 5PSI (3.45kPa ~ 34.47kPa) | I2C, SPI | 16 b | ±0.07% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 15PSI (103.42kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
NPA-500B-05WDSENSOR 0.18PSID 0.12" 4.5V |
10 |
|
Datasheet |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-700B-015ASENSOR 15PSIA 0.12" 14BIT |
62 |
|
Datasheet |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
SSCDRRN005PD2A5SENSOR 5PSID 0.08" 12BIT 8DIP |
83 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ABPMJJT015PGAA5SENSOR 15PSIG 0.07" 4.5V 6SMD |
6 |
|
Datasheet |
ABP | 6-SMD Module | Bulk | Active | Medical Ventilation | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.07" (1.88mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
ABP2DDAN005NDAA5XXSENSOR 0.18PSID 0.12" 4.5V 6DIP |
6 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Dual Top Ports | Box | Active | - | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.75PSI (67.25kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
DLHR-L02D-E1BD-C-NAV8SENSOR 0.07PSID 0.09" 18BIT 8DIP |
29 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
