Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPVZ5150GC7USENSOR 21.76PSIG 0.13" 4.7V 8DIP |
0 |
|
Datasheet |
MPVZ5150 | 8-DIP (0.550", 13.97mm), Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 21.76PSI (150kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
MPVZ7025DPSENSOR 3.63PSID 0.13" 4.7V 8SOP |
0 |
|
Datasheet |
MPXV7025 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Obsolete | Board Mount | Differential | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPX4400ASENSOR 58.02PSIA |
0 |
|
- |
- | - | Tray | Obsolete | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | - | ±1.5% | 4.85V ~ 5.35V | - | - | - | - | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
MPX4400APSENSOR 58.02PSIA |
0 |
|
- |
- | - | Tray | Obsolete | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | - | ±1.5% | 4.85V ~ 5.35V | - | - | - | - | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | - | - |
|
26PCBFD2GSENSOR 5PSIC .05V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | - | No Port | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
ASDXACX030PA7A5SENSOR 30PSIA 0.09" 12BIT |
0 |
|
- |
ASDX | 8-DIP Module | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
ASDXRRX015PDAA5SENSOR 15PSID 0.09" 4.5V |
0 |
|
Datasheet |
ASDX | 8-DIP Module | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
ASDXRRX030PGAA5SENSOR 30PSIG 0.09" 4.5V |
0 |
|
Datasheet |
ASDX | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
MPXHZ6116A6USENSOR 16.68PSIA 4.645V 8SSOP |
0 |
|
Datasheet |
MPXHZ6116A | 8-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Board Mount | Absolute | 2.9PSI ~ 16.68PSI (20kPa ~ 115kPa) | Analog Voltage | 0.399 V ~ 4.645 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
NSCDRRN015PDUNVSENSOR 15PSID 0.08" .155V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 155 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NSCDRRN030PGUNVSENSOR 30PSIG 0.08" .1035V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 103.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NSCDRRN100PDUNVSENSOR 100PSID 0.08" .1725V 8DIP |
0 |
|
Datasheet |
TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 172.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
KP236N6165XTMA2SENSOR 23.93PSIA 4.8V DSOF8 |
0 |
|
Datasheet |
- | 8-SMD Module | Tape & Reel (TR) | Discontinued at Digi-Key | Board Mount | Absolute | 8.7PSI ~ 23.93PSI (60kPa ~ 165kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±0.29PSI (±2kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | - |
|
1220A-005G-3SSENSOR 5PSIG 0.13" .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | Male - 0.13" (3.3mm), Tube | Barbless | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
SSCSNBN150PGAA5SENSOR 150PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSSNN015PAUNVSENSOR 15PSIA .075V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN030NDAA5SENSOR 1.08PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.08PSI (±7.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±12.64PSI (±87.15kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
MPL3115A2SENSOR 15.95PSIA 24BIT 8LGA |
0 |
|
Datasheet |
- | 8-TLGA | Tray | Obsolete | Board Mount | Absolute | 7.25PSI ~ 15.95PSI (50kPa ~ 110kPa) | I2C | 24 b | ±0.058PSI (±0.4kPa) | 1.95V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 72.52PSI (500kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-LGA (3x5) |
|
136PC15A2LSENSOR 15PSIA 0.27" |
0 |
|
- |
- | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | -40 mV ~ 0 mV | ±0.25% | 16V | Male - 0.27" (6.91mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

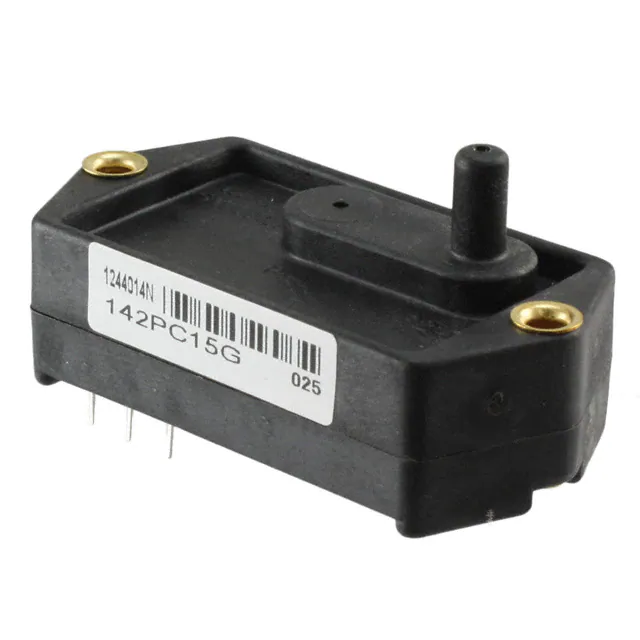

142PC15GSENSOR 15PSIG 0.2" 6V |
0 |
|
Datasheet |
140PC | 3-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 1 V ~ 6 V | ±0.75% | 7V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
