Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

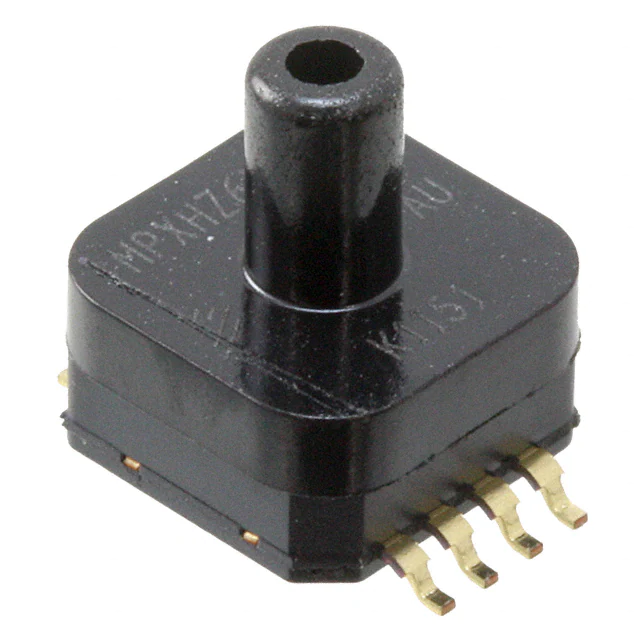

MPXHZ6130AC6USENSOR 18.85PSIA 0.13" 4.8V SSOP |
0 |
|
Datasheet |
MPXHZ6130A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 18.85PSI (15kPa ~ 130kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXAZ4250AC6T1SENSOR 36.26PSIA 0.13" 4.9V |
0 |
|
Datasheet |
MPXAZ4250A | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPVZ5004GC6USENSOR 0.57PSIG 0.13" 4.9V |
0 |
|
Datasheet |
MPVZ5004G | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | - |
|
26PCBFB2GSENSOR 5PSIC 0.18" .05V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
26PCCFA3GSENSOR 15PSIC 0.2" 0.1V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
26PCCFJ6DSENSOR 15PSID 0.07" 0.1V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.07" (1.78mm) Tube | Needle | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SCC05DD4SENSOR 5PSID 0.09" .065V |
0 |
|
Datasheet |
SCC | 6-DIP Module | Tray | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 25 mV ~ 65 mV | ±0.5% | - | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SCC05DNSENSOR 5PSID 0.19" .065V |
0 |
|
Datasheet |
SCC | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 25 mV ~ 65 mV | ±0.5% | - | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SCC15DSENSOR 15PSID .095V |
0 |
|
Datasheet |
SCC | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.5% | - | - | No Port | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SCC15DD4SENSOR 15PSID 0.09" .095V |
0 |
|
Datasheet |
SCC | 6-DIP Module | Tray | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.5% | - | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SCC15GD2SENSOR 15PSIG 0.11" .095V |
0 |
|
Datasheet |
SCC | 6-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.5% | - | Male - 0.11" (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SCC30DSENSOR 30PSID .15V |
0 |
|
Datasheet |
SCC | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | ±0.5% | - | - | No Port | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SDX15A2-ASENSOR 15PSIA 0.11" .09V |
0 |
|
Datasheet |
SDX | 6-DIP Module | Tray | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.25% | 20V | Male - 0.11" (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX100DNSENSOR 100PSID 0.19" .15V |
0 |
|
Datasheet |
- | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | - | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX7030DSENSOR 30PSID .11V |
0 |
|
- |
SX7 | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX7100DSENSOR 100PSID .15V |
0 |
|
- |
SX7 | 4-SIP Module | Tray | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | - | No Port | - | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
24PCAFB6GSENSOR 1PSIG 0.19" .045V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Gauge | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | - | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
XPC05DTCSENSOR 5PSID 0.19" .06V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | - | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1220A-005G-3NSENSOR 5PSIG .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | - | No Port | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

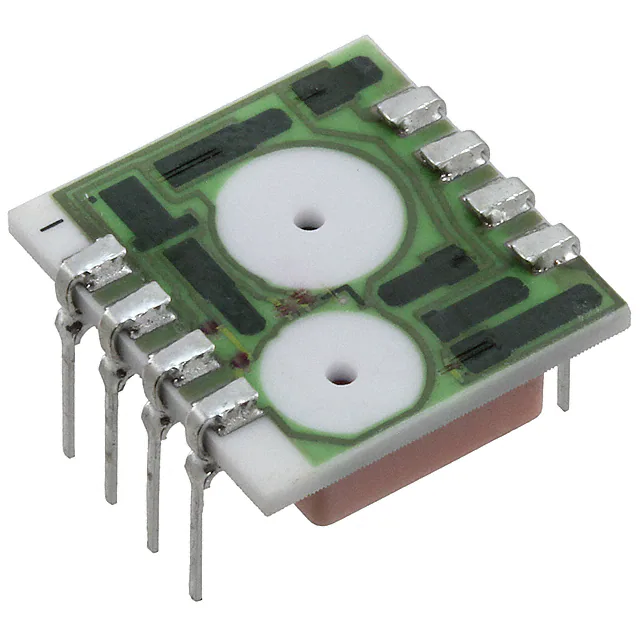

1220A-100G-3NSENSOR 100PSIG .05V |
0 |
|
Datasheet |
- | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | - | No Port | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
