Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX2202ASENSOR 29.01PSIA .04V |
0 |
|
Datasheet |
MPX2202 | 4-SIP Module | Tray | Obsolete | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPX4200ASENSOR 29.01PSIA 4.9V 6PIN |
0 |
|
Datasheet |
MPX4200A | 6-SIP Module | Tray | Obsolete | Board Mount | Absolute | 2.9PSI ~ 29.01PSI (20kPa ~ 200kPa) | Analog Voltage | 0.3 V ~ 4.9 V | - | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPXM12GSSENSOR 1.45PSIG 0.12" .055V MPAK |
0 |
|
Datasheet |
MPX12 | 5-SMD Module, Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (3V) | ±5% | 3V ~ 6V | Male - 0.12" (2.97mm) Tube | Barbless | - | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
|
MPXM12GST1SENSOR 1.45PSIG 0.12" .055V MPAK |
0 |
|
Datasheet |
MPX12 | 5-SMD Module, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (3V) | ±5% | 3V ~ 6V | Male - 0.12" (2.97mm) Tube | Barbless | - | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
MPXV5050GC6USENSOR 7.25PSIG 0.13" 4.7V |
0 |
|
Datasheet |
MPXV5050 | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPXV7007DPT1SENSOR 1.02PSID 0.13" 4.5V 8SOP |
0 |
|
- |
MPXV7007 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tape & Reel (TR) | Obsolete | Board Mount | Differential | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXV7025DPT1SENSOR 3.63PSID 0.13" 4.7V 8SOP |
0 |
|
Datasheet |
MPXV7025 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tape & Reel (TR) | Obsolete | Board Mount | Differential | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
|
1230-015A-1SSENSOR 15PSIA 0.13" 0.1V |
0 |
|
Datasheet |
1230 | 8-DIP Module | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
SSCDRRN030PDAA5SENSOR 30PSID 0.08" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDANN001BG2A5SENSOR 14.5PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDANN150PAAB5SENSOR 150PSIA 0.19" 4.75V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCSAAN600MDAA5SENSOR 8.7PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±8.7PSI (±60kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSHHN001PDAA5SENSOR 1PSID 0.16" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSNNN600MAAA3SENSOR 8.7PSIA 2.97V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 8.7PSI (60kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSRNN100MGAA3SENSOR 1.45PSIG 0.08" 2.97V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | ±1.45PSI (±10kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.92mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

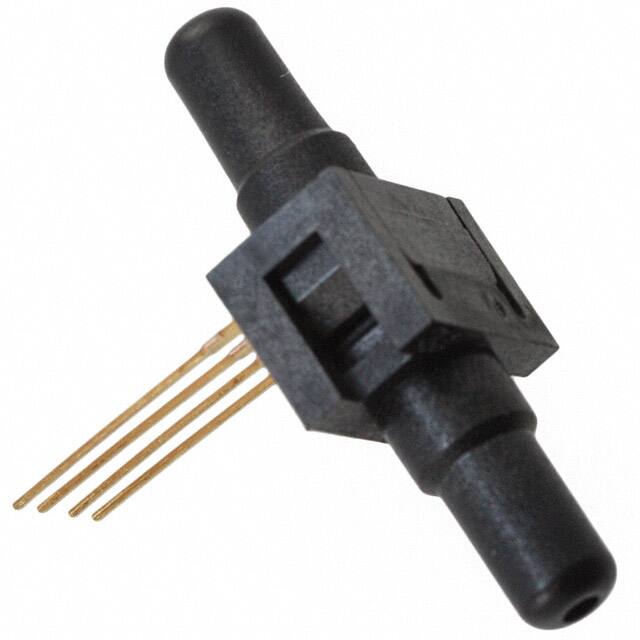

26PCBFA3DSENSOR 5PSID 0.2" .05V |
0 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
CPCL10GFHSENSOR 0.36PSIG 0.15" .02V |
0 |
|
Datasheet |
CPCL | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
MPL115A1SENSOR 16.68PSIA 10BIT 8LGA |
0 |
|
Datasheet |
- | 8-TLGA | Tray | Obsolete | Board Mount | Absolute | 7.25PSI ~ 16.68PSI (50kPa ~ 115kPa) | SPI | 10 b | ±0.145PSI (±1kPa) | 2.375V ~ 5.5V | - | No Port | Shutdown Mode, Standby Mode | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 105°C | - | - | Surface Mount | 8-LGA (5x3) |
|
|
MPL115A2SENSOR 16.68PSIA 10BIT 8LGA |
0 |
|
Datasheet |
- | 8-TLGA | Tray | Obsolete | Board Mount | Absolute | 7.25PSI ~ 16.68PSI (50kPa ~ 115kPa) | I2C | 10 b | ±0.145PSI (±1kPa) | 2.375V ~ 5.5V | - | No Port | Shutdown Mode, Standby Mode | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 105°C | - | - | Surface Mount | 8-LGA (5x3) |
|
|
MPXC12DT1SENSOR 1.45PSID .065V CHIP PAK |
0 |
|
Datasheet |
MPX12 | 4-SSIP Module | Tape & Reel (TR) | Obsolete | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (3V) | ±10% | 3V ~ 6V | - | No Port | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
