Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCSNBN030PGAA5SENSOR 30PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
19C300PV2KSENSOR 300PSI 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Obsolete | - | Vacuum | -300PSI (-2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | -900PSI (-6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C300PG2LSENSOR 300PSIG 0.1V |
51 |
|
- |
19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
19C030PV2KSENSOR 30PSI 0.1V |
0 |
|
Datasheet |
19 mm | Cylinder | Bulk | Obsolete | Board Mount | Vacuum | -30PSI (-206.84kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | -90PSI (-620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
XPCL10DFHSENSOR 0.36PSID 0.19" .02V |
0 |
|
Datasheet |
XPCL | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | - | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
XPC01DTCSENSOR 1PSID 0.19" .018V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPCL04DCSENSOR 0.15PSID .025V |
0 |
|
Datasheet |
XPCL | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC01GFSHSENSOR 1PSIG 0.19" .018V |
0 |
|
Datasheet |
XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | - | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
76575-B00000060-01SWITCH 7PSI SPST-NO 1/8"NPT |
33 |
|
- |
5000 | Cylinder, Threaded | Bulk | Obsolete | - | Switch | 3.1PSI ~ 7PSI (21.37kPa ~ 48.26kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
NSCSHHN015PAUNVSENSOR 15PSIA 0.16" .075V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Discontinued at Digi-Key | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NPH-8-030GHSENSOR 4.35PSIG 0.19" 0.1V TO8 |
60 |
|
Datasheet |
NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Vented Gauge | 4.35PSI (30kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±1.5% | - | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 21.76PSI (150kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|

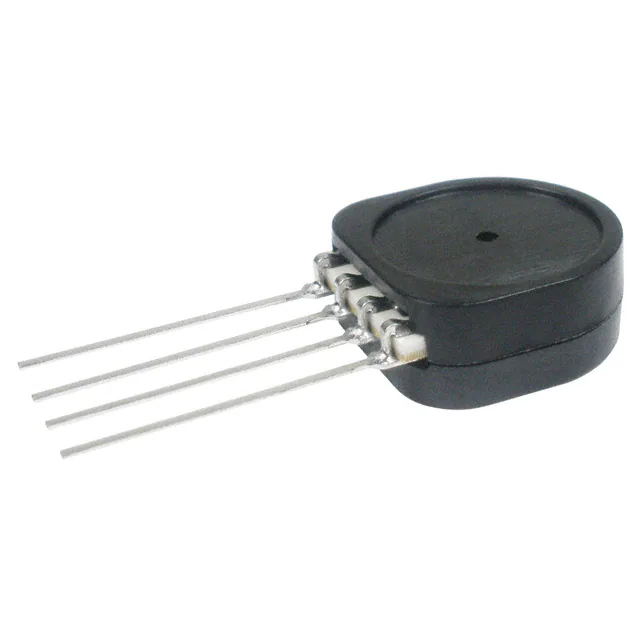

HSCSSNN015PG2A5SENSOR 15PSIG 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCMNNN015PA2A3SENSOR 15PSIA 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
TBFLPNS150PGUCVSENSOR 150PSIG .0305V 6SMD |
0 |
|
Datasheet |
TBF | 6-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 30.5mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|

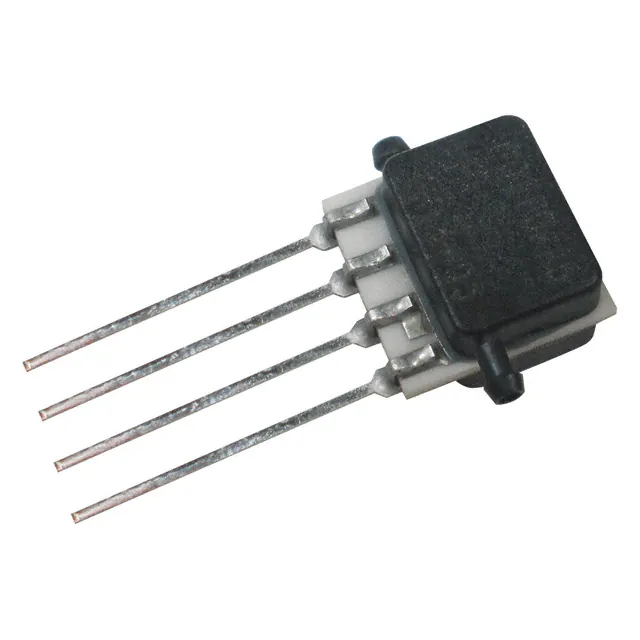

SSCSDRN002ND2A5SENSOR 0.07PSID 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN001NDAA3SENSOR 0.04PSID 0.19" 2.97V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
82CV-015G-RSENSOR 15PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.1% | 10V ~ 14V | - | No Port | Temperature Compensated | Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
ADP5151SENSOR 29.01PSIG 0.12" 4.5V |
89 |
|
Datasheet |
PS-A | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP5120SENSOR 3.63PSIG 0.12" 4.5V |
53 |
|
Datasheet |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vented Gauge | 3.63PSI (25kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 7.25PSI (50kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
PX3AN1BH050PAAAXSENSOR 50PSIA 1/4"NPT 4.5V |
0 |
|
Datasheet |
PX3 | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 250PSI (1723.69kPa) | -30°C ~ 125°C | - | - | - | - |
