Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPS33WTRSENSOR 18.27PSIA 24BIT 10CCLGA |
9,686 |
|
Datasheet |
- | LGA | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) | I2C, SPI | 24 b | ±0.015PSI (±0.1kPa) | 1.7V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 290.08PSI (2000kPa) | -40°C ~ 85°C | - | - | Surface Mount | 10-CCLGA (3.3x3.3) |
|
XGZP6899A001KPDPNPressure Sensor 0.145PSI(-1~1kPa |
482 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | -0.144PSI ~ 0.144PSI (-1.0kPa ~ 1.0kPa) | Analog | 0.5 V ~ 4.5 V | ±2.5% | 5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Surface Mount (SMD,SMT) | 0.73PSI (5kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
XGZP6899A010KPDPNPressure Sensor 1.45PSI(-10~10kP |
461 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | -1.45PSI ~ 1.45PSI (-10kPa ~ 10kPa) | Analog | 0.5 V ~ 4.5 V | ±2.5% | 5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Surface Mount (SMD,SMT) | 3.63PSI (25kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
XGZP6899A050KPDG33Pressure Sensor 7.25PSI(0~50kPa) |
297 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | 7.25PSI (50kPa) | Analog | 0.2 V ~ 2.7 V | ±2% | 3.3V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Surface Mount (SMD,SMT) | 18.07PSI (124.59kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
XGZP6899D005HPDPNPressure Sensor 0.072PSI(-0.5~0. |
288 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | -0.072PSI ~ 0.072PSI (-0.49kPa ~ 0.49kPa) | Digital - I2C | I2C | ±2.5% | 2.5V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Digital Output, Temperature Compensated | Surface Mount (SMD,SMT) | 0.36PSI (2.5kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
XGZP6899D010KPDGPressure Sensor 1.45PSI(0~10kPa) |
270 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | 1.45PSI (10kPa) | Digital - I2C | I2C | ±2.5% | 2.5V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Digital Output, Temperature Compensated | Surface Mount (SMD,SMT) | 3.63PSI (25kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|
|
XGZP6899D200KPDGPressure Sensor 29PSI(0~200kPa) |
194 |
|
Datasheet |
- | 8-SMD, Gull Wing, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | 29.01PSI (200kPa) | Digital - I2C | I2C | ±2% | 2.5V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Digital Output, Temperature Compensated | Surface Mount (SMD,SMT) | 72.52PSI (500kPa) | -20°C ~ 100°C | - | - | Surface Mount | 8-SMT |
|

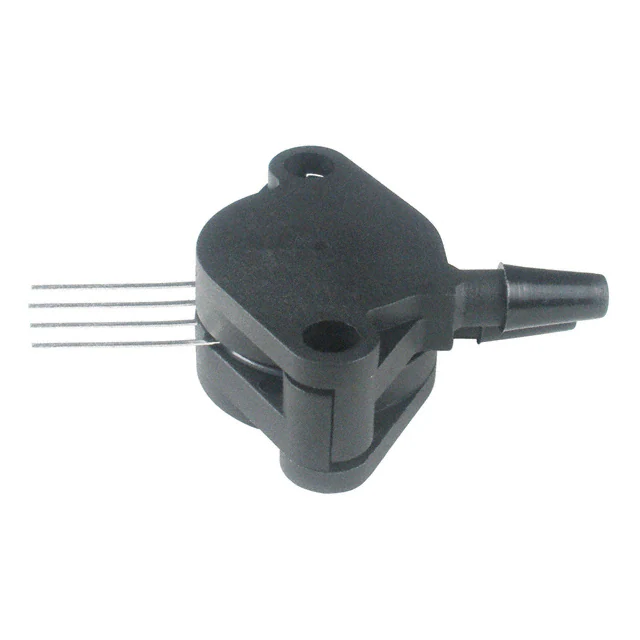

SSCSHHN100MD2A5SENSOR 1.45PSID 0.16" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.45PSI (±10kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
ABPLLNV600MG0S3SENSOR 8.7PSIG 0.11" 12BIT 6SMD |
143 |
|
- |
ABP | 6-SMD Module, No Lead | Tray | Active | Medical Ventilation | Vented Gauge | 8.7PSI (60kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.11" (2.67mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
|
HPX005GDSENSOR 5.8PSIG 0.1" .04V |
0 |
|
Datasheet |
HPX | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (3V) | ±0.5% | 3V ~ 10V | Male - 0.1" (2.49mm) Tube | Barbless | - | PC Pin | 15PSI (103.42kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
TBPLPNN100PGUCVSENSOR 100PSIG 0.26" .0255V 6SMT |
0 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 25.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26" (6.5mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
NBPLLNN015PAUNVSENSOR 15PSIA 0.13" .075V |
0 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 75 mV (5V) | ±0.25% | 1.8V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
XGZP6895D200KPDGPressure Sensor 29PSI(0~200kPa) |
494 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XGZP6895A010KPDGPressure Sensor 1.45PSI(0~10kPa) |
297 |
|
Datasheet |
- | 6-SIP Module | Bulk | Active | Board Mount | Differential | 1.45PSI (10kPa) | Analog | 0.2 V ~ 4.7 V | ±2.5% | 5V | Male - 0.19" (4.71mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Surface Mount (SMD,SMT) | 3.63PSI (25kPa) | -30°C ~ 100°C | - | - | Chassis Mount | 6-SIP |
|
TBPLANN030PGUCVSENSOR 30PSIG 0.11" .0275V 6SMT |
0 |
|
Datasheet |
TBP | 6-SMD, No Lead, Top Port | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 115PSI (792.9kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
|
7291-BCE-S-001-0001KPA GAUGE SENSOR |
0 |
|
Datasheet |
SM7000 | 16-SOIC Module, Dual Top Ports | Bulk | Active | Board Mount | Gauge | 0.29PSI (2kPa) | I2C | 16 b | ±1% | 3V ~ 3.6V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.5PSI (10.34kPa) | -40°C ~ 105°C | - | - | Surface Mount | 16-SOIC |
|
|
ABPDRNT150PGAA3ABPDRNT150PGAA3 |
450 |
|
- |
- | - | Bulk | Active | Medical Ventilation | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPRSS0001PG00001CSENSOR 1PSIG 0.17" 24BIT |
0 |
|
Datasheet |
MPR | 10-SMD Module | Tape & Reel (TR) | Active | Board Mount | Gauge | 1PSI (6.89kPa) | I2C | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.17" (4.2mm) Tube | Barbless | Amplified Output, Temperature Compensated | - | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
MPVZ5004G6T1SENSOR 0.57PSIG 4.9V |
478 |
|
Datasheet |
MPVZ5004G | 8-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | - |
|
|
20018051-50MS5849-30BA36 CL RESISTANT LS T& |
2,066 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Board Mount | Absolute | 435.11PSI (3000kPa) | I2C, SPI | 24 b | ±0.73PSI (±5kPa) | 1.5V ~ 3.6V | Male - 0.10" (2.64mm) Tube | Barbed | Temperature Compensated | - | 725PSI (5000kPa) | -40°C ~ 110°C | - | - | Surface Mount | 8-SMD |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
