Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82CV-300G-RSENSOR 300PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.1% | 10V ~ 14V | - | No Port | Temperature Compensated | Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
NSCSDRN001NDUNVSENSOR 0.04PSID 0.19" .0785V |
0 |
|
- |
TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Wheatstone Bridge | 0 mV ~ 78.5 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | - | PC Pin | 9.76PSI (67.28kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
82CV-005G-RSENSOR 5PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 10V ~ 14V | - | No Port | Temperature Compensated | Connector | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
P-3000S-501G-10SENSOR 7.11PSIG 0.1V |
28 |
|
Datasheet |
P-3000S | 5-DIP Module, Top Port | Bulk | Active | Board Mount | Gauge | 7.11PSI (49kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.1% | - | - | Barbless | Temperature Compensated | PC Pin | 14.23PSI (98.1kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP5250SENSOR 29.01PSIG 0.12" 4.5V |
85 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|
|
ADP5210SENSOR 14.5PSIG 0.12" 4.5V |
30 |
|
Datasheet |
PS-A | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | -14.5PSI (-100kPa) | Wheatstone Bridge | 0 V ~ 4.5 V | ±1.5% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -29.01PSI (-200kPa) | -10°C ~ 60°C | - | - | Surface Mount | - |
|

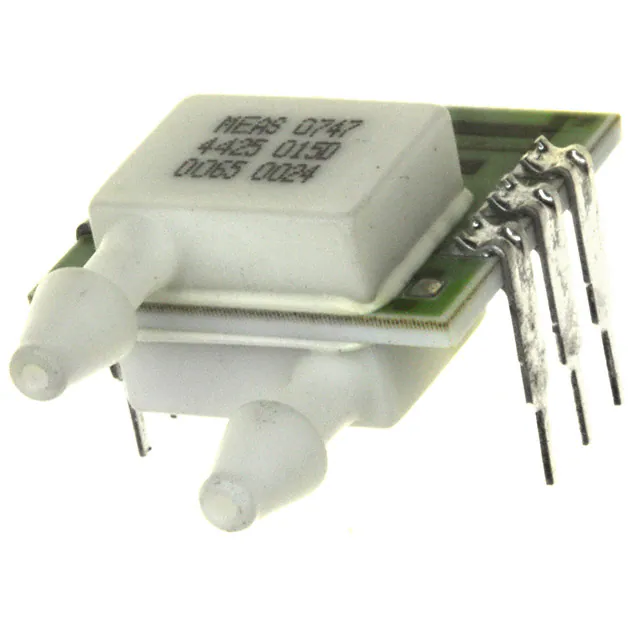

4425-015DSENSOR 15PSID 0.13" .09V |
0 |
|
Datasheet |
4425 | 6-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.25% | 12V ~ 20V | Male - 0.13" (3.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

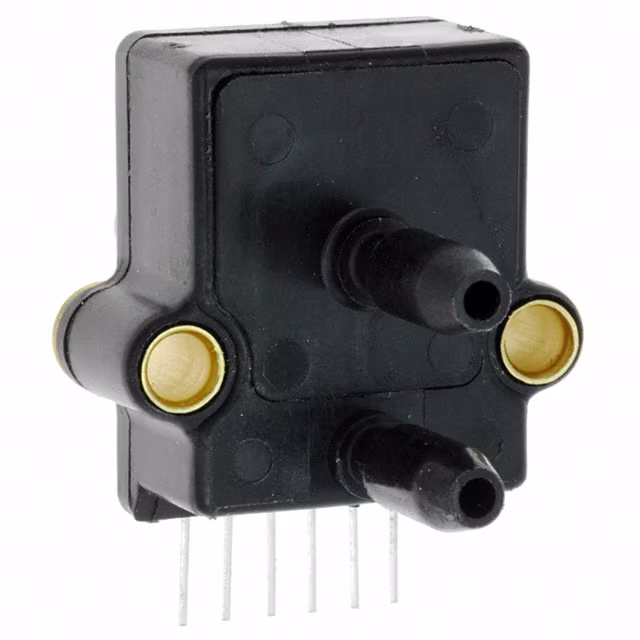

SCX100DNSENSOR 100PSID 0.19" 0.1V |
132 |
|
Datasheet |
SCX | 6-SIP Module | Bulk | Active | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±1% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
HSCDRRD002NDSA3HSC, 5MBAR, DIFF, DIP, DP, SPI, |
299 |
|
- |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | SPI | - | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pins | - | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
17-030ASENSOR 30PSIA 0.19" 0.1V TO8 |
511 |
|
Datasheet |
17 | TO-8 Style, 12 Leads | Tube | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
SSCMRRN010NDAA5SENSOR 0.36PSID 0.08" 4.5V 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±12.64PSI (±87.15kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
19C050PV3KSENSOR 50PSI 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Obsolete | - | Vacuum | -50PSI (-344.74kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | -150PSI (-1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C300PG3KSENSOR 300PSIG 0.1V |
96 |
|
- |
19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
33A-015DSENS 15PSID 0.19/0.13" 0.1V TO8 |
0 |
|
Datasheet |
- | TO-8 Style, 12 Leads | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | Male - 0.19" (4.78mm) Tube, Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
PVC4000EVKSAESENSOR 14.7PSI 1/4" |
93 |
|
Datasheet |
- | Cylinder, Threaded | Bag | Active | Industrial Automation | Vacuum | 14.7PSI (101.33kPa) | Digital - I2C | - | ±10% | 2.7V ~ 5V | Male - 1/4" (6.35mm) SAE Flare | Threaded | Temperature Compensated | Wire Leads with Connector | 450PSI (3102.64kPa) | -25°C ~ 85°C | - | - | - | - |
|
P993-10SENSOR 0.36PSID 4V |
0 |
|
Datasheet |
- | 3-SIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
P992-5-ASENSOR 0.18PSI 4V |
10 |
|
Datasheet |
- | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
P992-2-BSENSOR 0.07PSI 4V |
2 |
|
Datasheet |
- | 3-SIP Module | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
P992-5-BSENSOR 0.18PSI 4V |
0 |
|
Datasheet |
- | 3-SIP Module | Bulk | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
HSCDRRN001NDSA5SENSOR 0.04PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | SPI | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
