Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABPMRNN060KGSA3SENSOR 8.7PSIG 0.08" 12BIT 6SMD |
0 |
|
Datasheet |
ABP | 6-SMD Module | Bulk | Obsolete | Medical Ventilation | Vented Gauge | 8.7PSI (60kPa) | SPI | 12b | ±0.25% | 3.3V | Male - 0.08" (2.13mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
6295-BCM-T-040-00040CMH2O GAUGE SENSOR |
248 |
|
Datasheet |
SM6000 | 16-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Gauge | 0.79PSI (5.45kPa) | I2C | 16 b | ±1% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 4.5PSI (31.03kPa) | -40°C ~ 105°C | - | - | Surface Mount | 16-SOIC |
|
|
ABPLNNT006KGSA3TSENSOR PRESSURE 6 KPA SMT |
2,879 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D6F-PH0505AMD4SENSOR 0.01PSID 0.16" 12BIT 4SIP |
191 |
|
Datasheet |
D6F-PH | 4-SIP, Dual Top Ports | Tray | Obsolete | - | Differential | -0.01PSI ~ 0.01PSI (-0.05kPa ~ 0.05kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.16" (4mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
D6F-PH0025AMD2SENSOR 0.04PSID 0.16" 12BIT 4SIP |
109 |
|
Datasheet |
D6F-PH | 4-SIP, Dual Top Ports | Tray | Obsolete | - | Differential | 0.04PSI (0.25kPa) | I2C | 12 b | ±3% | 2.3V ~ 3.6V | Male - 0.16" (4mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 1.45PSI (10kPa) | -20°C ~ 80°C | - | - | Through Hole | 4-SIP |
|
24PCBFJ2GSENSOR 5PSIC 0.07" .115V |
0 |
|
Datasheet |
24PC | 4-DIP Module | Bulk | Obsolete | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 115 mV (10V) | ±1% | 10V ~ 12V | Male - 0.07" (1.78mm) Tube | Needle | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
NPA-700M-015GSENSOR 15PSIG 0.12" 14BIT 14SOIC |
800 |
|
Datasheet |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C | 14 b | ±1.5% | 2.7V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|

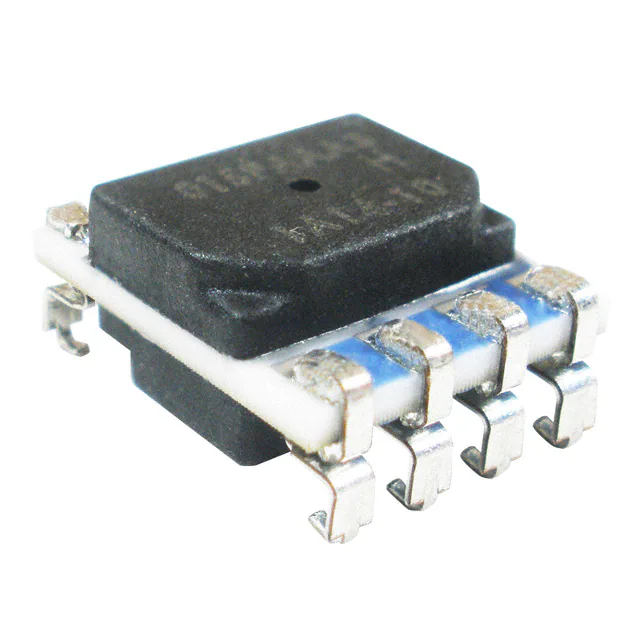

HSCMNNN1.6BAAA3SENSOR 23.21PSIA 2.97V 8SMD |
227 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Absolute | 23.21PSI (160kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
TBFLPNS100PGUCVSENSOR 100PSIG .0305V 6SMD |
21 |
|
Datasheet |
TBF | 6-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 30.5mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|
MPXA6115A6T1SENSOR 16.68PSIA 4.7V |
600 |
|
Datasheet |
MPXA6115A | 8-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
1451-030G-TSENSOR 30PSIG 0.09" .06V |
1 |
|
Datasheet |
- | 10-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | Male - 0.09" (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

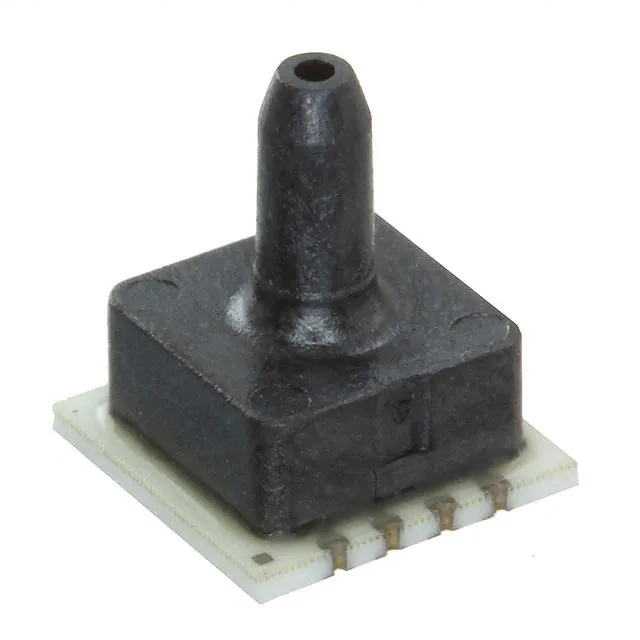

1471-015A-TSENSOR 15PSIA 0.09" .065V |
2 |
|
Datasheet |
- | 8-SMD, No Lead, Top Port | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (5V) | ±0.25% | 5V ~ 12V | Male - 0.09" (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

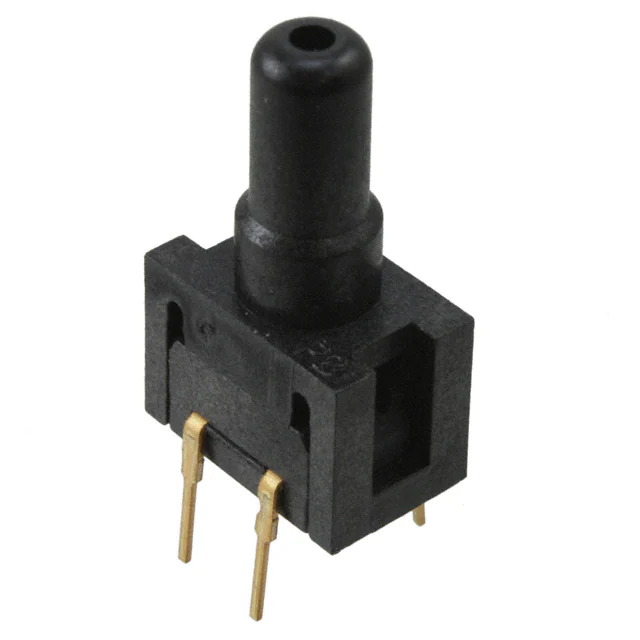

24PCAFA2GSENSOR 1PSIC 0.25" .045V |
0 |
|
Datasheet |
24PC | 4-DIP Module | Bulk | Obsolete | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.4mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SM9233-BCE-S-250-002SENS 0.04PSIG 0.12" 16BIT 16SOIC |
745 |
|
Datasheet |
SM9233 | 16-SOIC Module, Dual Top Ports | Box | Active | - | Gauge | 0.04PSI (0.25kPa) | I2C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.02PSI (7kPa) | -20°C ~ 85°C | - | - | Surface Mount | SOIC-16 Dual |
|
SM9235-BBE-S-300-000SENSOR 0.04PSIG 0.12" 16BIT SOIC |
600 |
|
Datasheet |
SM9233 | 16-SOIC (0.295", 7.50mm Width) | Box | Active | - | Gauge | 0.044PSI (0.3kPa) | I2C | 16 b | ±2.5% | 3V ~ 5.5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | - | 1.02PSI (7kPa) | -20°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
|
9236-BCE-T-600-000600PA DIFF. DIGITAL PRESSURE SEN |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KPY53-AKSENSOR 23.21PSIA 0.2" .07V TO8-5 |
240 |
|
Datasheet |
- | TO-8 Style, 8 Leads | Bulk | Active | Board Mount | Absolute | 23.21PSI (160kPa) | Wheatstone Bridge | 0 mV ~ 70 mV | - | 12V | Male - 0.2" (5.1mm) Tube | Barbless | - | PC Pins | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8-5 |
|
|
ABPMANV001PG2A3BASIC PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ABPMANN030PG2A3SENSOR 30PSIG 0.08" 12BIT 6SMD |
0 |
|
Datasheet |
ABP | 6-SMD Module | Bulk | Active | Medical Ventilation | Vented Gauge | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3.3V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
|
ABPMANN060KGSA3SENSOR 8.7PSIG 0.08" 12BIT 6SMD |
0 |
|
- |
ABP | 6-SMD Module | Bulk | Active | Medical Ventilation | Vented Gauge | 8.7PSI (60kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (2.13mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
