Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPC-1210-10WG-1-NSENSOR 0.36PSIG 0.13" .05V |
0 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-10WG-3-LSENSOR 0.36PSIG 0.13" .05V |
0 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-10WD-3-LSENSOR 0.36PSID 0.13" .05V |
0 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-10WG-3-NSENSOR 0.36PSIG 0.13" .05V |
0 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-10WG-1-SSENSOR 0.36PSIG 0.13" .05V |
0 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
B58611K1100A003SENSOR 1.45PSIG 0.19" .05V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±2% | 10V | Male - 0.19" (4.78mm) Tube | Barbless | - | PC Pin | 7.25PSI (50kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|
|
B58611K1100A005SENSOR 5.8PSIG 0.19" .12V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - 0.19" (4.78mm) Tube | Barbless | - | PC Pin | 3.63PSI (25kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|

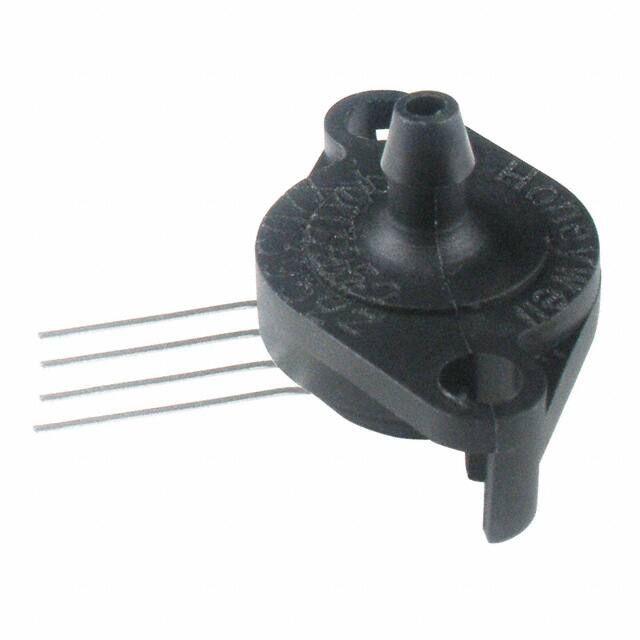

SSCSFNN001PGAA5SENSOR 1PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

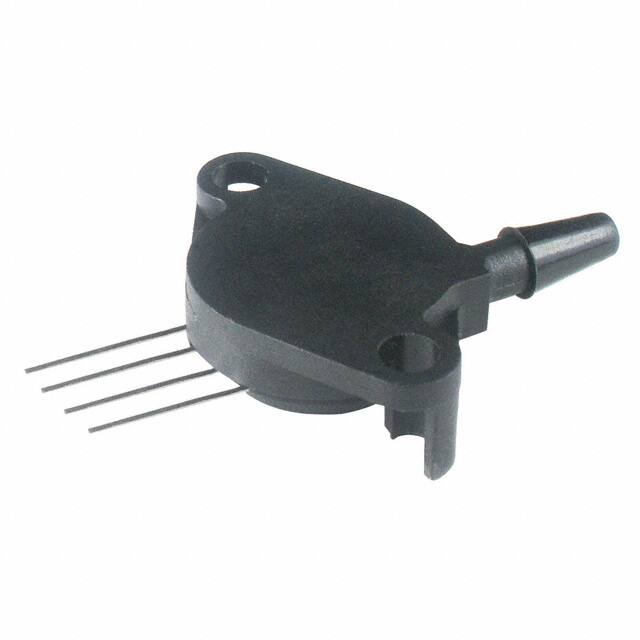

SSCSHNN015PA2A3SENSOR 15PSIA 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

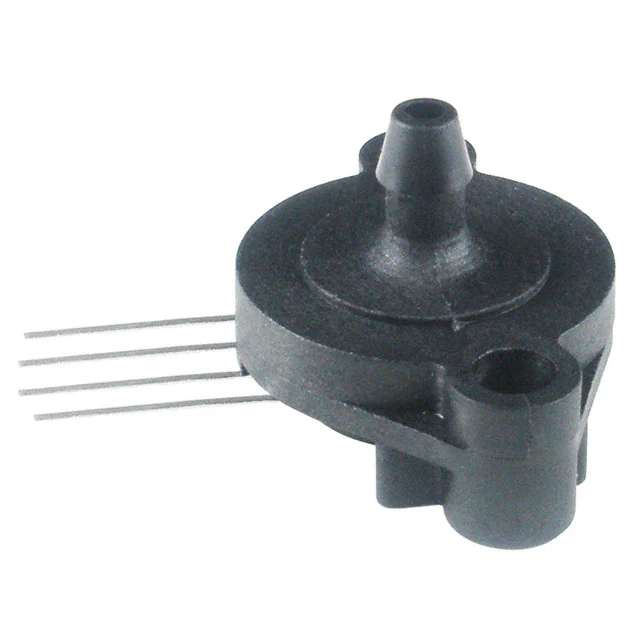

SSCSGNN030PAAA5SENSOR 30PSIA 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSGNN150PAAA5SENSOR 150PSIA 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDRRN600MDAA3SENSOR 8.7PSID 0.08" 2.97V 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±8.7PSI (±60kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDANN060PGSA5SENSOR 60PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ND210-SM02-CSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Strip | Active | Industrial Automation | Differential | 0.01PSI ~ 0.36PSI (0.06kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.05% | 3.5V ~ 2.8V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
TSCSHHN015PDUCVSENSOR 15PSID 0.16" .0525V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
B58611K1500A012SENSOR 14.5PSIG M5 .12V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | 43.51PSI (300kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|
SSCMRRN001PDAA5SENSOR 1PSID 0.08" 4.5V 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
B58611K1500A009SENSOR 1.45PSIG M5 .05V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | 7.25PSI (50kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|
|
B58611K1500A011SENSOR 5.8PSIG M5 .12V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | 543.89PSI (3750kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|
|
B58611K1500A014SENSOR 87.02PSIG M5 .12V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 87.02PSI (600kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | 543.89PSI (3750kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
