Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10 INCH-G-CGRADE-MINISENSOR 0.36PSIG .02V |
0 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 16V | - | No Port | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
D1000EPressure/Vaccum Switch |
5 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

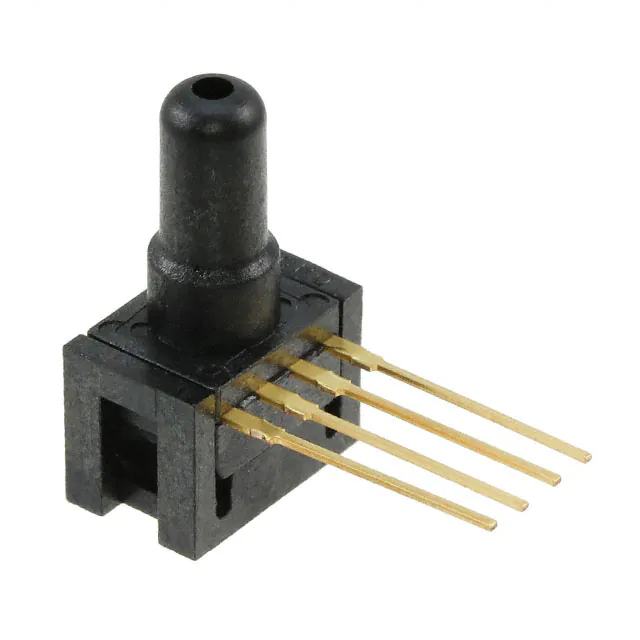

24PCCFA6ASENSOR 15PSIA 0.2" |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | 2PSI ~ 15PSI (13.79kPa ~ 103.42kPa) | Wheatstone Bridge | -200 mV ~ 0 mV (10V) | ±2% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | - | -40°C ~ 85°C | - | - | Through Hole | - |
|
B58611K1100A006SENSOR 14.5PSIG 0.19" .12V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - 0.19" (4.78mm) Tube | Barbless | - | PC Pin | 43.51PSI (300kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|
B58611K1100A009SENSOR 145.04PSIG 0.19" .12V |
0 |
|
Datasheet |
AK2 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - 0.19" (4.78mm) Tube | Barbless | - | PC Pin | 3.63PSI (25kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|
SSCDRRN010NGAA5SENSOR 0.36PSIG 0.08" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10.84PSI (74.75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDANN025MDSA3SENS 362.59PSID 0.19" 12BIT DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | 362.59PSI (2500kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
19C200PA5KSENSOR 200PSIA 1/4"NPT 0.1V |
0 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
24PCFFD6GSENSOR 100PSIC .225V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCSNBN015PGAB5SENSOR 15PSIG 0.19" 4.75V 4SIP |
3 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSMNN100PGAA5SENSOR 100PSIG 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN015PDAA5SENSOR 15PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSMNN001BGAF5SENSOR 14.5PSIG 4.7V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSMNN010BGAA5SENSOR 145.04PSIG 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN005PGAB5SENSOR 5PSIG 0.19" 4.75V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN015PAAC5SENSOR 15PSIA 0.19" 4.25V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN030PGAB5SENSOR 30PSIG 0.19" 4.75V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN150PGAB5SENSOR 150PSIG 0.19" 4.75V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN100PGAA5SENSOR 100PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSNBN010BGAA5SENSOR 145.04PSIG 0.19" 4.5V SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
